Product Description

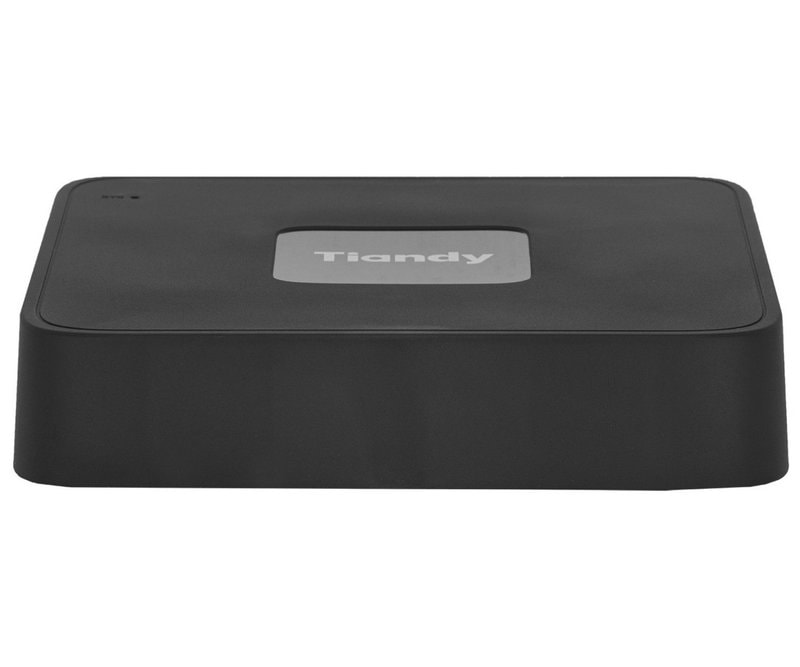

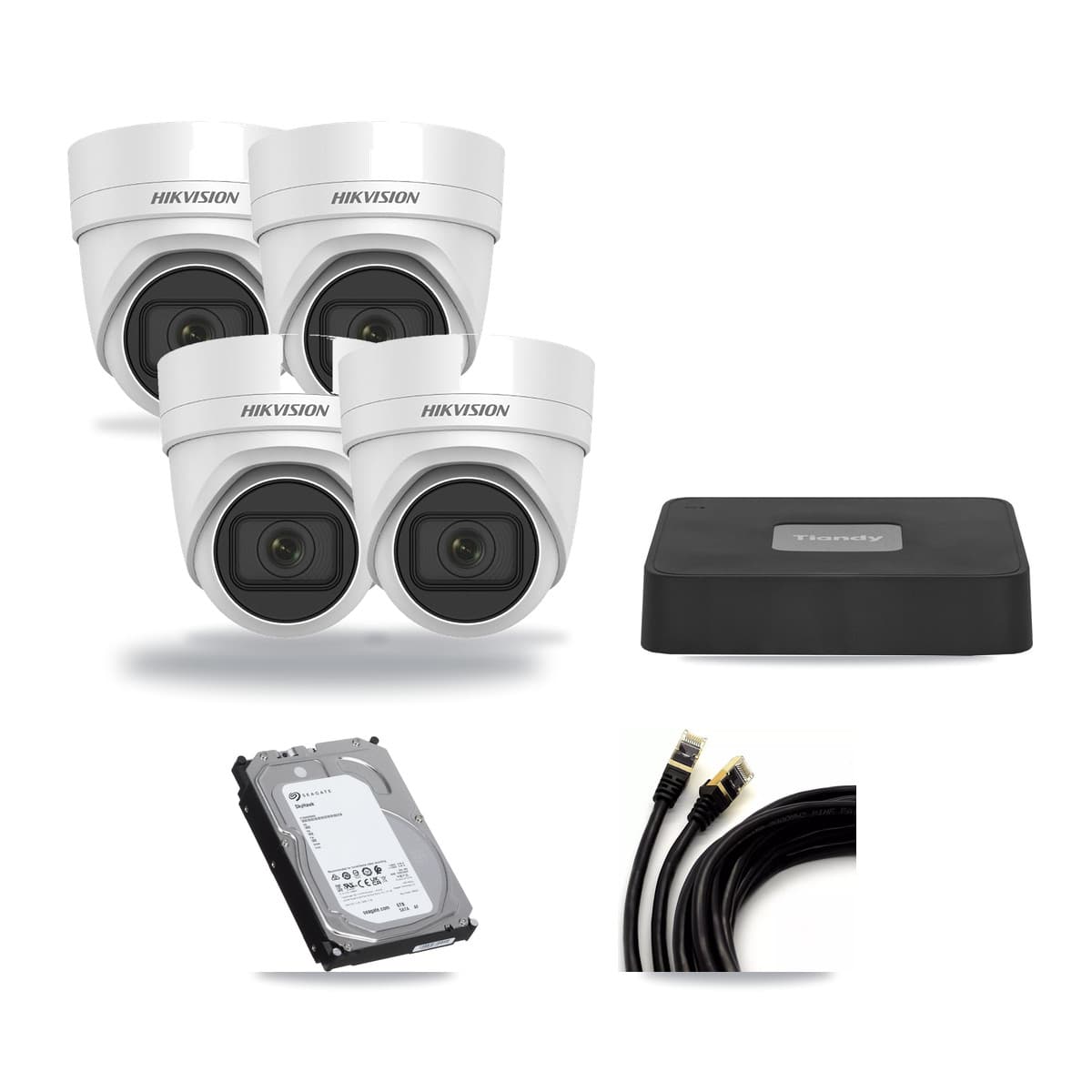

The Tiandy TC-R3104 is a 4-channel PoE NVR built for straightforward IP camera deployments where a single-cable install matters.
Key specs
- Channels: 4, max 6MP resolution per channel
- PoE: built-in 4-port PoE switch — power and data over one cable, no separate injectors
- Compression: S+265 / H.265 / S+264 / H.264
- Incoming bandwidth: 60 Mb/s
- Storage: 1x SATA HDD, up to 6TB
- Outputs: HDMI and VGA
- Remote access: Android/iOS apps and PC browser via port 3000, or cloud P2P
- Operating range: -10°C to 55°C
- Dimensions: 201 × 202 × 43 mm
Part of Tiandy's Analog Killer series, the TC-R3104 is built specifically for IP-based systems rather than hybrid analogue/IP use. The 60 Mb/s incoming bandwidth and H.265 compression give installers headroom for 4x 6MP streams without excessive HDD churn, while the single onboard HDD bay keeps the unit compact for cabinets and small comms rooms.
Intelligent video analytics are supported when the NVR is paired with compatible Tiandy cameras — worth checking against the camera model on spec before quoting a job. For distribution and integration work, the 4-port PoE budget and dual HDMI/VGA output cover most small-site requirements without extra switching hardware on site.
Specifications
- Resolution
- 6MP
- Channels
- 4
- Video Compression
- H.265
Technical Specifications
Frequently Asked Questions
How many PoE ports does the TC-R3104 have?
It has a built-in 4-port PoE switch, one per channel, so cameras get power and data over a single cable.
What is the maximum resolution supported per channel?
Up to 6MP per channel across all 4 channels.
What is the incoming bandwidth limit?
60 Mb/s incoming, which sets the practical ceiling when running multiple high-resolution streams simultaneously.
How much storage can the TC-R3104 take?
It supports 1 SATA hard drive up to 6TB capacity.
Does the TC-R3104 support video analytics?
Yes, intelligent video analytics are supported when paired with compatible Tiandy cameras.
