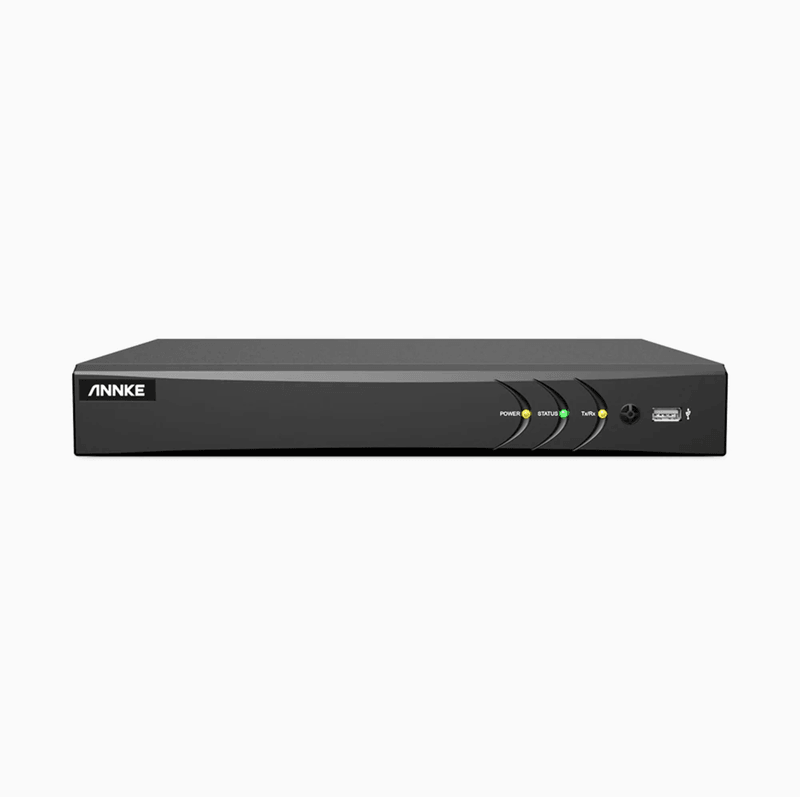

ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR
SKU: AN-DV4-8MP-D941BBCopied!
The ANNKE D941BB is a 4-channel hybrid (5-in-1) digital video recorder offering up to 8MP (4K) resolution for analog HD cameras. It supports multiple analog formats (TVI, AHD, CVI, CVBS) as well as IP camera input, ensuring flexibility and compatibility with existing systems. With efficient video compression (H.265+), smart motion detection, remote access features and solid build, it is suitable for home and small business surveillance.
In Stock
Ready to ship • 16 available
Product Description
Key Features
Supports up to 8MP (3840 × 2160) resolution for compatible analog cameras
4 analog camera inputs + capability to accept IP cameras (hybrid/5-in-1)
Multiple analog signal compatibility: TVI / AHD / CVI / CVBS
Video compression: H.265+ (and earlier H.265/H.264) for reduced storage requirements
Smart motion detection with human & vehicle detection to reduce false alarms
HDMI & VGA outputs for local monitoring and playback
Remote access via ANNKE Vision app / web / mobile device
Storage via SATA interface — supports at least 1TB, up to higher capacity HDDs (depending on setup)
12V DC power input
Technical Specifications
Specification Detail
Model D941BB
Channels 4 analog BNC inputs (5-in-1 with hybrid/IP capability)
Max Analog Resolution 8MP for analog / 4K (with supported formats)
Compression H.265+, H.265, H.264+ / H.264
Video Outputs HDMI & VGA
Motion Detection Human & Vehicle detection for analog channels
Remote Access Mobile app + network streaming
Storage Interface 1 × SATA (supports large HDDs, e.g. 1TB or more)
Power Supply 12V DC
Color / Housing Black
Size / Weight Typical DVR size; “4 Channel 4K 5-IN1 DVR” form factor — approx similar to other 4-channel ANNKE DVR units
Applications / Use Cases
Upgrading older CCTV systems to 4K / 8MP resolution without replacing all cameras
Small shops, homes, offices needing high definition recording and reliable detection
Locations where reducing false alarms (pets, shadows, etc.) is important
Situations where remote access (phone, tablet, PC) is needed to monitor security remotely
