What's in the box
Full parts list with quantities. Tap a line for its full spec.
6-camera kit · ~23 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
6 included cameras use 6 of the recorder’s 8 channels. 2 channels remain for expansion. Before adding cameras, check supported resolution, recording bandwidth and available power or PoE ports.
Recording storage
6TB storage is included. Estimated recording time: about 23 days with continuous H.265 recording. The estimate uses 2 Mbps per camera up to 2MP, 4 Mbps up to 5MP and 8 Mbps above 5MP, summed for mixed camera models. Actual retention depends on settings, scene activity and usable drive capacity; motion-only recording varies with activity.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
The recorder
1× XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua
Records every channel and runs the app
The cameras
6× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Footage storage
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Single-plug camera power
The cable
6× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Different cameras, a bigger drive or longer runs? Open this kit in the builder and swap any part — each change is re-checked against the rest, so you can't spec parts that don't work together.
Product Description

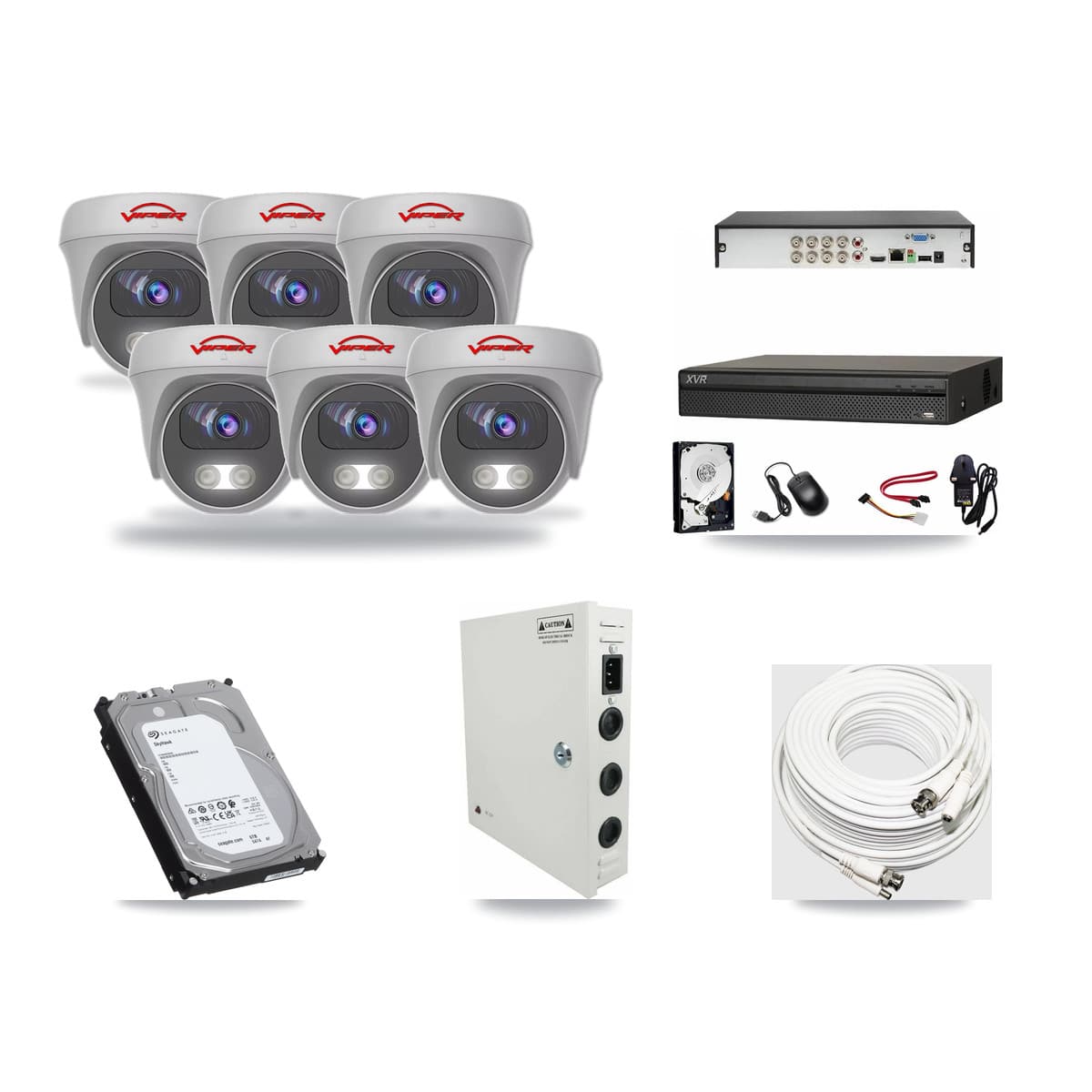

A complete 8-channel HD-over-coax CCTV kit built on the XVR-3108AD-4K + 6× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 6 cameras at 5MP — sized for a shop or small office. The included 6TB surveillance hard drive holds about 23 days of continuous recording — the estimate assumes recording all 6 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 6× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua; 6× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 6× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free DMSS app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- XVR-3108AD-4K + 6× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua
- Cameras included
- 6× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 6TB surveillance HDD — about 23 days of footage, recording all 6 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 6× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free DMSS app (iOS / Android) for live view and playback
- What's in the box
- 1× XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua; 6× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 6× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
