What's in the box
Full parts list with quantities. Tap a line for its full spec.
4-camera kit · ~34 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
4 cameras supplied, taking 4 of 8 recorder channels. 4 channels spare for expansion. Adding cameras? Confirm the recorder takes their resolution, has the bandwidth to record them and has power/PoE ports free.
Recording storage
6TB storage supplied. Retention: around 34 days on continuous H.265. Based on 2 Mbps to 2MP, 4 Mbps to 5MP and 8 Mbps over 5MP — per camera, summed across mixed models. On site, retention moves with recorder settings, scene activity and usable HDD capacity; with motion-only recording, expect it to vary with activity.
Before installation
Check the box list for supplied cables, PSUs and mounting accessories. Size cable runs and camera positions to the site — camera count alone doesn't establish coverage. Per position: lens field of view, lighting, weather protection — confirm all three.
The recorder
1× XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua
Records every channel and runs the app
The cameras
4× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Footage storage
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Single-plug camera power
The cable
4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Need other cameras, a larger HDD or longer cable runs? Open the kit in the builder to swap parts as required — every swap gets re-checked against the full spec, so you can't build a parts list that won't work together.
Product Description

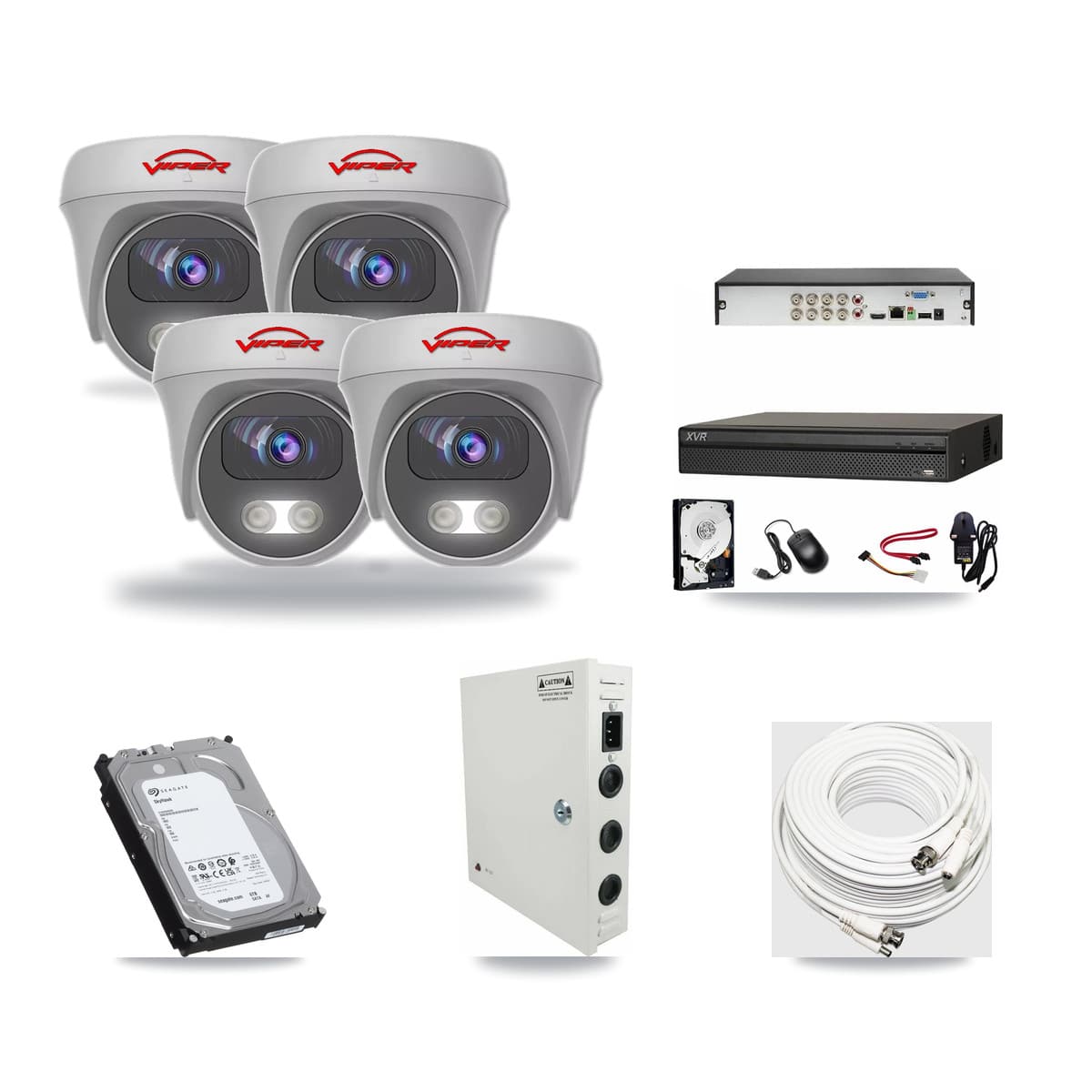

A complete 8-channel HD-over-coax CCTV kit built on the XVR-3108AD-4K + 4× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 4 cameras at 5MP — sized for a house or flat. The included 6TB surveillance hard drive holds about 34 days of continuous recording — the estimate assumes recording all 4 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua; 4× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free DMSS app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- XVR-3108AD-4K + 4× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua
- Cameras included
- 4× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 6TB surveillance HDD — about 34 days of footage, recording all 4 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free DMSS app (iOS / Android) for live view and playback
- What's in the box
- 1× XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua; 4× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
