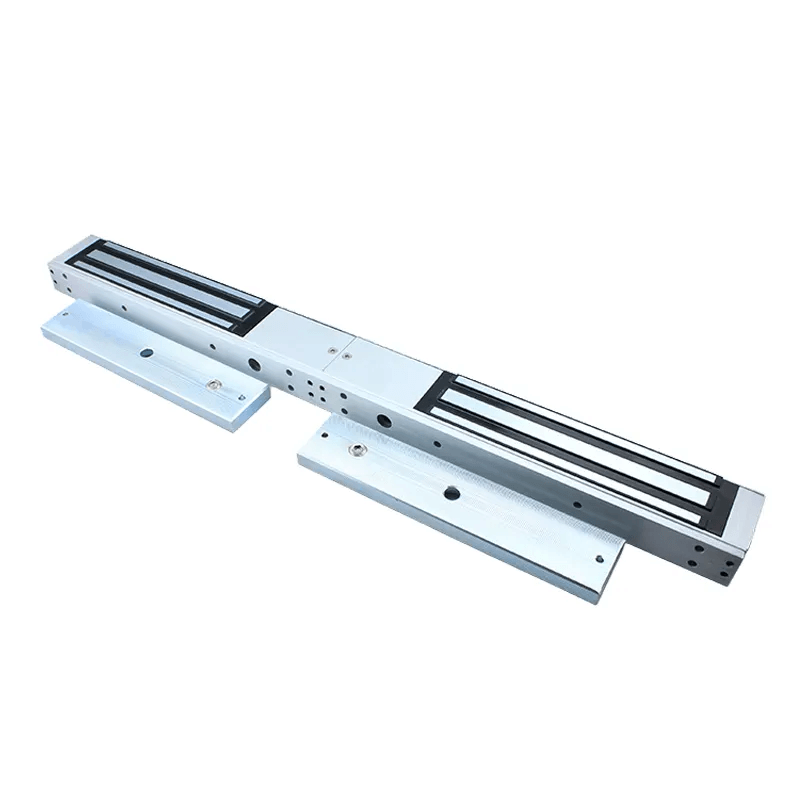

1000KG Double Door Magnetic Lock 12V 24V Electromagnetic Maglock
SKU: UK-MAGLOCK-DOUBLE-1000KG
• Double door electromagnetic lock with 1000kg holding force • Designed for access control systems and secure entrances • Dual voltage operation 12V DC or 24V DC • Suitable for glass, wooden, metal and fire doors • Surface mount installation above double doors • Fail-safe magnetic locking for controlled entry systems • Supplied with armature plates for door mounting
Low Stock
Only 9 left - order soon!
Product Description
The 1000KG Double Door Magnetic Lock is designed for high-strength electromagnetic locking in access control installations. The unit provides a combined holding force of 1000kg, typically consisting of two 500kg magnetic locks mounted within a single housing. This configuration allows the lock to secure double door systems commonly used in commercial buildings, offices, industrial facilities and restricted access areas. Electromagnetic locks operate by energising a magnet installed on the door frame. When powered, the magnet creates a strong magnetic field that holds a steel armature plate mounted on the door leaf. When the power supply is interrupted by an access controller, keypad, push-to-exit button or emergency release device, the magnetic field is released and the door opens. The lock supports dual voltage operation at 12V DC or 24V DC, allowing compatibility with common access control power supplies and door entry systems. The device is typically installed above double doors and can be integrated with access control controllers, card readers, biometric systems and intercom door entry systems. This type of magnetic lock is suitable for installation on a wide range of door types including wooden doors, metal doors, glass doors and fire-rated doors when installed with appropriate mounting brackets. It is commonly used in office buildings, warehouses, apartment blocks and secure facilities where controlled entry and reliable door locking are required.
