Product Description

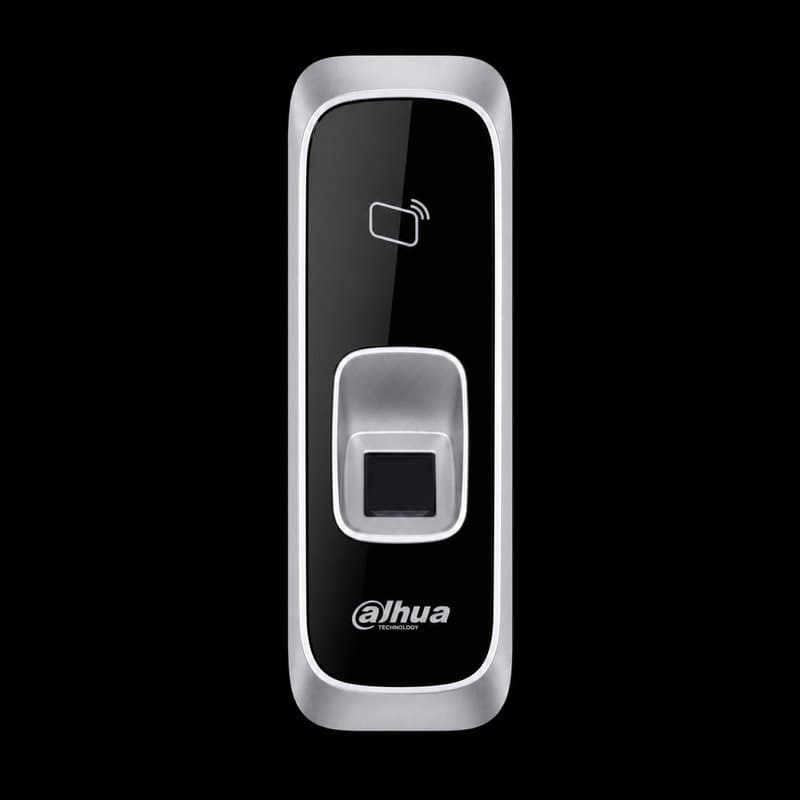

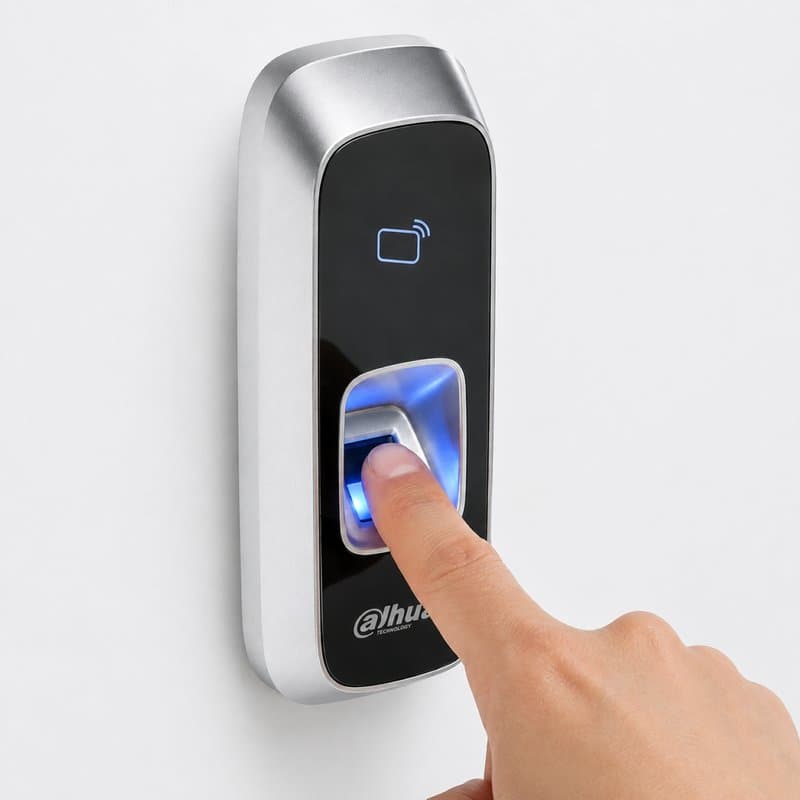

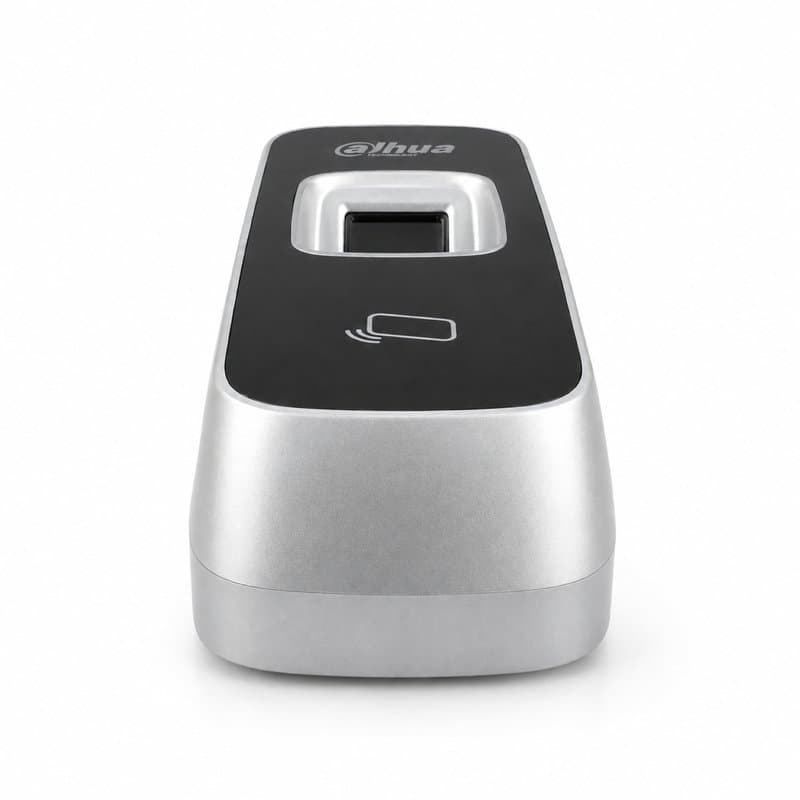

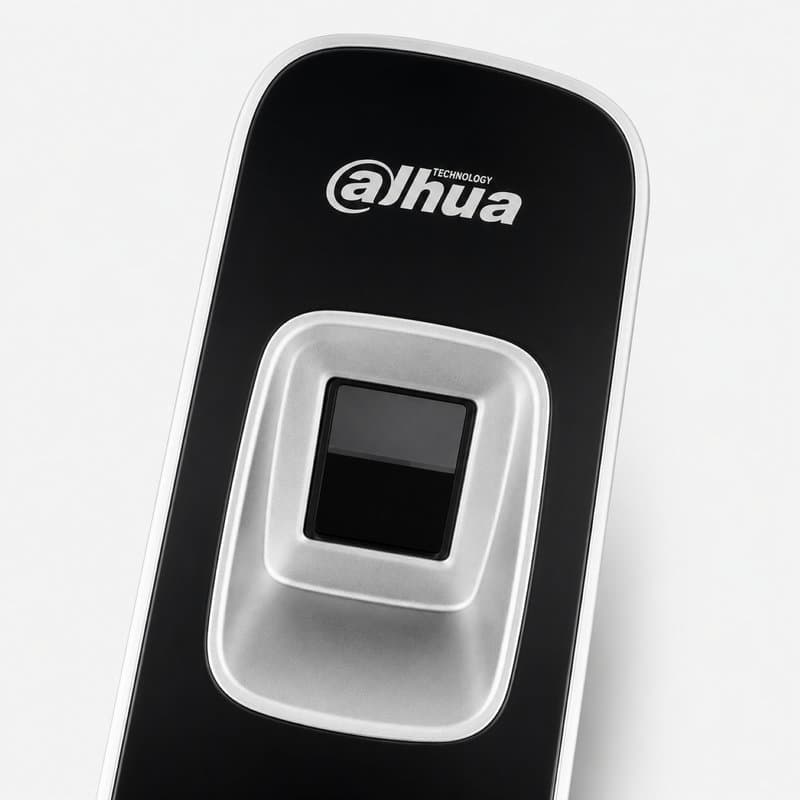

The ASR1102A(V2) is an RS-485 fingerprint and RFID reader for access control installs where card-only entry isn't enough.
Key specs
- Interface: RS-485 protocol
- Card type: IC (Mifare) by default; "-D" variant reads ID EM cards
- Credentials supported: card, fingerprint
- Fingerprint capacity: up to 3,000 templates
- Display/feedback: blue backlight, beep, LED indicator
- Reliability: watchdog function to keep the device free from halting
- Mounting: surface mounted
Fitting notes

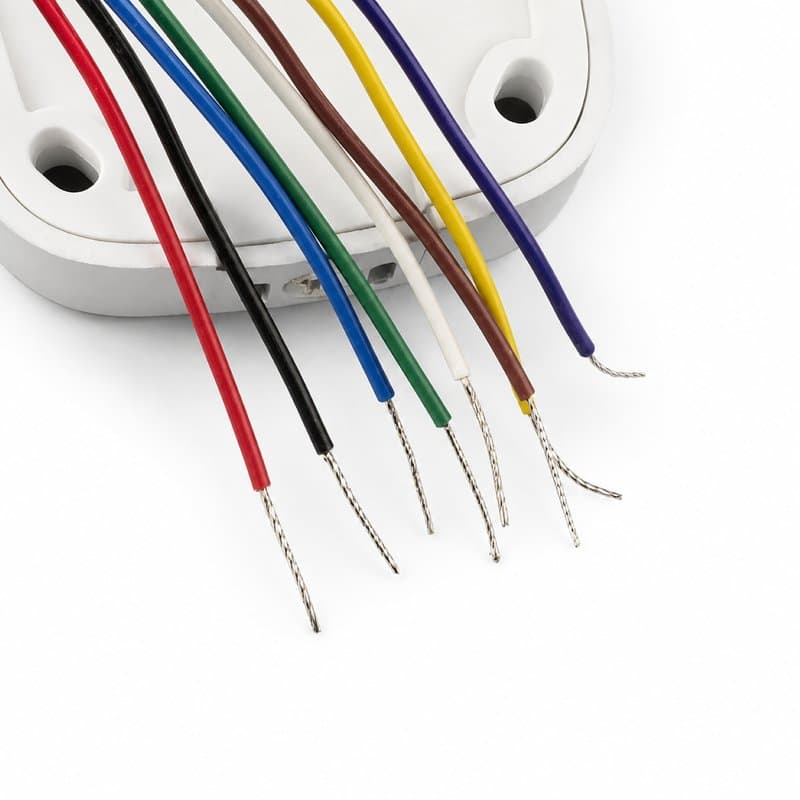

RS-485 keeps wiring consistent with other Dahua access control gear on the same bus, which matters when you're speccing a multi-door job and want a single comms protocol across readers. The default model reads Mifare 13.56MHz cards; if the site uses EM/ID cards instead, specify the ASR1102A-D(V2) variant rather than the standard unit.
The 3,000-fingerprint capacity is worth flagging on larger sites — staff turnover and re-enrolment eat into that figure faster than card-only databases, so check headroom before committing to fingerprint as the primary credential on high-occupancy doors.

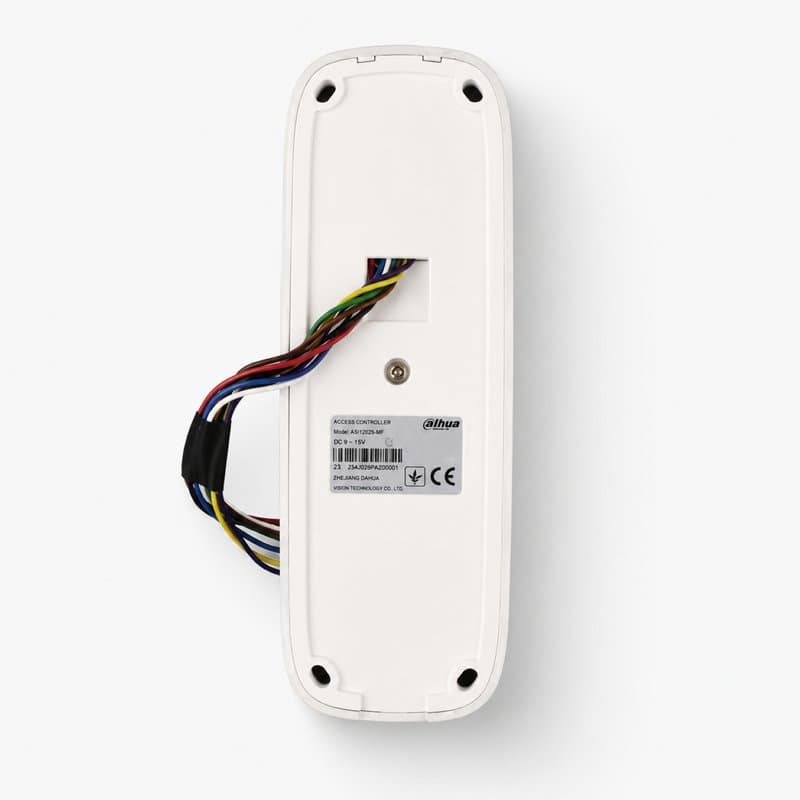

Surface mounting keeps installation straightforward on solid walls or frames; there's no flush-mount spec given here, so plan enclosures accordingly.
Specifications
- Brand
- Dahua
- Model
- ASR1102A(V2)
- Product Type
- Fingerprint and RFID access control reader
- Authentication Methods
- Fingerprint and contactless IC card
- Card Technology
- MIFARE, 13.56MHz
- Fingerprint Capacity
- Up to 3,000 templates
Technical Specifications
Frequently Asked Questions
What's the difference between ASR1102A(V2) and ASR1102A-D(V2)?
The standard model reads IC (Mifare) cards by default; the "-D" variant is set up for ID EM cards instead.
How many fingerprints can it store?
Up to 3,000 fingerprint templates.
What communication protocol does it use?
RS-485.
Is this a surface-mount or flush-mount reader?
It's designed for surface-mounted installation.
