Product Description

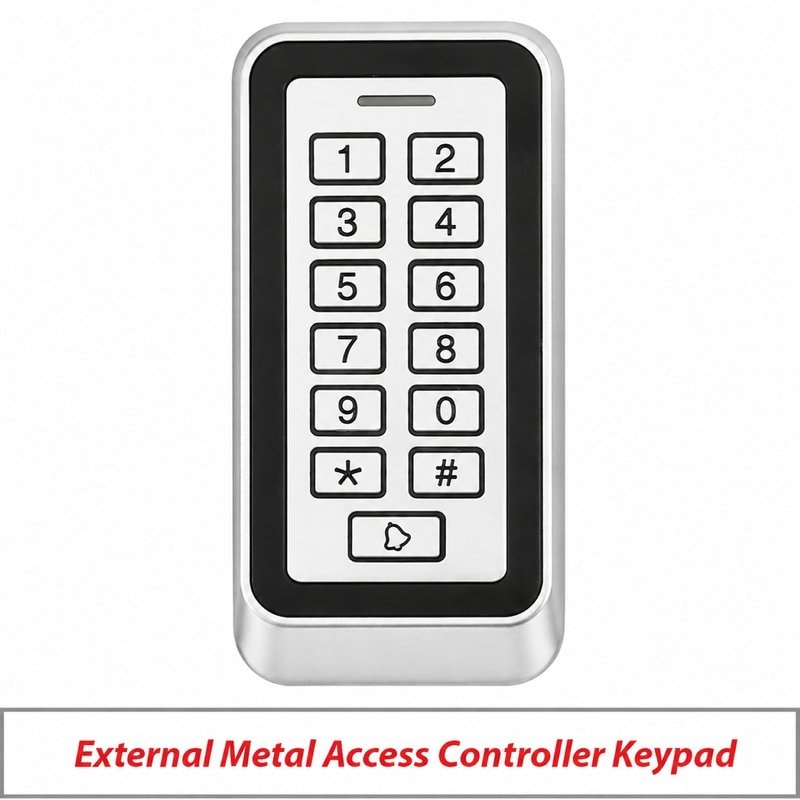

A WiFi access keypad with RFID reader, rated IP68 for exposed outdoor entrances, running on the Tuya platform.
Key specs

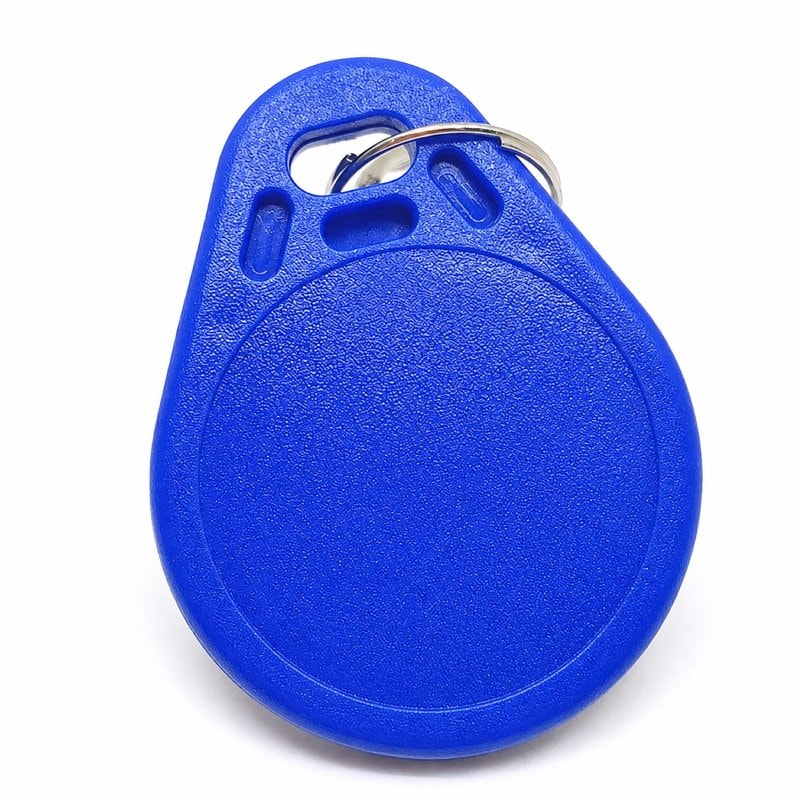

- Entry methods: PIN code or RFID card/fob at the keypad, plus remote unlock from the Tuya/Smart Life app.
- Connectivity: WiFi, managed through the Tuya/Smart Life app — no separate hub needed if you already run Tuya devices.
- Ingress protection: IP68, so the unit is sealed for fully exposed outdoor mounting rather than needing a sheltered position.
- Wiring standard: WG26/34 (Wiegand), relevant if you're integrating the keypad into an existing access control panel rather than running it stand-alone.
Where it fits on a job
For installers, the WG26/34 output is the detail that decides whether this keypad slots into a panel-based system already on site, or gets deployed as a stand-alone Tuya-app-controlled reader. IP68 means it can go straight onto an unsheltered door, gate or side entrance without a canopy or recessed housing.
App control
Because control runs through Tuya/Smart Life, remote unlock and any automations or user management sit inside the same app as other Tuya kit on the job, rather than needing a dedicated access control platform.
Specifications
- Solution Type
- Smart Wi-Fi access control
- Control Function
- Online access control
- Applications
- Small offices, industrial parks and controlled entry points
Frequently Asked Questions
Can this keypad be wired into an existing access control panel?
Yes — it supports the WG26/34 (Wiegand) wiring standard, which is used to connect readers to access control panels, so it can be integrated rather than run stand-alone.
Is it suitable for a fully exposed outdoor door or gate?
Yes, it is IP68 rated, which the source specifies as suitable for fully exposed outdoor entrances.
Does it need a separate hub to work with other smart home kit?
No — it connects via WiFi and is managed through the Tuya/Smart Life app, so it sits alongside other Tuya devices without a separate hub.
Can I unlock the door remotely without being at the keypad?
Yes, remote unlock is available through the Tuya/Smart Life app in addition to PIN and RFID entry at the keypad.
