Product Description

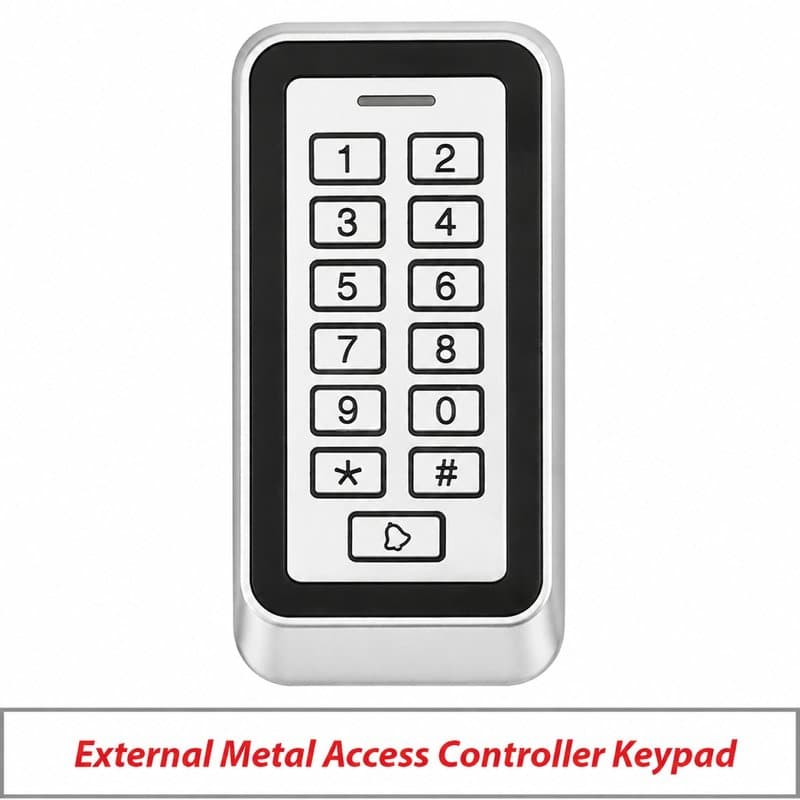

Standalone door keypad with integrated RFID reader — PIN code or proximity card credential, no host PC required.
Key specs
- Authentication: PIN code and RFID card, either credential releases the door
- Housing: metal alloy construction for durable, vandal-resistant installation
- Interface: Wiegand output, for handing credential reading off to an external access controller
- Wired outputs: electric lock, door sensor, exit button
- Keypad: backlit for operation in low-light conditions
- Environment: rated for indoor and outdoor installation
Where it fits
For single-door jobs — office entrances, apartment blocks, plant rooms, gated compounds — this runs standalone out of the box, so no access-control software is needed for a basic PIN/card install.
Integration
The Wiegand interface means the keypad doesn't have to stay standalone. Where a door needs to join a site-wide access system later, credential reading can be handed off to an external controller rather than replacing the keypad.
Wiring on site
Standard connections for electric lock, door sensor and exit button cover normal door-release wiring without extra interface boxes. The metal housing suits exposed mounting points such as external entrances and gated areas, and the backlit keypad keeps PIN entry usable after dark.
This is a supply-only listing — installation is carried out by the buyer or their installer.
Specifications
- Product Type
- Standalone Access Control Keypad with RFID Reader
- Model / SKU
- ACM-208C-ID
- Access Methods
- PIN code or RFID proximity card
- Operating Mode
- Standalone or integration with external access control systems
- Keypad
- Backlit numeric buttons
- Communication
- Wiegand interface
- Installation
- Wall mounted
Frequently Asked Questions
Does the ACM-208C-ID work without an access control PC?
Yes — it's a standalone keypad, authenticating users by PIN code or RFID card without external software.
Can it integrate with a larger access control system?
Yes, via its Wiegand interface it can hand off credential reading to an external access controller.
What can it connect to for door release?
It has standard outputs for an electric lock, a door sensor and an exit button.
Is the keypad usable at night?
Yes — the keypad is backlit for low-light operation.
