Product Description

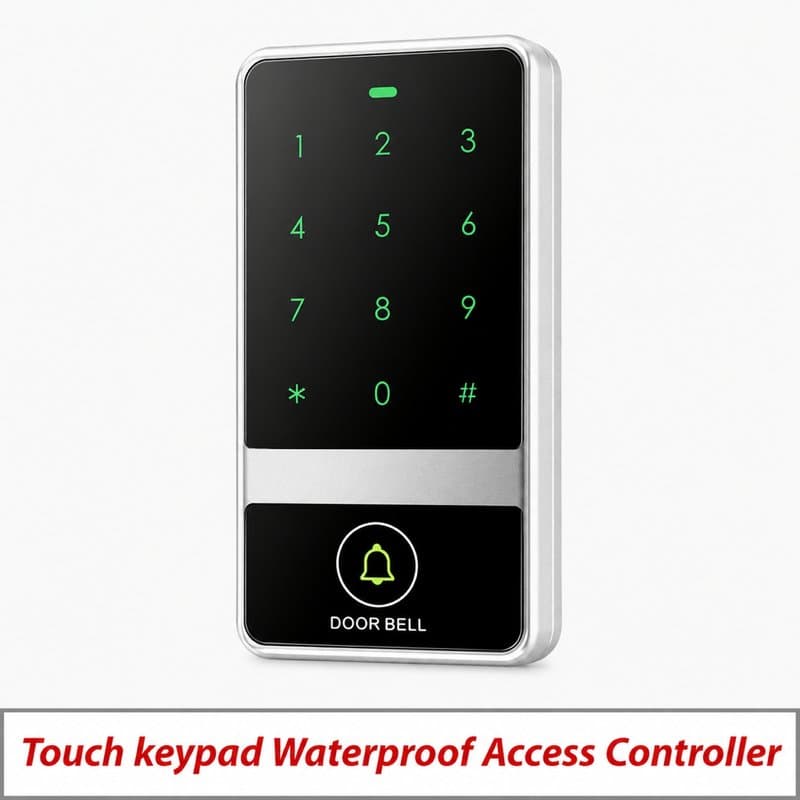

ACM-A60W-EM is a Wiegand-output touch keypad reader combining PIN and EM 125 kHz RFID authentication for door-entry integration on standard access control panels.
Authentication and interface
- Dual-mode credential support: PIN code entry via backlit touch keypad, or EM 125 kHz proximity card presentation.
- Wiegand interface for wiring into third-party access control controllers or security management platforms — no proprietary panel required.
- Backlit keypad stays legible in low-light conditions, relevant for unlit external doors and night-time entry.
Installation and housing
- Waterproof design, stated as suitable for outdoor installation — usable at building entrances, gates or exposed external access points.
- Compact metal housing, wall-mounted form factor.
- Built-in doorbell function for visitor notification at the point of entry — a useful spec when a job needs one unit to cover both entry credential checking and call-for-attention duties.
Job scope
On the output side the reader is specified to work with electric door locks, magnetic locks, exit buttons and door sensors via its Wiegand interface — standard fare for office entrances, apartment blocks, warehouses, secure rooms and gated compounds. Confirm the downstream controller's Wiegand format and card format tables before allocating to a job with mixed-vendor EM 125 kHz credentials already in circulation.
Specifications
- Product Type
- Touch Keypad RFID Access Controller
- Model / SKU
- ACM-A60W-EM
- Access Methods
- PIN code or RFID proximity card
- RFID Standard
- EM, 125 kHz
- Keypad
- Touch-sensitive, backlit
- Housing
- Metal
- Weather Protection
- Waterproof design; IP rating not specified
- Usage
- Indoor and outdoor
- Doorbell Function
- Built in
Frequently Asked Questions
What credential types does the ACM-A60W-EM support?
It supports PIN code entry on the backlit touch keypad and EM 125 kHz RFID proximity cards, either method used independently.
What interface does it use to connect to an access control panel?
It uses a Wiegand interface, allowing integration with external access control systems, controllers or security management platforms.
Can the ACM-A60W-EM be mounted outdoors?
Yes, it has a waterproof design stated as suitable for outdoor installation as well as indoor use.
What lock hardware can it drive?
It can be used to control electric door locks, magnetic locks, exit buttons and door sensors.
