Product Description
Overview

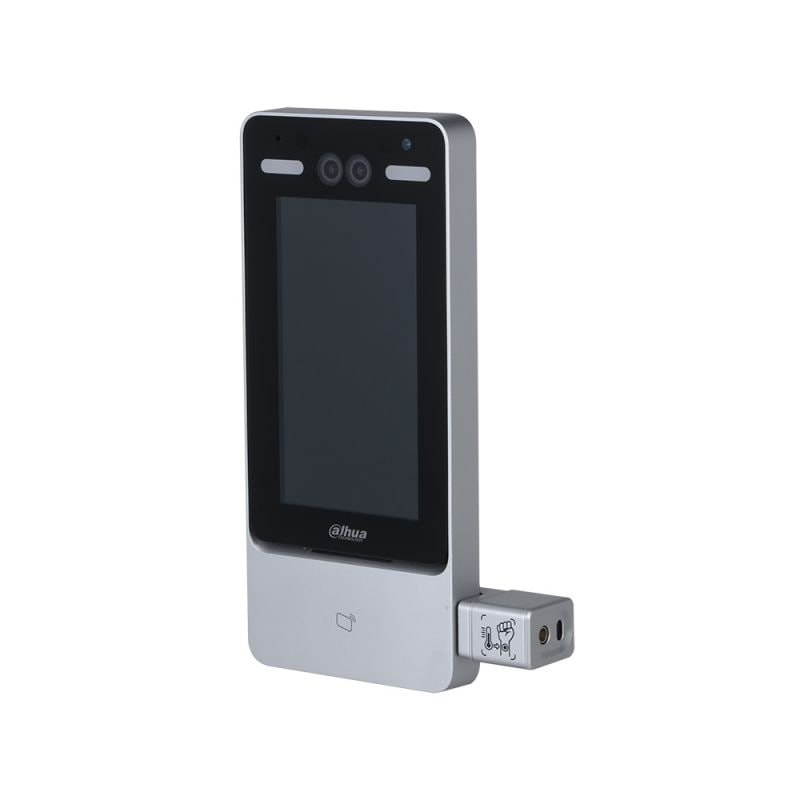

Standalone 2MP face recognition terminal for door control without a separate access panel — Dahua DHI-ASI7213YO-V3-T0.
Key specs
- Display: 7" LCD, 1024 x 600
- Imaging: 2MP CMOS with WDR
- Illumination: Auto fill light — cuts unwanted light spill at the door
- Capacity: 50,000 users / 50,000 face images / 50,000 cards / 50,000 passwords / 50 administrators / 100,000 records
- Unlock modes: Face, IC card, password, and combinations of these
- Face detection: Multi-face detection box; where several faces appear simultaneously, the largest is recognised first; max face size configurable via web interface
- Recognition engine: Maps 360+ points on a face; recognition speed 0.35s per face
- Liveness detection: Included, for resistance to photo/video spoofing at unmanned doors
- Backlight/front-light handling: Stated as accurate in both conditions
Installation planning
Face-to-camera working distance is 0.3m–1.0m, with a human height range of 0.9m–2.4m based on a 1.4m lens-to-ground mounting height. Use these figures when setting standoff distance and mounting height on site — deviating from the 1.4m reference height will shift the effective capture window.
No power, PoE, or wiegand/output interface details are given in the specification supplied; confirm these against the datasheet before scoping cabling or third-party panel integration.
Specifications
- Brand
- Dahua
- Resolution
- 2MP
Technical Specifications
Frequently Asked Questions
What is the working distance for face recognition on the ASI7213YO-V3-T0?
The face-to-camera working distance is 0.3m to 1.0m, covering a human height range of 0.9m to 2.4m, based on a 1.4m lens-to-ground mounting height.
How many users and faces can it store?
It holds up to 50,000 users, 50,000 face images, 50,000 cards, 50,000 passwords, 50 administrators, and 100,000 access records.
How fast is face recognition on this unit?
Recognition speed is stated as 0.35 seconds per face, using an algorithm that maps over 360 positions on the face.
Does it support unlock methods other than face recognition?
Yes — it supports face, IC card, and password unlock, as well as combinations of these methods.
Does it include anti-spoofing protection?
Yes, it includes liveness detection to reduce the risk of spoofing via photos or video at unmanned entrances.
