Product Description
Overview

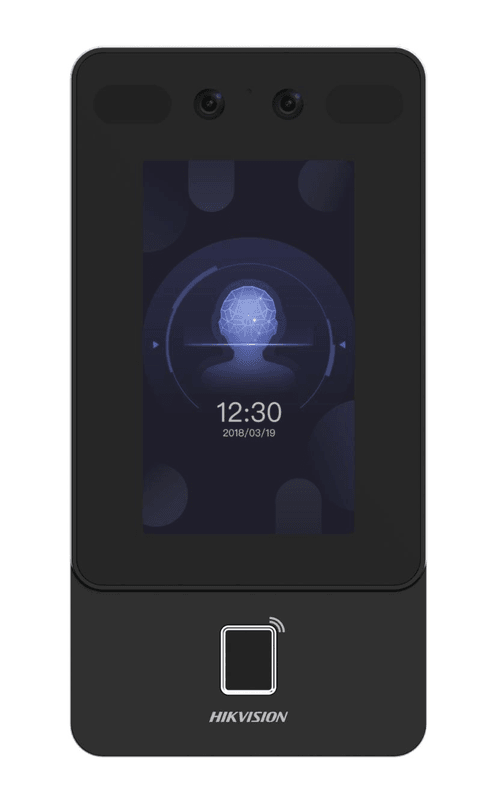

The DS-K1T342MFWX-E1 is a standalone multi-biometric terminal combining face recognition, fingerprint, Mifare card and PIN authentication in one door-end unit, aimed at access control and time-attendance deployments.
Key specs
- Display: 4.3-inch colour LCD touchscreen for enrolment and live interaction
- Face recognition range: 0.3m–1.5m, sub-0.2-second match time
- Credential storage: up to 1,500 faces, 3,000 fingerprints, 3,000 card credentials
- Card reader: integrated Mifare, 13.56 MHz contactless
- Network: WiFi and Ethernet (TCP/IP) for remote management, configuration and event monitoring
- I/O: integrates with electric locks, exit buttons, door sensors and alarm inputs
Deployment notes
Storage ceiling (1,500 faces / 3,000 cards / 3,000 fingerprints) sizes this unit for small-to-medium sites — single-door office, retail, warehouse or restricted-area entry. For larger rosters or multi-door estates, plan credential distribution across additional terminals rather than relying on a single unit's local database.
TCP/IP over WiFi or Ethernet means the terminal can sit on existing network infrastructure and report into Hikvision access control platforms for centralised user management and event logs, without requiring a dedicated controller for basic single-door setups.
Authentication modes (face, fingerprint, card, PIN) can be used independently or combined, giving installers flexibility to set multi-factor requirements per site policy or per door.
Specifications
- Brand
- Hikvision
- Model
- DS-K1T342MFWX-E1
- Product Type
- Face Recognition Access Control Terminal
- Display Size
- 4.3
- Authentication Methods
- Face, Fingerprint, Card, PIN
- Face Capacity
- 1500
- Fingerprint Capacity
- 3000
- Card Capacity
- 3000
- Card Type
- Mifare 13.56 MHz
- Network Interface
- Ethernet, WiFi
- Recognition Speed
- ≤0.2 seconds
- Power Supply
- 12V DC
- Installation Type
- Wall Mounted
- Application
- Access Control and Time Attendance
- Colour
- Black
Technical Specifications
Frequently Asked Questions
What authentication methods does the DS-K1T342MFWX-E1 support?
It supports face recognition, fingerprint, 13.56 MHz Mifare contactless card, and PIN authentication, usable individually or in combination.
How many users can the terminal store?
Up to 1,500 face templates, 3,000 fingerprint templates, and 3,000 card credentials, per the manufacturer specification.
What is the effective face recognition distance?
Recognition is designed to work between 0.3m and 1.5m from the terminal, with matching typically completed in under 0.2 seconds.
Does it need a separate network cable, or can it run on WiFi?
The terminal has both integrated WiFi and Ethernet connectivity, communicating over TCP/IP for remote management with Hikvision access control software.
Can this terminal control a door lock directly?
Yes, it can integrate with electric locks, exit buttons, door sensors and alarm inputs for a complete single-door access control setup.
