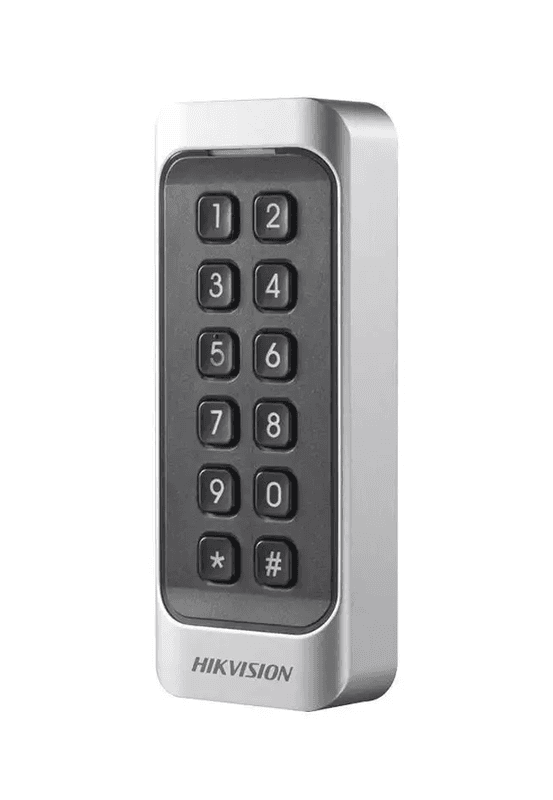

Hikvision DS-K1107AMK access control reader Basic access control reader Black, Grey Int Mifare Card Reader w/ Keyboard RS 485 Wiegand
SKU: DS-K1107AMKCopied!
Hikvision DS-K1107AMK. DC voltage range: 12 V. Width: 115 mm, Depth: 44 mm, Height: 22 mm
Available to order
Add to basket or call us — our team will arrange it
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.
Product Description
Hikvision DS-K1107AMK access control reader
The DS-K1107AMK is a basic Mifare card reader with an integrated keypad, built for standalone or networked access control installs where a compact form factor and dual comms options matter.
Key specs
- Interface: RS-485 and Wiegand, giving integrators a choice depending on the controller topology already on site
- Card technology: Mifare
- Keypad: integrated, for PIN or card+PIN operation
- DC voltage range: 12 V
- Dimensions: 115 mm (W) x 44 mm (D) x 22 mm (H)
- Finish: Black, Grey
Installation notes
With both RS-485 and Wiegand supported, the DS-K1107AMK can be wired into existing Wiegand-based controller runs or dropped onto an RS-485 bus alongside other Hikvision access control hardware, giving installers flexibility when retrofitting or extending a system. Its small footprint (115 x 44 x 22 mm) suits door frames and narrow mounting plates where space is tight.
Confirm the controller's supported protocol before specifying — RS-485 and Wiegand are not interchangeable on the same port, so wiring should match the panel's input configuration.
Specifications
- Card Reading Frequency
- 13.56 MHz
- Power Supply
- 12 VDC
- Max Power Consumption
- ≤ 2W
- Operating Temperature
- -20 °C to 65 °C (-4 °F to 149 °F)
- Operating Humidity
- 10% to 90% (no condensing)
- Dimensions
- 115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
- Installation
- Wall mounting with screws; Do not support gang box
- Keypad
- 12 Keys (0 to 9, *, #)
- Buzzer
- Support
Technical Specifications
Frequently Asked Questions
What card technology does the DS-K1107AMK support?
It reads Mifare cards, with an integrated keypad for PIN or card+PIN entry.
Which interfaces does the DS-K1107AMK use?
It supports both RS-485 and Wiegand, so it can be wired into either type of controller input.
What is the power requirement for the DS-K1107AMK?
It operates on a 12 V DC voltage range.
What are the physical dimensions of the DS-K1107AMK?
115 mm wide, 44 mm deep and 22 mm high.
