What's in the box
Full parts list with quantities. Tap a line for its full spec.
5-camera kit · ~92 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
5 cameras supplied, taking 5 of 8 recorder channels. 3 channels spare for expansion. Adding cameras? Confirm the recorder takes their resolution, has the bandwidth to record them and has power/PoE ports free.
Recording storage
10TB storage supplied. Retention: around 92 days on continuous H.265. Based on 1 Mbps to 2MP, 2 Mbps to 5MP and 4 Mbps over 5MP — per camera, summed across mixed models. On site, retention moves with recorder settings, scene activity and usable HDD capacity; with motion-only recording, expect it to vary with activity.
Before installation
Check the box list for supplied cables, PSUs and mounting accessories. Size cable runs and camera positions to the site — camera count alone doesn't establish coverage. Per position: lens field of view, lighting, weather protection — confirm all three.
Price on request
The Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM in this kit is a quoted line, so the kit is priced on application rather than with a published total. Remaining parts listed below.

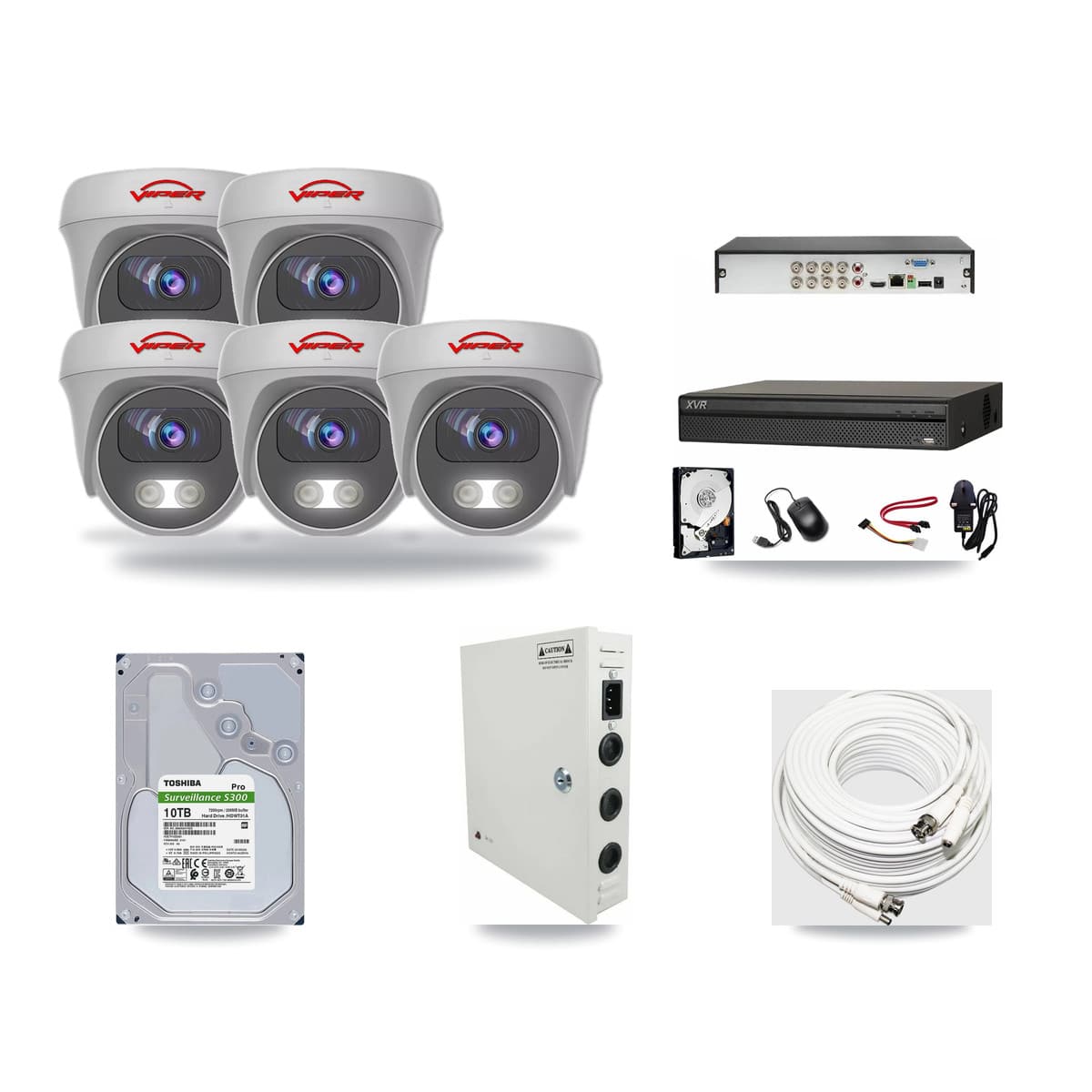

The recorder
1× XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua
Records every channel and runs the app
The cameras
5× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Footage storage
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Single-plug camera power
The cable
5× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Need other cameras, a larger HDD or longer cable runs? Open the kit in the builder to swap parts as required — every swap gets re-checked against the full spec, so you can't build a parts list that won't work together.
Product Description
Trade-ready 8ch HD analogue kit — XVR-3108AD-4K DVR with 5 off Viper VIPER-5MP-3K-AOC-WHITE-2.8MM cameras. 5MP on the cameras, Smart Light for colour at night. 10TB surveillance HDD supplied: approx 92 days' retention with all 5 channels on continuous H.265, then it overwrites the oldest. PSU/cabling in the kit — 5 off Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1 off 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Complete kit, nothing extra to bring to site. Suits small commercial installs. Kit list: 1 off XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua; 5 off VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1 off Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 5 off Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1 off 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. DMSS app compatible for customer handover.
Specifications
- System type
- Analog (HD over coax)
- Built on
- XVR-3108AD-4K + 5× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua
- Cameras included
- 5× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 10TB surveillance HDD — about 92 days of footage, recording all 5 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 5× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free DMSS app (iOS / Android) for live view and playback
- What's in the box
- 1× XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua; 5× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 5× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
