Viper & Prolux 8-Channel 5MP CCTV Kit — 4 White Cameras + 5TB Recording (PXD-5108HS Recorder)
SKU: KIT-HD8-PXD5108HS4KX-VIPER5MP3KAOX04-5TB-1855ECopied!
Built on: Prolux PXD-5108HS-4K/X1 + 4× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. Keeps about 28 days of continuous footage on the included 5TB hard drive.
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
How long should it keep footage?
When the drive fills, the recorder writes over the oldest day.

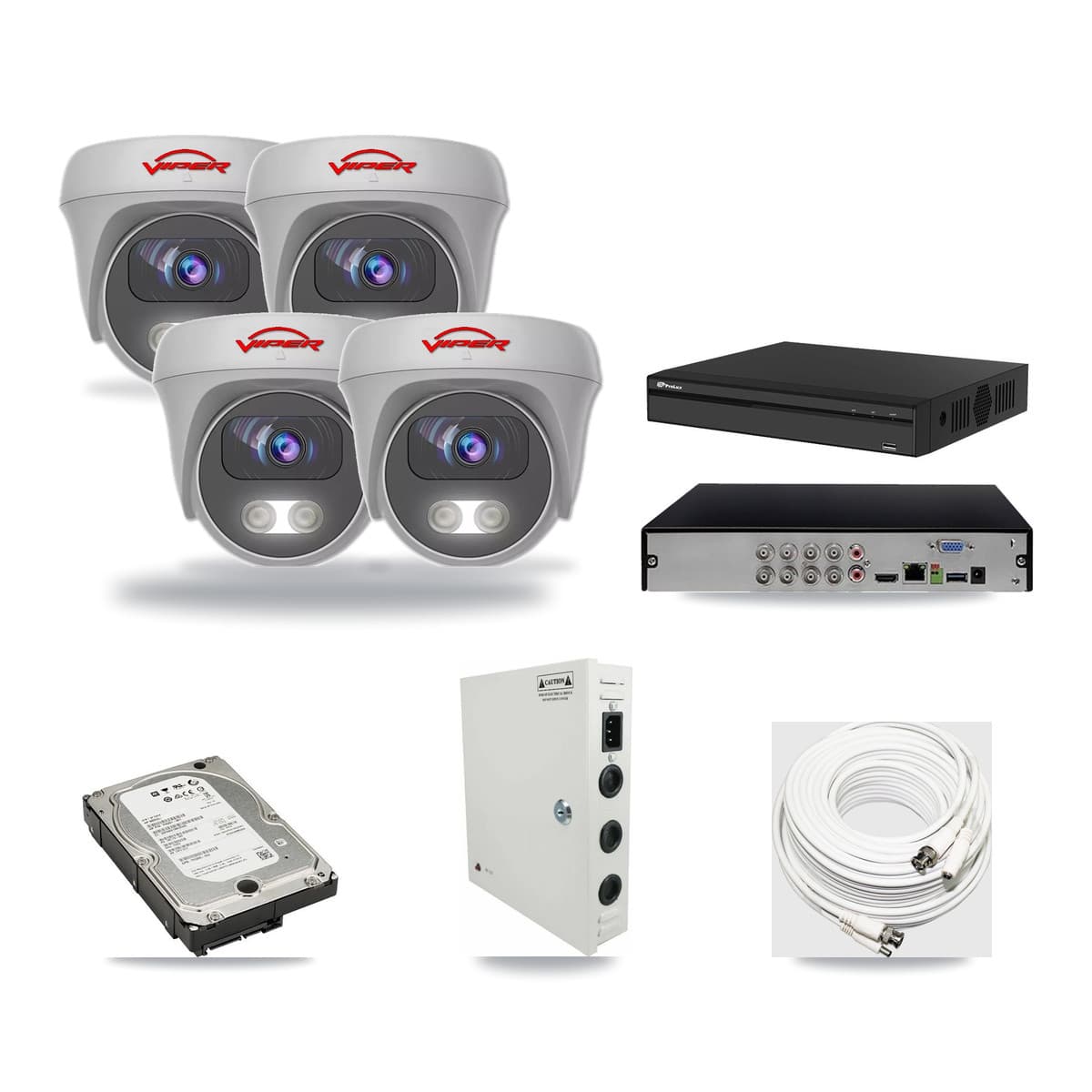

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a house — 4 cameras, keeps about 28 days of footage, it reuses the round coax cable an older system left behind.
Price on request
One part of this kit — the Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954 — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR
The box that saves everything and runs the app
The cameras× 4
VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
What goes on the wall
The hard drive
Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954
Where the footage is kept
The power supply
12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
One plug that powers the cameras
The cable× 4
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 8-channel HD-over-coax CCTV kit built on the Prolux PXD-5108HS-4K/X1 + 4× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 4 cameras at 5MP — sized for a house or flat. The included 5TB hard drive holds about 28 days of continuous recording — the estimate assumes recording all 4 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR; 4× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5108HS-4K/X1 + 4× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR
- Cameras included
- 4× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 5TB HDD — about 28 days of footage, recording all 4 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- What's in the box
- 1× PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR; 4× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
