What's in the box
Full parts list with quantities. Tap a line for its full spec.
1-camera kit · ~69 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
1 included camera use 1 of the recorder’s 8 channels. 7 channels remain for expansion. Before adding cameras, check supported resolution, recording bandwidth and available power or PoE ports.
Recording storage
3TB storage is included. Estimated recording time: about 69 days with continuous H.265 recording. The estimate uses 2 Mbps per camera up to 2MP, 4 Mbps up to 5MP and 8 Mbps above 5MP, summed for mixed camera models. Actual retention depends on settings, scene activity and usable drive capacity; motion-only recording varies with activity.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
Price on request
The 3TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording in this kit is a quoted line, so the kit is priced on application rather than with a published total. Remaining parts listed below.
The recorder
1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
Records every channel and runs the app
The cameras
1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
1× 3TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording
Footage storage
The power supply
1× MOSO Power Unit 12V 1.5A
Single-plug camera power
The cable
1× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Different cameras, a bigger drive or longer runs? Open this kit in the builder and swap any part — each change is re-checked against the rest, so you can't spec parts that don't work together.
Product Description

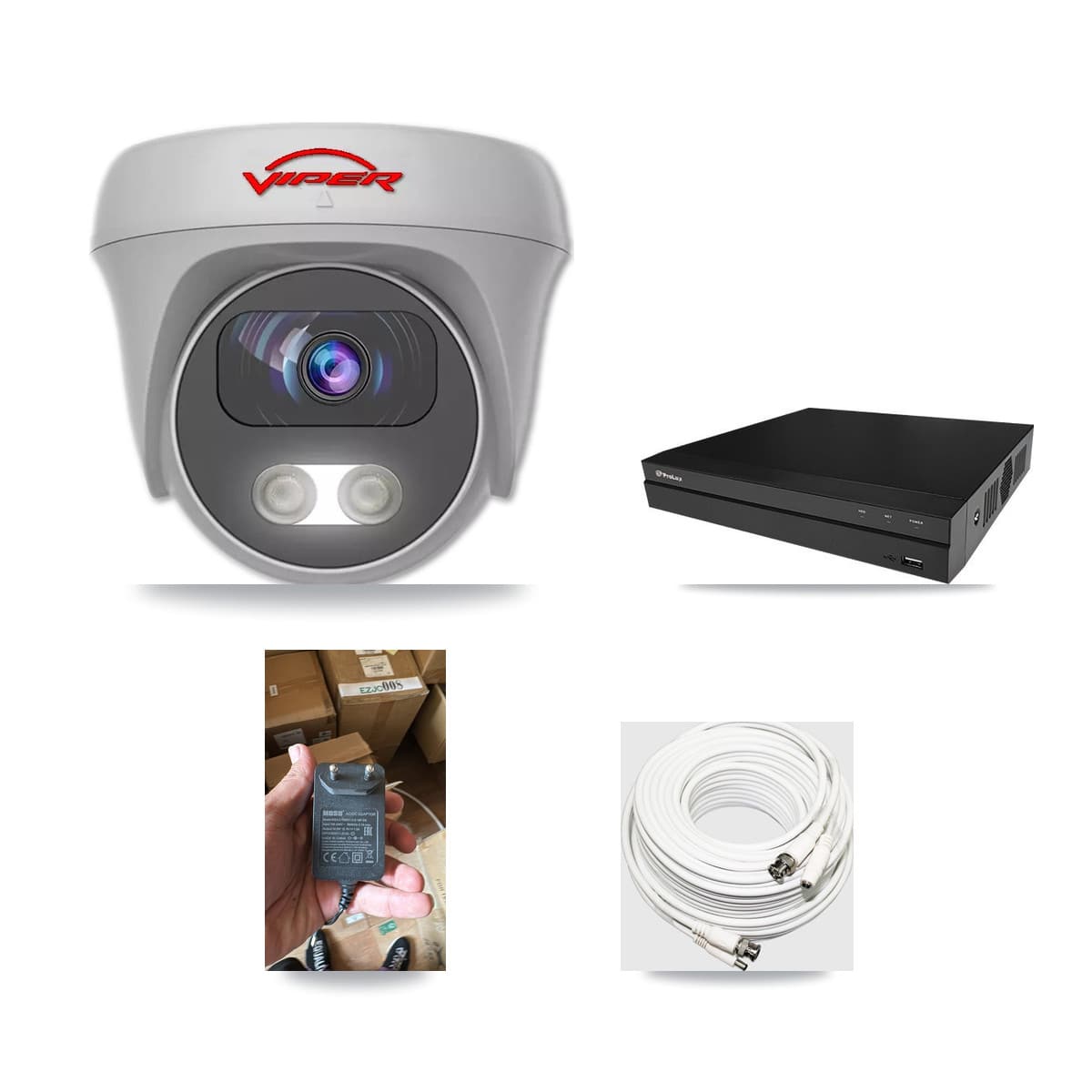

A complete 8-channel HD-over-coax CCTV kit built on the Prolux PXD-5208AN-4KL-X-8P + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. One camera at 5MP — sized for a house or flat. The included 3TB hard drive holds about 69 days of continuous recording — the estimate assumes recording the camera continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 1× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores, 1× MOSO Power Unit 12V 1.5A. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× 3TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording; 1× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× MOSO Power Unit 12V 1.5A.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5208AN-4KL-X-8P + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
- Cameras included
- 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 3TB HDD — about 69 days of footage, recording the camera continuously at high quality (H.265)
- Cables & PSU included
- 1× MOSO Power Unit 12V 1.5A; 1× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- What's in the box
- 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× 3TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording; 1× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× MOSO Power Unit 12V 1.5A
