What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
uses analogue cameras; check existing coax cable condition and compatibility before reuse.
Recording storage
500GB storage is included. Recording time depends on the camera mix, bitrate and recording schedule. A reliable day estimate is unavailable for this configuration.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
Price on request
One part of this kit — the Seagate 500GB - 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
1× Hikvision 4-ch 1080p 1U H.265 DVR
The box that saves everything and runs the app
The hard drive
1× Seagate 500GB - 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording
Where the footage is kept
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description

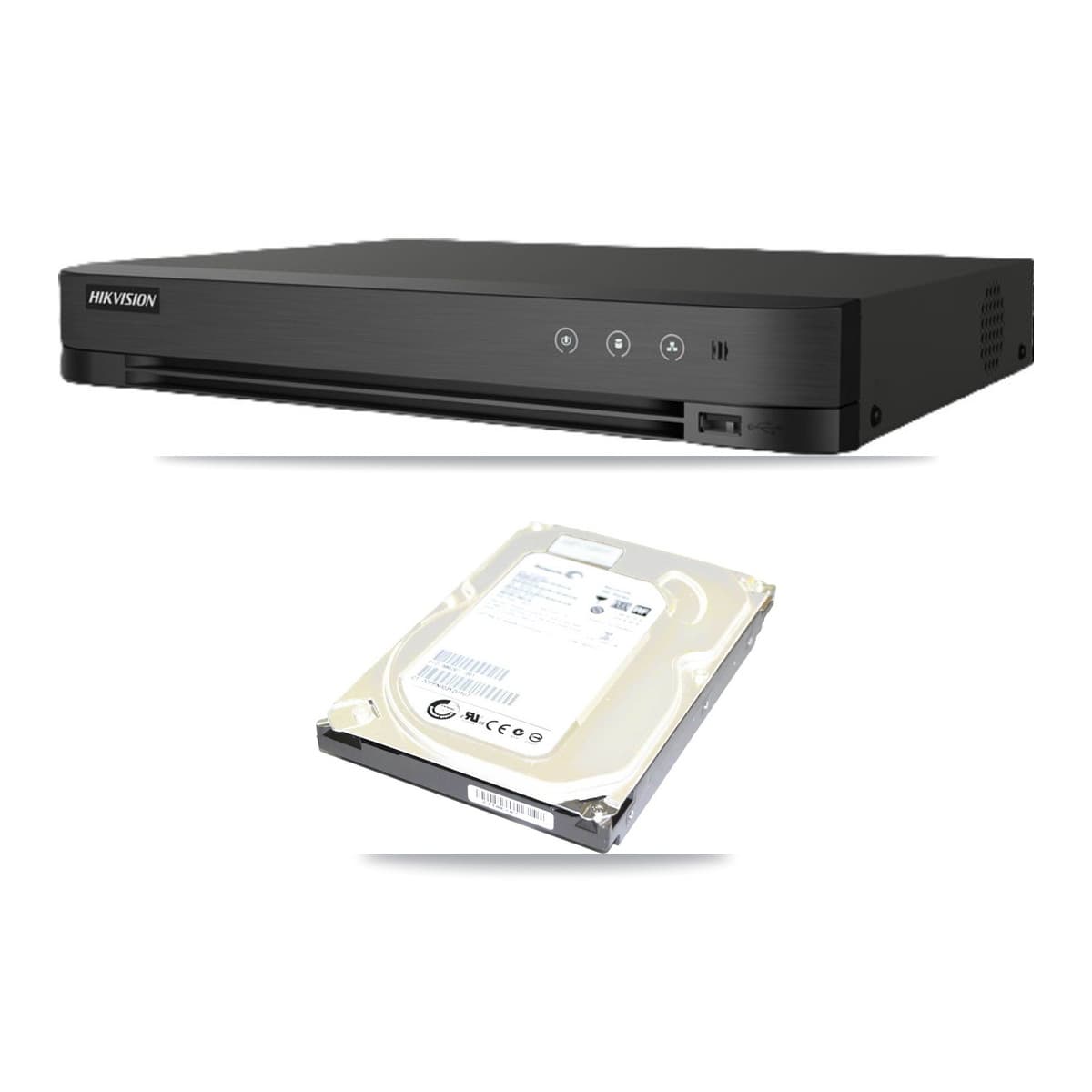

Hikvision DS-7204HGHI 4-Ch DVR + 500GB Pre-Installed
A 4-channel 1U DVR with a 500GB hard drive already fitted, ready to deploy on install without sourcing storage separately.
Key specs
- Channels: 4 — supports up to four connected CCTV cameras
- Recording resolution: 1080p
- Compression: H.265, for more efficient storage than H.264 on equivalent drive capacity
- Chassis: 1U form factor
- Storage: 500GB HDD pre-installed
On the job
This is a recorder only — cameras are supplied and connected separately, so confirm camera count and compatibility before quoting the job. The 4-channel limit is fixed on this unit; a 5th camera needs a different model DVR.
The 1U chassis keeps the footprint low for rack or shelf mounting on site. H.265 compression is the newer standard versus H.264, which means the same 500GB drive holds more recorded footage before it needs overwriting or archiving — useful when planning retention periods against drive capacity on smaller installs.
For distributors and integrators
Stock this as a drop-in 4-channel recorder for jobs where four cameras cover the site and a pre-loaded drive saves a step at commissioning. Check downstream compatibility with existing Hikvision camera stock before spec'ing into a wider multi-DVR estate.
Specifications
- System type
- Analog (HD over coax)
- Recorder
- 4-channel Hikvision 4-ch 1080p 1U H.265 DVR
- Storage
- 500GB HDD
- What's in the box
- 1× Hikvision 4-ch 1080p 1U H.265 DVR; 1× Seagate 500GB - 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording
Frequently Asked Questions
How many cameras can this DVR support?
Up to four — it's a 4-channel unit and won't take a fifth camera without a different recorder.
Does the hard drive need fitting on site?
No, the 500GB drive is pre-installed and ready to record out of the box.
What recording resolution does it support?
1080p, using H.265 compression for more efficient storage than H.264 at the same drive capacity.
What size case does it come in?
It's a 1U chassis, suited to rack or shelf mounting on site.
