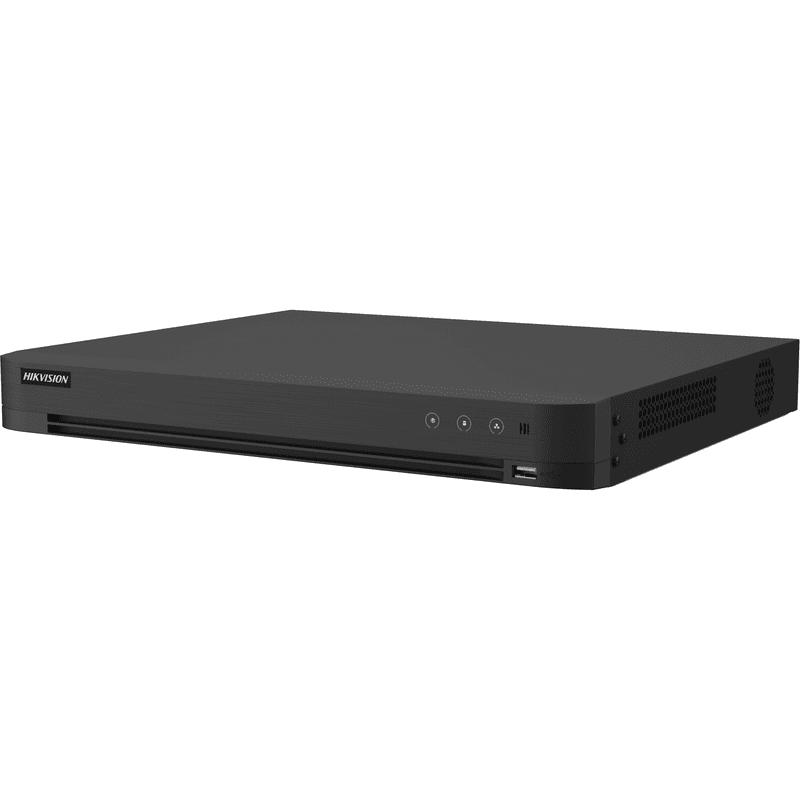

Hikvision iDS-7208HUHI-M2/PXT – 8-Channel AcuSense PoC Hybrid DVR
SKU: iDS-7208HUHI-M2/PXTCopied!
The Hikvision iDS-7208HUHI-M2/PXT is a hybrid DVR designed for high-performance analogue plus IP surveillance. It integrates AcuSense deep learning-based intelligence, including human/vehicle motion detection, perimeter protection, facial recognition, and supports both Power-over-Coax (PoC) and Audio-over-Coax (AoC) for simpler cable runs. It supports up to 8 analogue channels and up to 16 IP camera channels. Ideal for commercial and residential applications that require high resolution, smart analytics, and simplified wiring.
Available to order
Add to basket or call us — our team will arrange it
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.
Product Description
Hikvision iDS-7208HUHI-M2/PXT — 8-Channel AcuSense PoC Hybrid DVR
This DVR handles 8 analogue channels plus up to 16 IP camera channels in Enhanced IP mode, making it a practical core for mixed-technology sites migrating from analogue to IP.
Key specs
- Video inputs: 8× BNC (HD-TVI/AHD/CVI/CVBS) + up to 16 IP channels, each up to 8 MP
- PoC/AoC: powers compatible cameras over coax and carries audio over coax, cutting cable runs on retrofits
- Encoding: H.265 Pro+/H.265/H.264+/H.264, up to 8 MP @ 8 fps on analogue inputs
- Storage: 2× SATA, each HDD up to 12 TB
- Network: Gigabit RJ45, ONVIF, Hik-Connect, DDNS, HTTPS; total bandwidth ~256 Mbps
- I/O: 8 alarm inputs, 4 alarm outputs, RS-485 for PTZ
- Power: 48 VDC, 2.5 A; ≤20 W consumption without HDD
Analytics on board
AcuSense Motion Detection 2.0 classifies human/vehicle events on analogue channels to cut false triggers. Perimeter protection (line crossing, intrusion) runs on all 8 analogue channels, and facial detection/recognition is available on 4 of them. AcuSearch speeds up event review by filtering for these classifications directly.
Fit for the job
Two-way audio runs via the first analogue audio input, useful where a single audio-enabled entry point is needed. Video outputs cover HDMI (4K/30 Hz) and VGA simultaneously, and the 16-channel IP headroom leaves room to scale a site beyond its initial analogue camera count without swapping the recorder.
Specifications
- Brand
- Hikvision
- Channels
- 8
Technical Specifications
Frequently Asked Questions
How many cameras can the iDS-7208HUHI-M2/PXT support in total?
It takes 8 analogue channels (TVI/CVI/AHD/CVBS) plus up to 16 IP camera channels in Enhanced IP mode, each up to 8 MP.
Does this DVR power cameras over the coax cable?
Yes, it supports Power-over-Coax (PoC) as well as Audio-over-Coax (AoC), simplifying cable runs on analogue installs.
What analytics does it run on analogue channels?
AcuSense Motion Detection 2.0 with human/vehicle classification, perimeter protection on all 8 analogue channels, and facial detection/recognition on 4 of them.
How much storage can I fit in this recorder?
It has 2 SATA interfaces, with each hard drive supporting up to 12 TB.
