Product Description
Overview

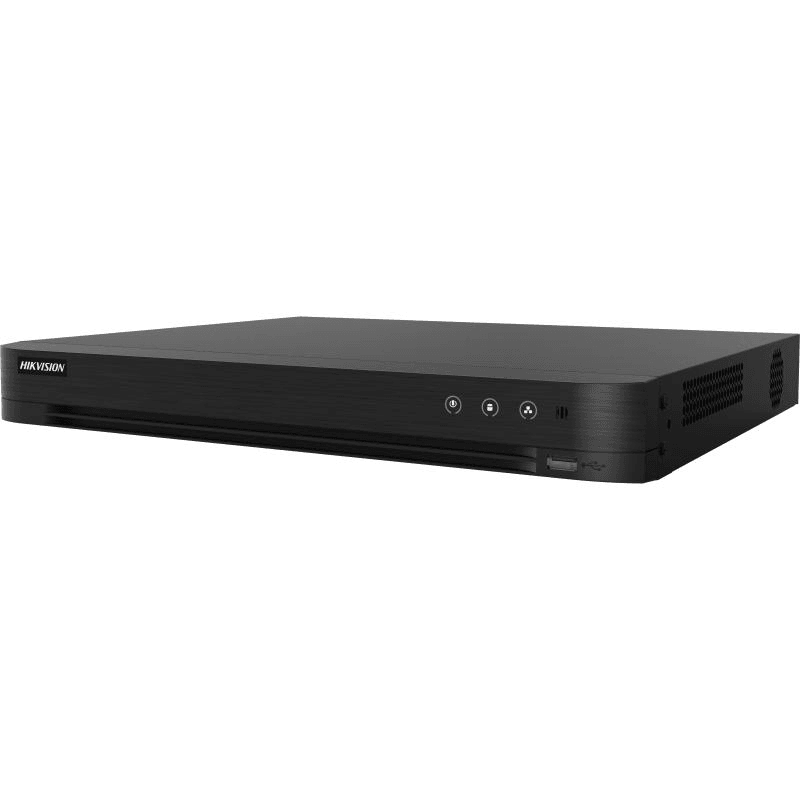

The iDS-7204HQHI-K1/2S(B) is a 4-channel, 1-bay 1U AcuSense DVR built for small installations needing intelligent analytics without an NVR-scale budget.
Key specs
- 4 analogue/HD channels, 1 HDD bay, 1U chassis
- AcuSense: deep-learning human/vehicle classification to cut false alarms
- H.265 pro+ compression for reduced storage overhead
- Encoding up to 1080p @ 15fps
- 5 signal types accepted adaptively per channel: HDTVI, AHD, CVI, CVBS, IP
- Up to 6 network cameras can be added, supporting formats up to 5MP
Why it matters on site
Adaptive signal input means engineers can mix HDTVI, AHD, CVI or CVBS cameras on the same channel without pre-configuring the recorder — useful on refurb jobs where camera stock varies. Adding up to 6 IP cameras on top of the 4 analogue inputs extends coverage without swapping to a full NVR.
Analytics
Deep-learning classification distinguishes people and vehicles from irrelevant motion (foliage, animals, headlight sweep), reducing nuisance alerts on perimeter-protected channels — useful where the DVR feeds an alarm relay or VMS event log.
Compatibility note
Also listed under part number IDS-7204HQHI-K1/2Sw; treat as the same unit when cross-referencing stock or spec sheets.
Single-HDD, 1080p output keeps this model suited to small sites — shops, offices, single-property installs — rather than multi-building estates needing higher channel density or 4K recording.
Technical Specifications
Frequently Asked Questions
How many channels does the iDS-7204HQHI-K1/2S(B) support?
It has 4 analogue/HD channels via a single HDD bay, plus the option to add up to 6 network cameras.
What video signal types can I connect?
It accepts 5 signal types adaptively per channel: HDTVI, AHD, CVI, CVBS and IP.
What is the maximum recording resolution and frame rate?
Encoding tops out at 1080p at 15fps, using H.265 pro+ compression.
Is IDS-7204HQHI-K1/2Sw the same product?
Yes, it's also listed under the part number IDS-7204HQHI-K1/2Sw for the same unit.
