Product Description

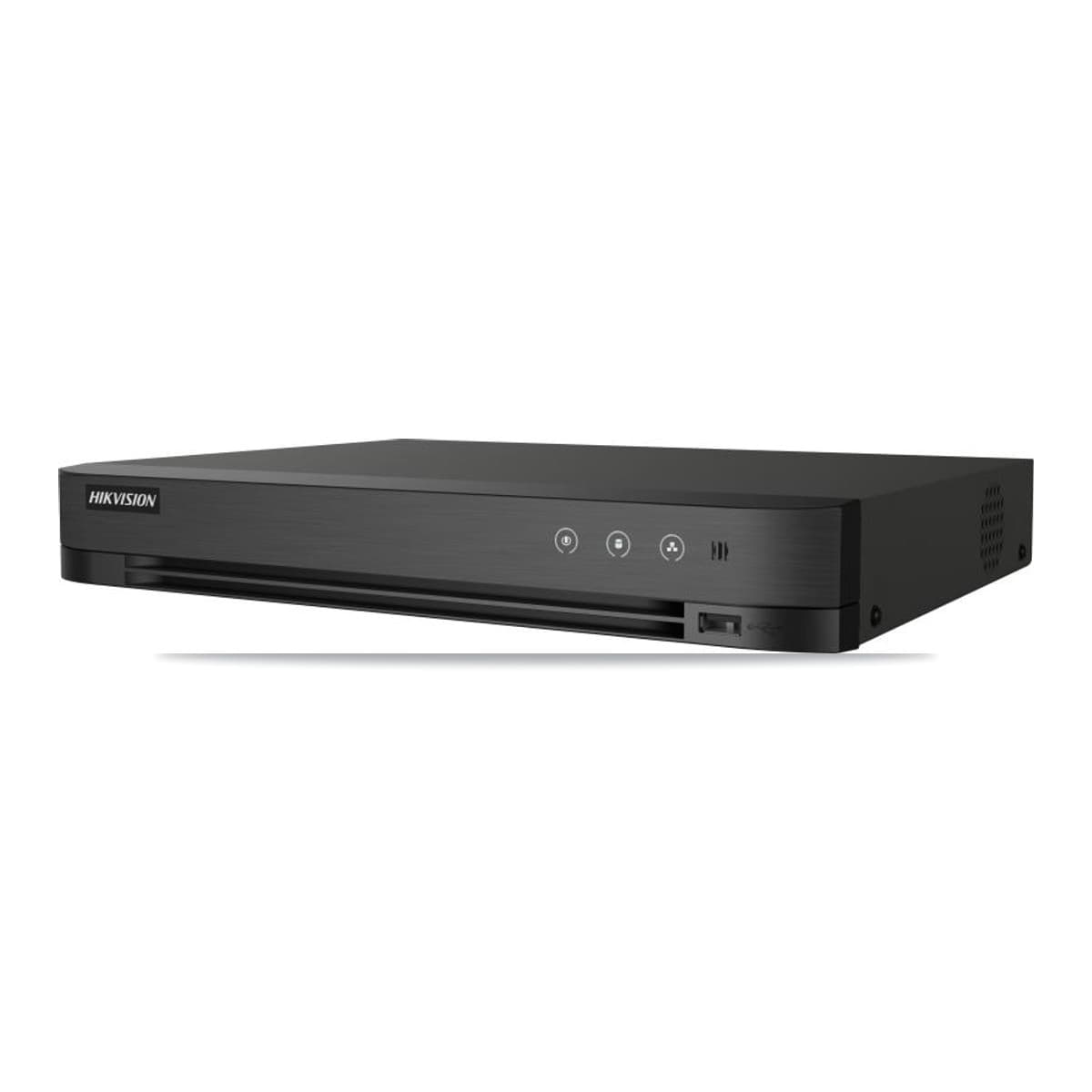

A 4-channel 1U Turbo HD DVR with AcuSense analytics for hybrid analogue/IP jobs. The iDS-7204HQHI-M1/XT accepts HDTVI, AHD, CVI and CVBS signals adaptively across its 4 channels, with no manual signal-type configuration required, and can also connect up to 6-ch network cameras.
Key specs
- Channels: 4-ch analogue (HDTVI/AHD/CVI/CVBS, auto-adaptive) plus support for up to 6-ch network cameras
- Compression: H.265 Pro+ for reduced bitrate and storage overhead
- Recording resolution: up to 3K/5MP Lite @ 12fps
- Storage: 1x SATA interface, up to 10TB
- Video output: HDMI and VGA, simultaneous, up to 1920×1080
- Audio: two-way audio on all channels via RCA/coaxial, when paired with compatible cameras
AcuSense and detection
AcuSense applies deep-learning classification to separate human/vehicle events from environmental noise — foliage, shadows, small animals — cutting nuisance alerts on motion-triggered recording. One channel can run facial recognition, or two channels can be reallocated to advanced perimeter protection instead. AcuSearch is supported on 2 channels for faster event review. Motion detection is available across all four channels.
Compatibility note
Also listed under part numbers IDS-7204HQHI-K1/2S, IDS-7204HQHI-M1/S and their NO-HDD variants — same hardware platform, useful when cross-referencing older quotes or stock listings against this SKU.
Suited to installs mixing legacy analogue cameras with a handful of IP additions on one recorder, where AcuSense filtering and H.265 Pro+ storage efficiency matter more than raw channel count.
Specifications
- Model
- iDS-7204HQHI-M1/XT
- Series
- M-Series
- Channels
- 4-CH
- Max Resolution
- 5MP Lite
- Max Analog Resolution
- 5MP
- IP Channels (Hybrid)
- Up to 6
- Video Compression
- H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
- Recording Resolution
- 5MP Lite, 3K Lite, 4MP Lite, 1080p Lite, 720p
- Frame Rate
- 12 fps @ 5MP Lite
- Decoding Capability
- 4 Channels
- HDMI/VGA Independent
- Sync
- Max Output Resolution
- 1920 × 1080
- BNC Output
- Yes
- Max Total Storage
- 10TB
- eSATA Port
- No
- AcuSense
- Yes
- DeepinMind / AI
- No
- Human & Vehicle Detection
- Yes
- Face Detection
- Yes
- Face Recognition
- Yes
- Perimeter Protection
- Yes
- Line Crossing
- Yes
- Intrusion Detection
- Yes
- False Alarm Filtering
- Yes
- People Counting
- No
Technical Specifications
Frequently Asked Questions
How many cameras can the iDS-7204HQHI-M1/XT support in total?
It handles 4 analogue channels (HDTVI/AHD/CVI/CVBS, auto-adaptive) and can also connect up to 6-ch network cameras, per Hikvision's spec sheet.
What recording resolution and frame rate does it support?
Up to 3K/5MP Lite at 12fps, using H.265 Pro+ compression to manage storage and bandwidth.
Does it support facial recognition or perimeter protection?
Yes — one channel can run facial recognition, or two channels can instead be dedicated to advanced perimeter protection using deep-learning analytics.
How much storage can this DVR take?
It has one SATA interface supporting up to 10TB of storage.
