What's in the box
Full parts list with quantities. Tap a line for its full spec.
6-camera kit · ~61 days recording · IP cameras — verify power equipment and cabling against the listed parts.
Recorder capacity
6 cameras supplied, taking 6 of 8 recorder channels. 2 channels spare for expansion. Adding cameras? Confirm the recorder takes their resolution, has the bandwidth to record them and has power/PoE ports free.
Recording storage
8TB storage supplied. Retention: around 61 days on continuous H.265. Based on 1 Mbps to 2MP, 2 Mbps to 5MP and 4 Mbps over 5MP — per camera, summed across mixed models. On site, retention moves with recorder settings, scene activity and usable HDD capacity; with motion-only recording, expect it to vary with activity.
Before installation
Check the box list for supplied cables, PSUs and mounting accessories. Size cable runs and camera positions to the site — camera count alone doesn't establish coverage. Per position: lens field of view, lighting, weather protection — confirm all three.
Price on request
The Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive in this kit is a quoted line, so the kit is priced on application rather than with a published total. Remaining parts listed below.

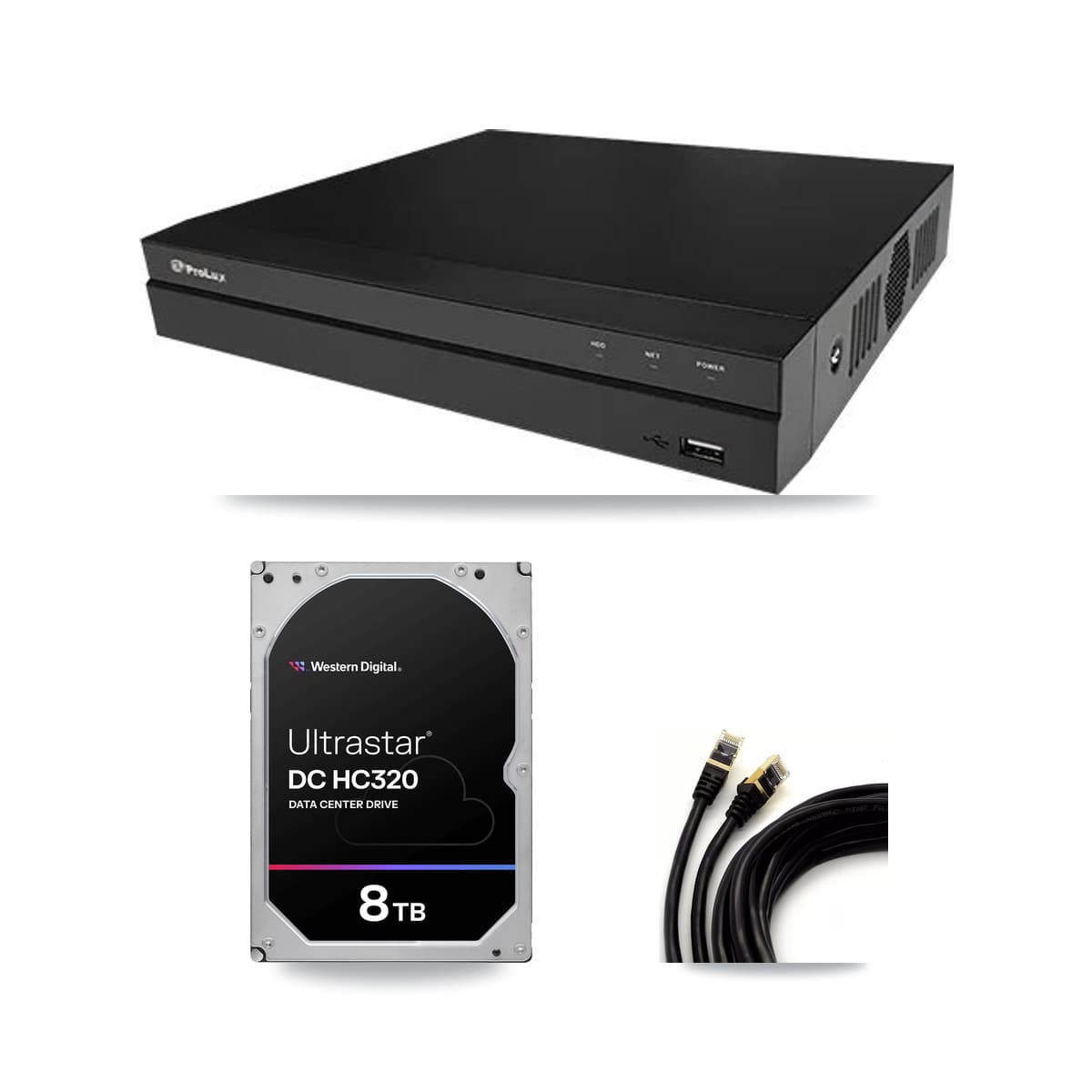

The recorder
1× PROLUX PXN-2108HS-8P-4K ,NVR 8 Channel 1U 8PoE 4K&H.265 Lite Network Video Recorder, Up to 2ch@4...
Records every channel and runs the app
The cameras
6× 5MP AI IP Dome Camera PoE Face Detection IR Night Vision 256GB SD ONVIF IP67
The units that go on the wall
The hard drive
1× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive
Footage storage
The cable
6× 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue)
Camera-to-recorder runs
Need other cameras, a larger HDD or longer cable runs? Open the kit in the builder to swap parts as required — every swap gets re-checked against the full spec, so you can't build a parts list that won't work together.
Product Description
Trade-ready 8ch IP PoE kit — Prolux PXN-2108HS-8P-4K NVR with 6 off LWA28PW-C3 dome cameras. 5MP on the cameras, AI AI on the cameras. 8TB HDD supplied: approx 61 days' retention with all 6 channels on continuous H.265, then it overwrites the oldest. PSU/cabling in the kit — 6 off 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue). Suits small commercial installs. Kit list: 1 off PROLUX PXN-2108HS-8P-4K ,NVR 8 Channel 1U 8PoE 4K&H.265 Lite Network Video Recorder, Up to 2ch@4...; 6 off 5MP AI IP Dome Camera PoE Face Detection IR Night Vision 256GB SD ONVIF IP67; 1 off Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 6 off 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue).
Specifications
- System type
- IP (network)
- Built on
- Prolux PXN-2108HS-8P-4K + 6× LWA28PW-C3
- Recorder
- 8-channel PROLUX PXN-2108HS-8P-4K ,NVR 8 Channel 1U 8PoE 4K&H.265 Lite Network Video Recorder, Up to 2ch@4...
- Cameras included
- 6× 5MP AI IP Dome Camera PoE Face Detection IR Night Vision 256GB SD ONVIF IP67
- Camera resolution
- 5MP
- Storage
- 8TB HDD — about 61 days of footage, recording all 6 cameras continuously at high quality (H.265)
- Cables & PSU included
- 6× 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue)
- What's in the box
- 1× PROLUX PXN-2108HS-8P-4K ,NVR 8 Channel 1U 8PoE 4K&H.265 Lite Network Video Recorder, Up to 2ch@4...; 6× 5MP AI IP Dome Camera PoE Face Detection IR Night Vision 256GB SD ONVIF IP67; 1× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 6× 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue)
