What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
8 cameras included, keeps about 20 days of footage, uses network cameras; check the listed power equipment and cable requirements.
Recorder capacity
8 included cameras use 8 of the recorder’s 16 channels. 8 channels remain for expansion. Before adding cameras, check supported resolution, recording bandwidth and available power or PoE ports.
Recording storage
14TB storage is included. Estimated recording time: about 20 days with continuous H.265 recording. The estimate uses 2 Mbps per camera up to 2MP, 4 Mbps up to 5MP and 8 Mbps above 5MP, summed for mixed camera models. Actual retention depends on settings, scene activity and usable drive capacity; motion-only recording varies with activity.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
The recorder
Hikvision DS-7616NXI-K2/16P(E) 16-Channel PoE AcuSense 4K NVR
The box that saves everything and runs the app
The cameras× 8
Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic
What goes on the wall
The hard drive
Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM
Where the footage is kept
The cable× 8
Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description

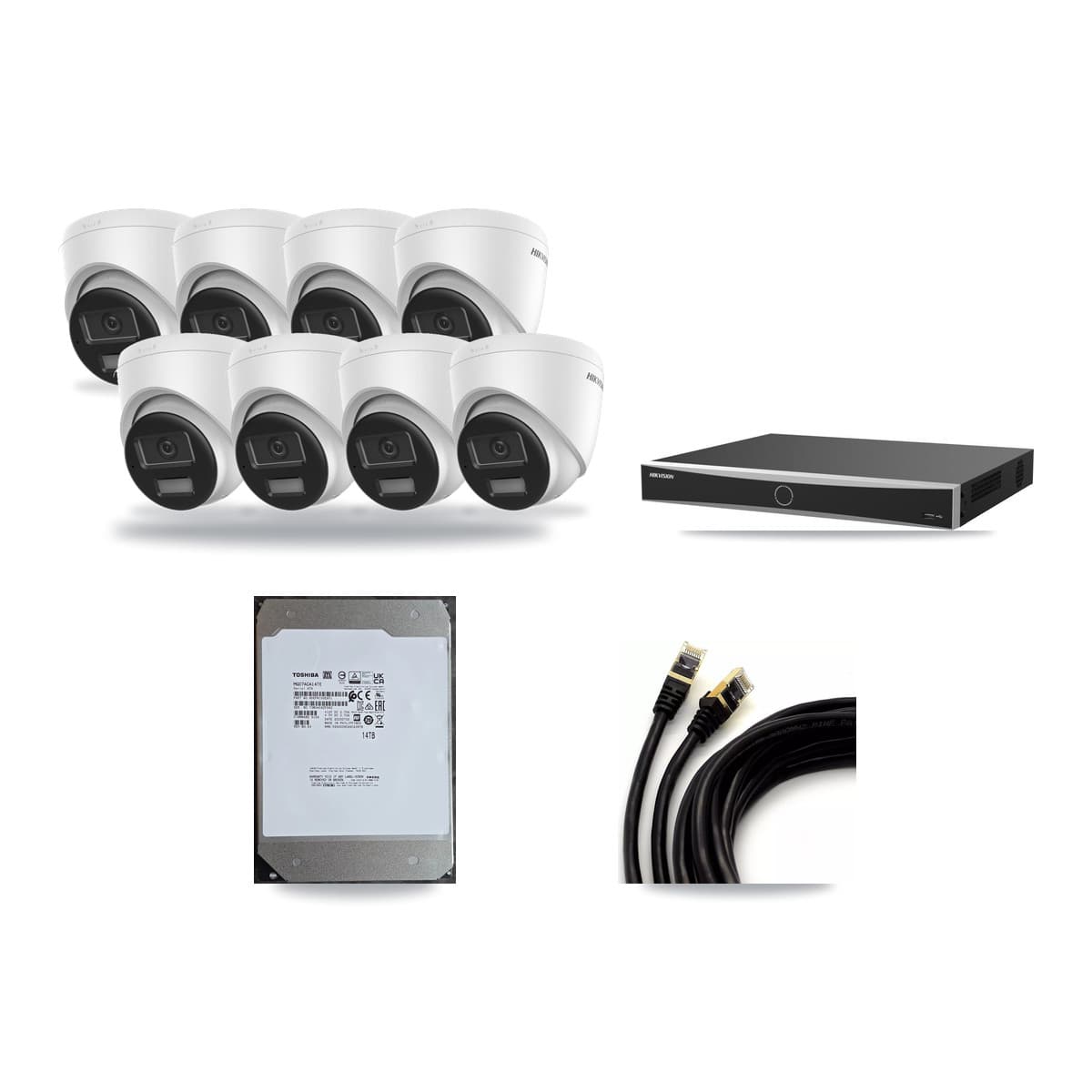

A complete 16-channel IP (PoE) CCTV kit built on the Hikvision DS-7616NXI-K2/16P(E) + 8× Hikvision DS-2CD1383G2-LIU. 8 cameras at 4K (8MP) — sized for a shop or small office. The included 14TB hard drive holds about 20 days of continuous recording — the estimate assumes recording all 8 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 8× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. In the box: 1× Hikvision DS-7616NXI-K2/16P(E) 16-Channel PoE AcuSense 4K NVR; 8× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic; 1× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 8× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7616NXI-K2/16P(E) + 8× Hikvision DS-2CD1383G2-LIU
- Recorder
- 16-channel Hikvision DS-7616NXI-K2/16P(E) 16-Channel PoE AcuSense 4K NVR
- Cameras included
- 8× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic
- Camera resolution
- 4K (8MP)
- Storage
- 14TB HDD — about 20 days of footage, recording all 8 cameras continuously at high quality (H.265)
- Cables & PSU included
- 8× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision DS-7616NXI-K2/16P(E) 16-Channel PoE AcuSense 4K NVR; 8× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic; 1× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 8× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
