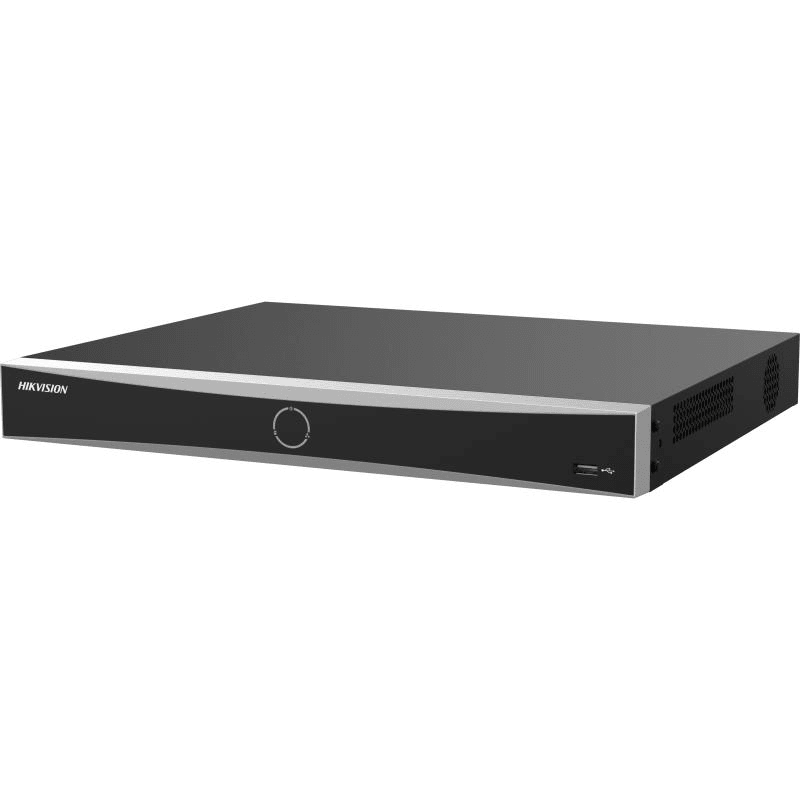

Hikvision DS-7616NXI-K2/16P(E) 16-Channel PoE AcuSense 4K NVR

The Hikvision DS-7616NXI-K2/16P(E) is a 16-channel K Series AcuSense network video recorder designed for professional IP surveillance installations. Sixteen integrated IEEE 802.3af/at PoE interfaces allow compatible IP cameras to be connected, powered and configured directly through the recorder, reducing the requirement for separate PoE switching equipment.

The NVR provides 160Mbps incoming and outgoing bandwidth and supports H.265+, H.265, H.264+ and H.264 compression. Recording resolutions extend up to 16MP, while the decoding platform supports up to three 12MP, five 8MP, ten 4MP or sixteen 2MP channels when recorder-side AI processing is disabled. Sixteen-channel synchronous playback is supported.

AcuSense functions include human and vehicle classification for perimeter protection and Motion Detection 2.0, helping to filter events caused by non-target movement. The recorder also supports facial detection, face-picture comparison and AcuSearch-assisted playback. Camera-side analytics, including ANPR and AcuSearch, require compatible cameras with the applicable functions enabled.

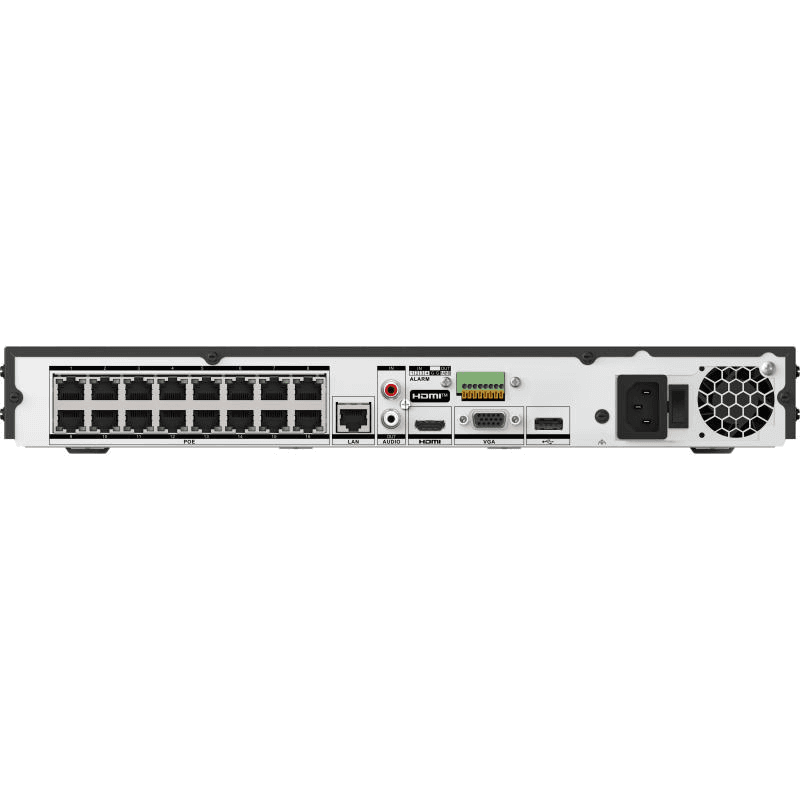

Independent HDMI and VGA outputs support simultaneous local monitoring, with HDMI output available up to 3840 × 2160 at 30Hz. Two SATA interfaces accept HDD capacities up to 16TB each. Integration options include ONVIF Profiles S and G, Hikvision SDK and ISAPI. Additional connections include RCA audio input and output, four alarm inputs, one alarm output, Gigabit LAN and two USB 2.0 interfaces.
