Product Description

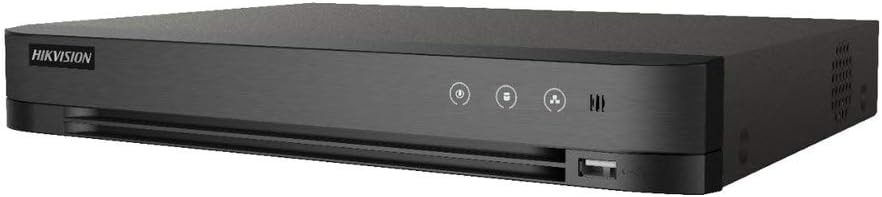

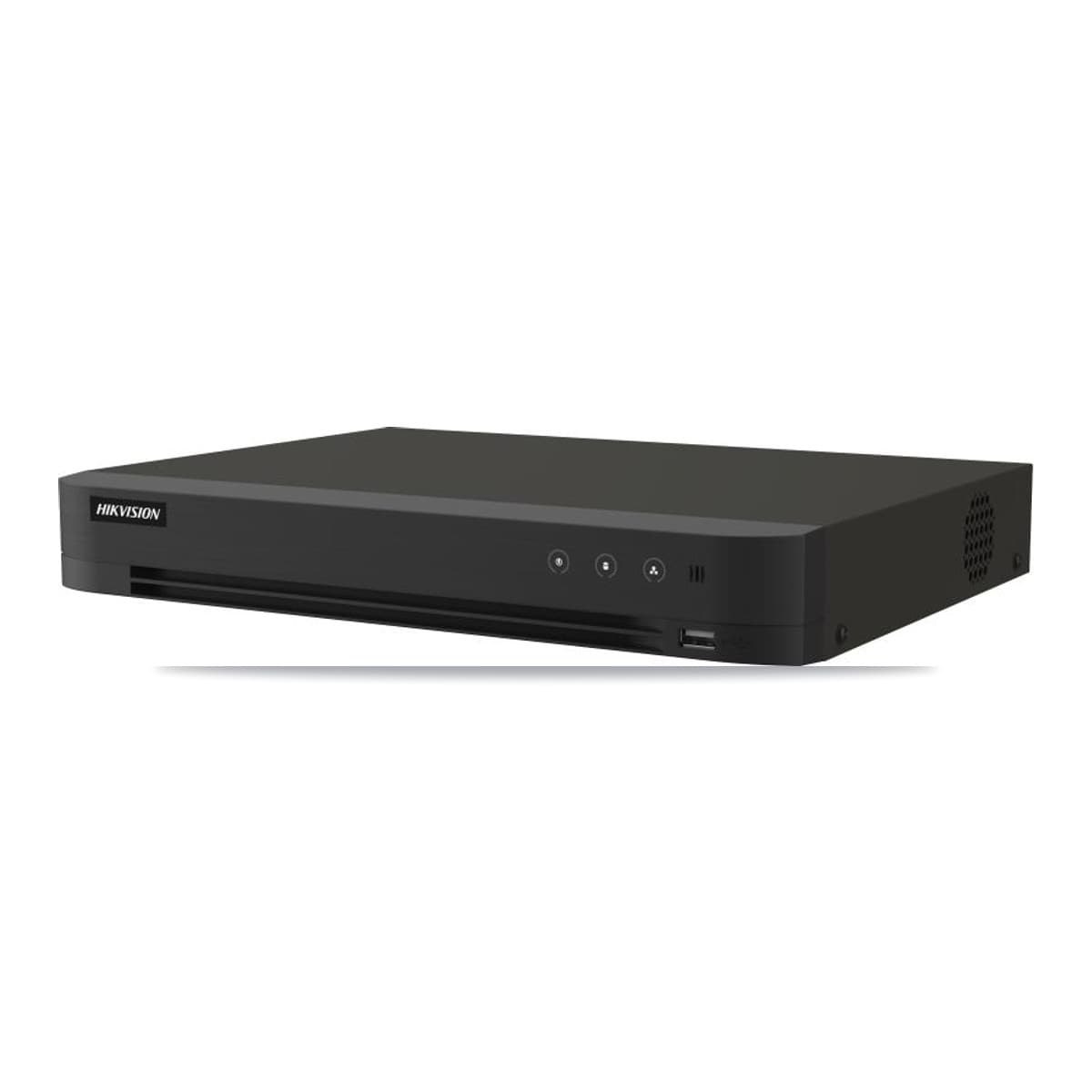

The IDS-7216HQHI-M1/XT is a 16-channel, 1U, single-HDD hybrid DVR built for jobs that mix analogue and IP cameras on one recorder.
Input and recording
Five signal types are accepted adaptively per analogue channel — HDTVI, AHD, CVI, CVBS and IP — so existing coax runs don't need ripping out on an upgrade. Analogue recording tops out at 3K/5MP Lite at 12fps, encoded in H.265 Pro+ to cut bitrate and storage load versus H.264. Switch the unit to hybrid mode and it scales to 24 IP camera inputs, each accepting up to 6MP, with decoding rated at 24×1080p@30fps for multi-channel live view and playback.
AcuSense analytics
Deep-learning AcuSense classifies human and vehicle motion to cut false triggers from irrelevant movement. Facial recognition runs on up to 4 analogue channels, or step up to perimeter protection on up to 8 channels — the two features are mutually exclusive channel allocations, not additive. All 16 channels get motion detection and HDTVI two-way audio; AcuSearch runs across all 16 for fast event retrieval.
Storage and outputs
One SATA bay takes a single HDD up to 12TB, with NAS and iSCSI available for network-attached expansion beyond that. HDMI output runs to 4K; VGA is capped at Full HD — plan monitor selection accordingly on multi-output installs.
Also listed under part numbers IDS-7216HQHI-M1/XT-NO-HDD and IDS-7216HQHI-M1/XT+NO-HDD for no-HDD stock variants of the same unit.
Specifications
- Model
- iDS-7216HQHI-M1/XT
- Series
- M-Series
- Channels
- 16-CH
- Max Resolution
- 5MP
- Max Analog Resolution
- 5MP
- IP Channels (Hybrid)
- Up to 24
- Video Compression
- H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
- Recording Resolution
- 5MP Lite, 3K Lite, 4MP Lite, 1080p, 720p
- Frame Rate
- 12 fps @ 5MP Lite / 15 fps @ 4MP Lite
- Decoding Capability
- Up to 24 × 1080p @ 30fps
- HDMI/VGA Independent
- Sync
- BNC Output
- Yes
- Max HDD per Bay
- 12TB
- Max Total Storage
- 12TB
- eSATA Port
- No
- AcuSense
- Yes
- DeepinMind / AI
- No
- Human & Vehicle Detection
- Yes
- Face Detection
- Yes
- Face Recognition
- Yes
- Perimeter Protection
- Yes
- Line Crossing
- Yes
- Intrusion Detection
- Yes
- False Alarm Filtering
- Yes
- People Counting
- No
Technical Specifications
Frequently Asked Questions
Can facial recognition and perimeter protection run at the same time?
No — facial recognition uses up to 4 analogue channels and perimeter protection uses up to 8, and these are alternative deep-learning allocations rather than simultaneous features.
How many IP cameras can the IDS-7216HQHI-M1/XT take alongside analogue channels?
In hybrid mode it supports up to 24 IP camera inputs, each up to 6MP resolution.
What's the maximum HDD capacity supported?
One SATA interface is fitted, supporting a single HDD up to 12TB, with NAS and iSCSI available for further network storage expansion.
Is this the same DVR as the IDS-7216HQHI-M1/XT-NO-HDD listing?
Yes — IDS-7216HQHI-M1/XT-NO-HDD and IDS-7216HQHI-M1/XT+NO-HDD are the same unit listed as no-HDD stock variants.
