Product Description

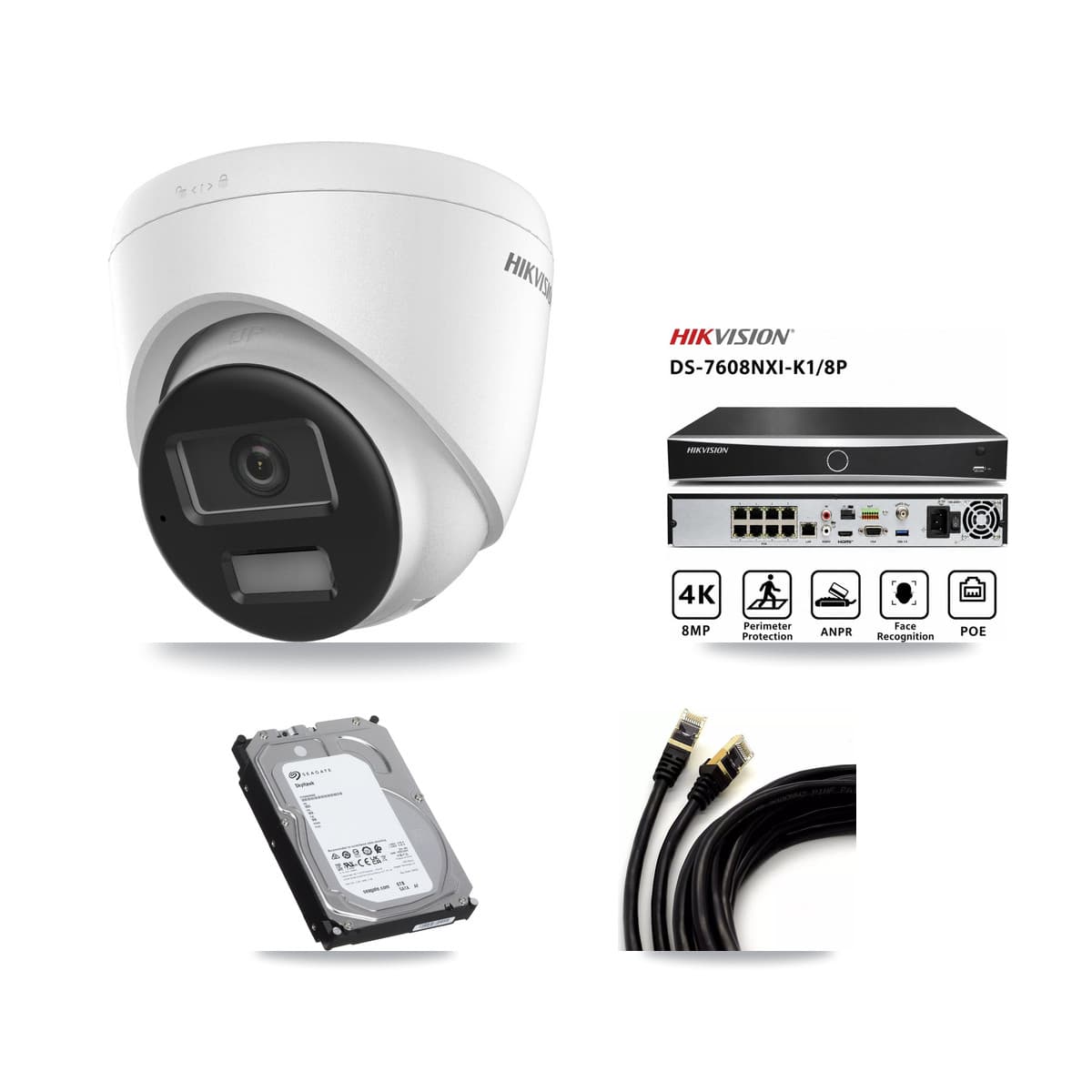

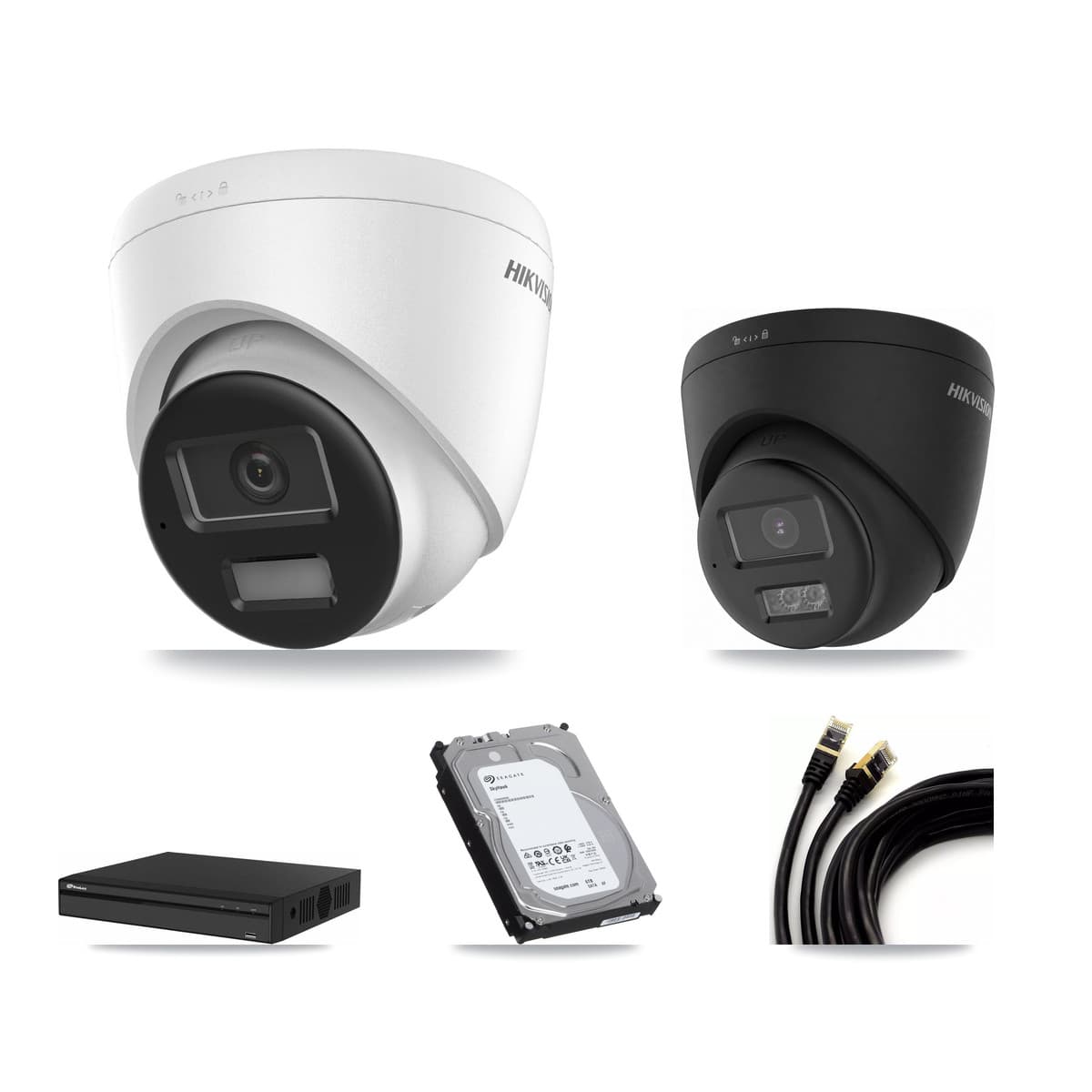

DS-2CD1383G2-LIUF/SL — 8MP Smart Hybrid Light turret, PoE (802.3af) or 12V DC, IP67.
One-line answer: this is an 8MP (3840 × 2160) fixed turret with combined IR/white-light illumination, built-in two-way audio, and onboard microSD recording, intended for outdoor perimeter and yard coverage where both image detail and active deterrence are required.
Key specs
- Sensor/resolution: 1/2.7" progressive scan CMOS, 3840 × 2160 (8MP)
- Illumination: Smart Hybrid Light — IR and white light, up to 30m range, auto-switching on detection
- Audio: built-in microphone and speaker, two-way audio
- Analytics: human/vehicle classification with false-alarm filtering
- Storage: onboard microSD, up to 512GB
- Compression: H.265+
- Power: PoE (IEEE 802.3af) or 12V DC
- Housing: IP67-rated, outdoor-rated
On the job
For PoE runs, budget for standard 802.3af draw; the datasheet does not specify a wattage figure here, so check your switch/injector spec against Hikvision's official power rating before finalising a design. The Smart Hybrid Light's automatic IR/white-light switching gives colour evidence at night rather than mono IR, which matters when a client wants recognisable footage, not just detection.
Integration
Works with Hikvision NVR systems and ONVIF-compatible VMS platforms — confirm firmware/ONVIF profile compatibility with your specific NVR generation before mixed-fleet deployment, as SOURCE does not list specific NVR model numbers.
Housing is IP67, so it's suited to exposed turret mounting positions without additional enclosures.
Specifications
- Model
- DS-2CD1383G2-LIUF/SL
- Resolution
- 8MP (4K)
- Housing Material
- Metal & Plastic
- Low Light
- Yes
- ColorVu
- Yes
- White Light
- Yes
- Day/Night Mode
- Auto
- Built-in Microphone
- Yes
- Built-in Speaker
- Yes
- Two-Way Audio
- Yes
- Motion Detection
- Smart
- Human Detection
- Yes
- Vehicle Detection
- Yes
- Line Crossing
- No
- Intrusion Detection
- No
- Face Detection
- No
- Face Recognition
- No
- False Alarm Filtering
- Yes
- AI Analytics
- Yes
- PoE Support
- Yes
- PoE Standard
- IEEE 802.3af, Class 3
- Power Supply
- 12V DC ±25% PoE IEEE 802.3af
- Max Power
- 9.5W max (PoE) 8W max (12V DC)
- IP Rating
- IP67
- Video Compression
- H.265+
Technical Specifications
Frequently Asked Questions
What resolution does the DS-2CD1383G2-LIUF/SL record at?
It uses a 1/2.7" progressive scan CMOS sensor delivering 8MP (3840 × 2160) video, encoded with H.265+ for bandwidth efficiency.
How does the Smart Hybrid Light work?
It combines IR and white-light illumination, providing night visibility up to 30 metres and switching automatically between IR and full-colour modes based on detection events.
Can this camera run on standard PoE?
Yes, it supports PoE via IEEE 802.3af as well as 12V DC power input. Confirm your switch or injector's power budget against Hikvision's official rating for this model before installation.
What storage options does it support?
It has a built-in microSD card slot supporting onboard storage up to 512GB, allowing standalone recording without an NVR.
Is it suitable for outdoor installation?
Yes, the housing is IP67-rated, providing protection against dust and water ingress for outdoor deployment.
