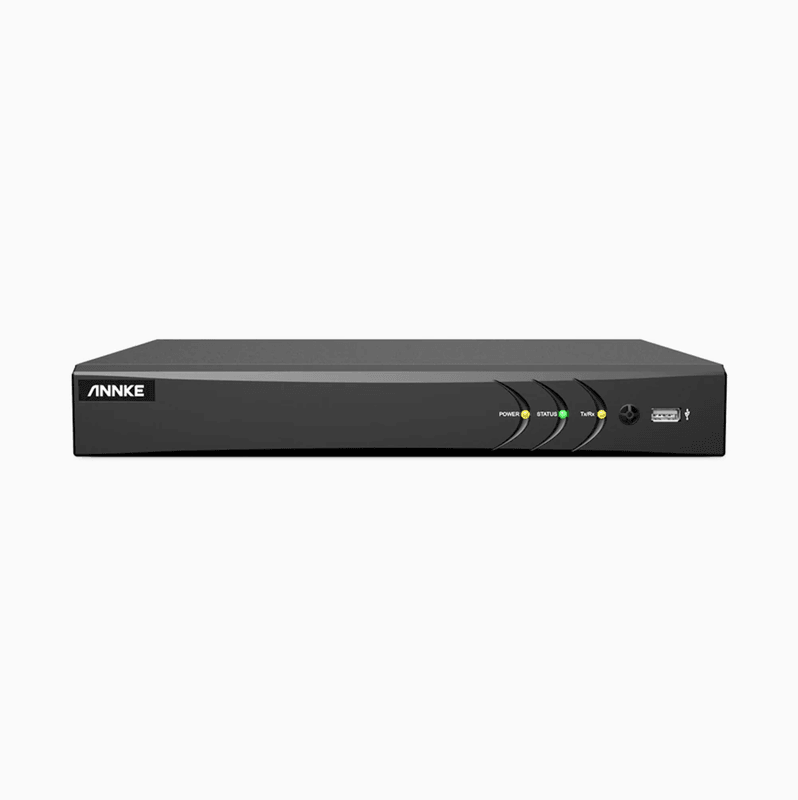

ANNKE 8MP 4K 8 Channel Hybrid 5-in-1 Digital Video Recorder, H.265+, Supports up to 8 BNC Cameras & 4 IP Cameras
SKU: AN-DV8-8MP-DT81DPCopied!
The ANNKE DT81DP is an 8-channel hybrid DVR that supports up to 8MP (4K) resolution for analog HD cameras. It is compatible with multiple analog standards (TVI, AHD, CVI, CVBS) and IP cameras, offering flexibility for both new installations and upgrades. With advanced features like H.265+ compression, smart motion detection, and remote access capabilities, it is suitable for various surveillance needs.
Out of Stock
Currently unavailable
Currently Unavailable
This item is out of stock. Check back later!
Product Description
Key Features
Hybrid Support: Compatible with TVI, AHD, CVI, CVBS, and IP cameras, allowing integration of existing and new cameras.
High Resolution: Supports up to 8MP (4K) resolution for analog channels.
Advanced Compression: Utilizes H.265+ video compression for efficient storage and bandwidth usage.
Smart Detection: Features human and vehicle detection to reduce false alarms.
Remote Access: Allows viewing and control via mobile apps and web browsers.
Multiple Outputs: Offers HDMI and VGA outputs for local monitoring.
Audio Support: Includes audio input and output for two-way communication.
Storage: Supports a single SATA hard drive for storage (capacity varies by model).
User Interface: Features a user-friendly interface for easy setup and operation.
Technical Specifications
Specification Detail
Model DT81DP
Channels 8 analog BNC inputs + 4 IP camera inputs
Max Analog Resolution 8MP (4K) for analog channels
Compression H.265+, H.265, H.264+, H.264
Video Outputs HDMI & VGA (up to 4K resolution)
Audio I/O 1 × RCA input / 1 × RCA output
IP Camera Support Up to 6MP resolution for IP channels
Storage Interface 1 × SATA interface (supports large HDDs, e.g., 1TB or more)
Network Interface 1 × RJ-45 Ethernet 10/100 Mbps
USB Ports 1 × USB 2.0, 1 × USB 3.0
Power Supply 12V DC
Operating Temperature Approximately -10°C to +55°C
Dimensions Approximately 260 × 222 × 45 mm
Weight ≤ 2 kg (without HDD)
Applications / Use Cases
Home Security: Ideal for residential properties seeking high-resolution surveillance.
Business Surveillance: Suitable for small to medium-sized businesses requiring flexible camera integration.
Upgrades: Perfect for upgrading existing analog systems to higher resolution without replacing all cameras.
Remote Monitoring: Enables users to monitor their property remotely via mobile apps and web browsers.
