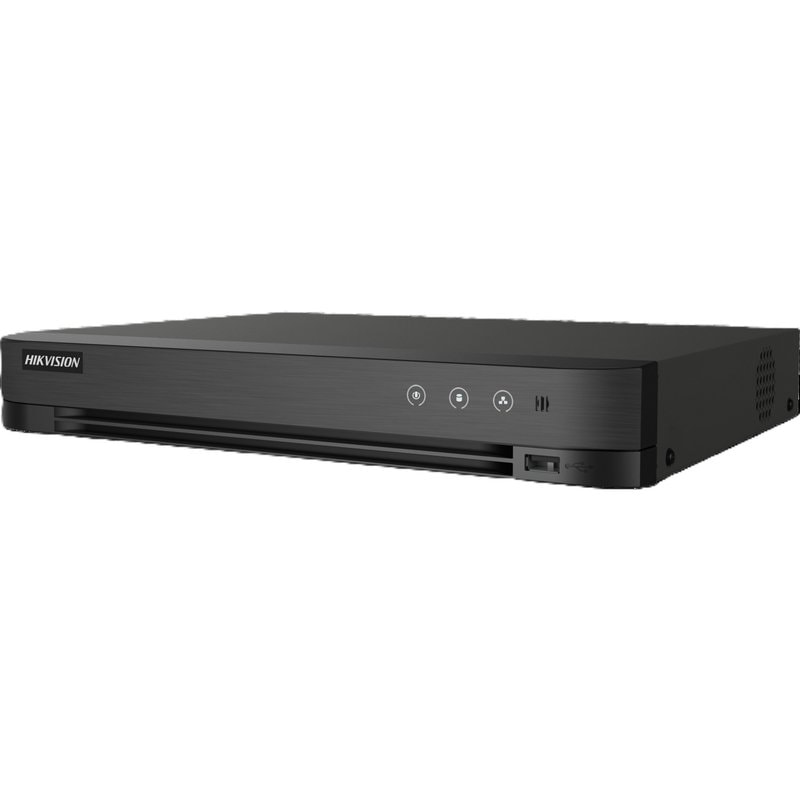

Prolux – 8 Channel 4MP AcuSense Digital Video Recorder (DVR)

PXD-8208-HYK4MP is an 8-channel hybrid DVR in a single-bay 260 case, built for HDTVI/AHD/CVI/CVBS/IP mixed installs where the analogue estate is being phased into IP without a forklift upgrade.

Key specs

• Inputs: 5 signal types accepted adaptively — HDTVI, AHD, CVI, CVBS, IP
• IP add-on capacity: up to 12 network cameras alongside the 8 analogue/HD-CVI channels
• Compression: H.265 pro+ for reduced bitrate at a given storage budget
• Encoding ceiling: 1080p @ 15 fps
• Storage: 1 HDD bay (260 case)
• Power: 12 VDC, ≤9 W consumption without HDD fitted
• Operating range: -10°C to +55°C, 10–90% humidity — suits unheated cupboards and plant rooms
• Physical: 265 × 225 × 48 mm, ≤1.6 kg without HDD

Spec notes for the job sheet

The 15 fps encoding ceiling at 1080p is worth flagging to the client before quoting — it's adequate for general scene coverage but not smooth-motion capture; check requirements against this before committing to camera count. Single HDD bay means storage duration planning should factor in H.265 pro+'s bitrate savings rather than raw drive count.

This unit reads as an entry/mid-tier hybrid recorder rather than a high-channel-density enterprise NVR — best matched to sites with 8–20 total camera endpoints where mixed legacy and IP feeds need one box.

No mains adaptor, HDD, or camera compatibility list beyond the signal types above is confirmed in this listing — verify against the installed camera's output standard before ordering.
