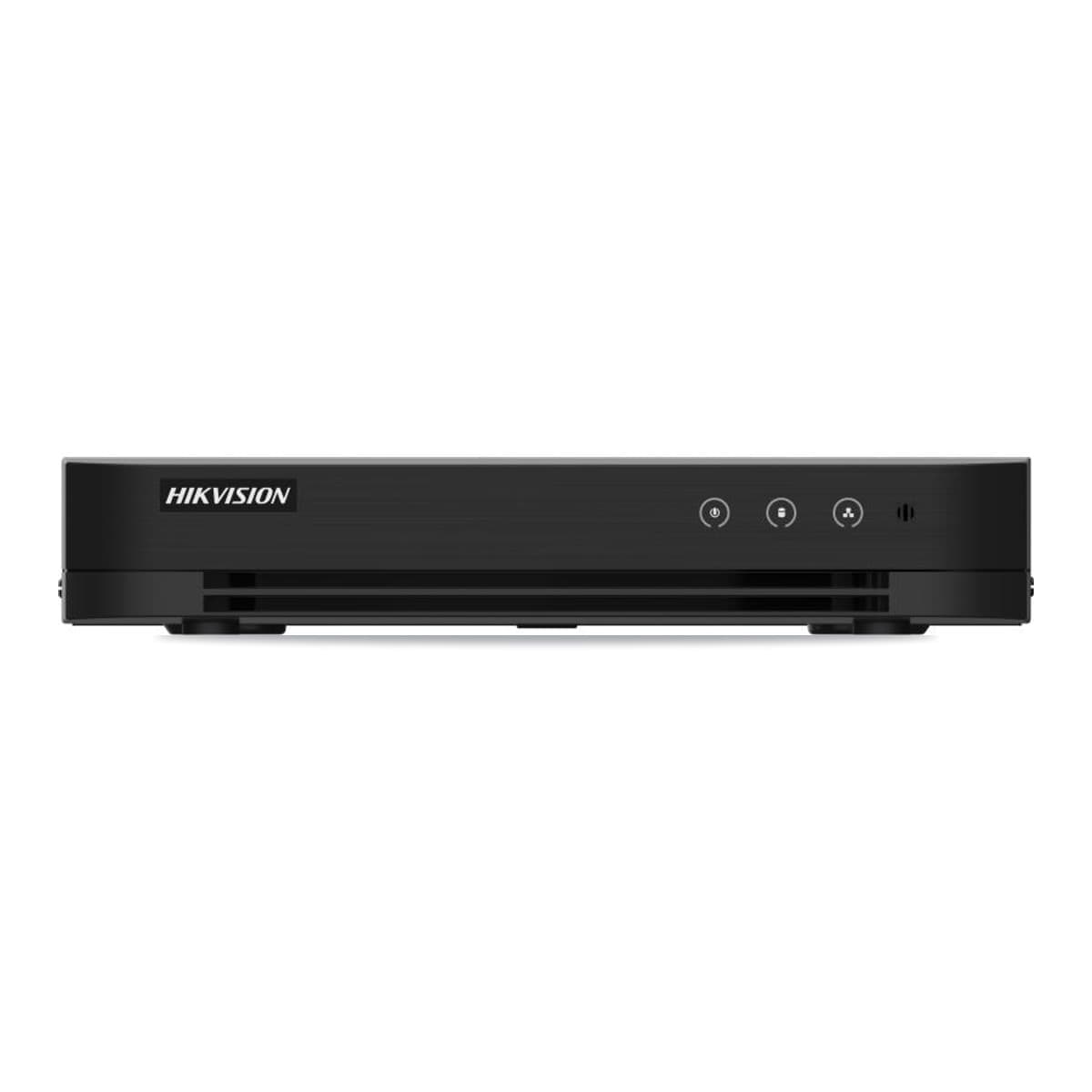

HIKVISION 8-ch 1080p 1U H.265 DVR
SKU: DS-7208HGHI-M1Copied!
Deep learning based human and vehicle targets classification of Motion Detection 2.0 H.265 Pro+/H.265 Pro/H.265 video compression HDTVI/AHD/CVI/CVBS/IP video input Audio via coaxial cable Up to 10-ch IP camera input (up to 5 MP) Encoding ability up to 1080p lite @ 15 fps Max. 1200 m for 720p HDTVI signal
In Stock
Ready to ship • 395 available
Documents & Manuals
Product Description
Channel and input architecture
DS-7208HGHI-M1 is a 1U hybrid DVR: 8 analogue channels (HDTVI/AHD/CVI/CVBS) plus IP expansion, giving a maximum of 10 channels when IP cameras are added on top of the 8 analogue inputs. IP inputs accept resolutions up to 5MP; encoding on the DVR itself tops out at 1080p lite @ 15fps, so plan channel loading and frame-rate expectations accordingly on mixed-generation sites.
Cabling and signal reach
Rated for up to 1200m on a 720p HDTVI signal over coax — useful for retrofitting long analogue runs without pulling new cable. Audio is carried over the same coaxial run (no separate audio cable needed at the camera end), with RCA in/out also present at the DVR.
Compression and detection
H.265 Pro+/H.265 Pro/H.265 supported, reducing bitrate and storage draw versus older H.264 estates — relevant when this unit is dropped into a system alongside legacy recorders. Motion Detection 2.0 adds deep-learning human/vehicle classification to cut false triggers from foliage, shadow and weather movement.
Storage, network and output
Single SATA bay, max 4TB. Network is 10/100 Mbps Ethernet, sufficient for Hik-Connect remote access and configuration but a consideration if you're pairing with high-bitrate IP channels. HDMI and VGA outputs run simultaneously up to 1920×1080.
Also listed under MPN DS-7208HGHI-K1 and as the no-HDD variant DS-7208HGHI-M1+NO-HDD — check which is on the order before quoting a fitted-drive job.
Technical Specifications
Frequently Asked Questions
How many channels does the DS-7208HGHI-M1 actually support?
8 analogue channels (HDTVI/AHD/CVI/CVBS) natively, with the total rising to a maximum of 10 channels when IP cameras are added in hybrid mode.
What is the maximum cable run for analogue cameras?
Up to 1200m is stated for a 720p HDTVI signal over coax; actual reach depends on cable quality and signal type.
What resolution can IP cameras added to this DVR reach?
Up to 5MP per IP channel, though the DVR's own encoding is limited to 1080p lite at 15fps.
How much storage can I fit?
One SATA hard drive up to 4TB capacity. A no-HDD variant (DS-7208HGHI-M1+NO-HDD) is also listed if you're supplying your own drive.
Is this the same unit as the DS-7208HGHI-K1?
DS-7208HGHI-K1 is listed as an alternative MPN for this product; confirm against your order reference before quoting, as part numbers can vary by batch.
