Hikvision 16-Channel 4MP – 4K CCTV Kit — 9 4K Turret + 4 4MP Bullet Cameras + 2× 14TB Recording (DS-7616NI-M2 Recorder)
SKU: KIT-IP16-DS7616NIM216-DS2CD1383G2LX13-2X14TB-HGZCMCopied!
Built on: Hikvision DS-7616NI-M2/16P + 9× Hikvision DS-2CD1383G2-LIU + 4× Hikvision DS-2CD2T47G2H-LISU/SL. Keeps about 29 days of continuous footage on the included 2× 14TB hard drives (28TB in total).
Low Stock
Only 1 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

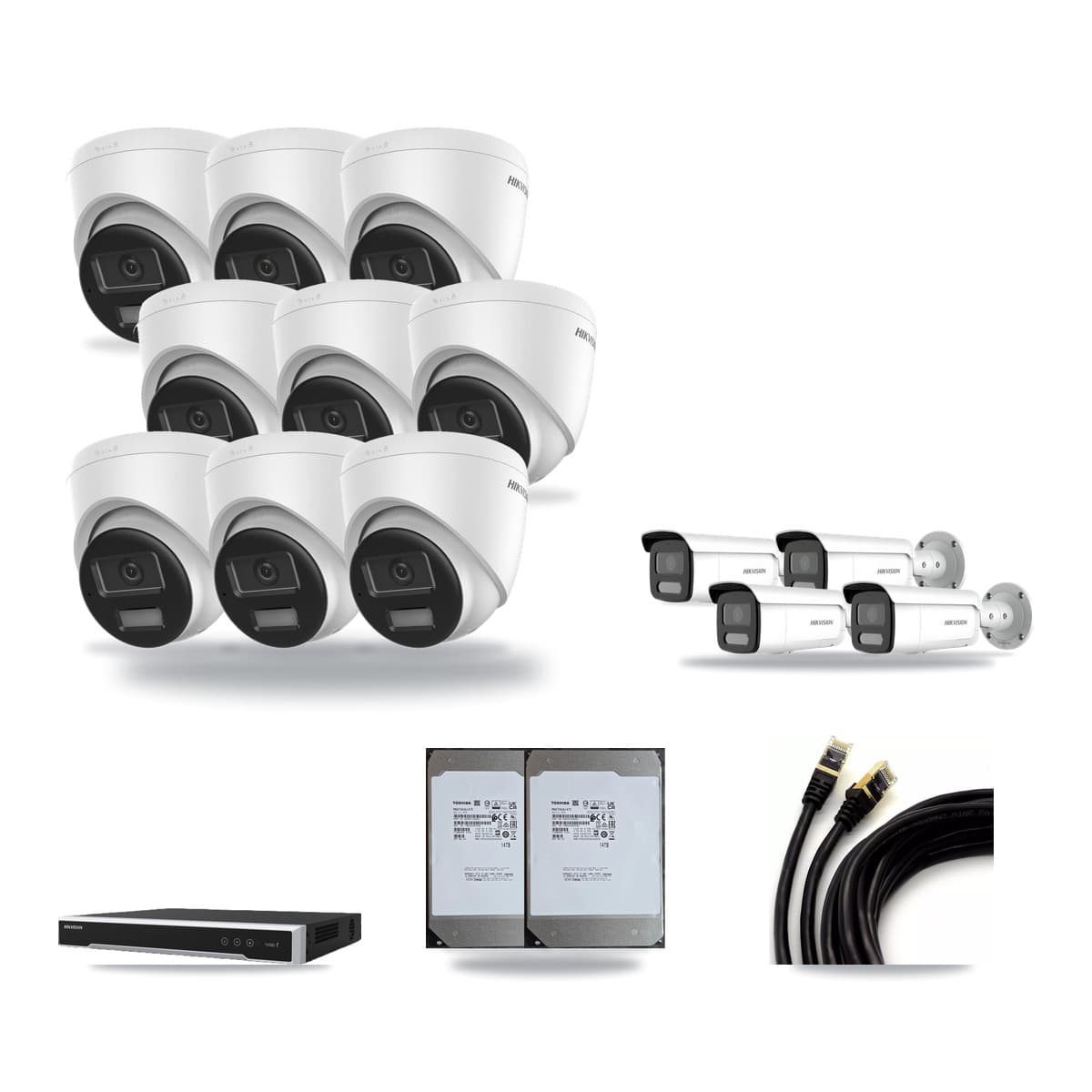

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a large property or yard — 13 cameras, keeps about 29 days of footage, one network cable per camera carries the picture and the power.
The recorder
Hikvision 16-ch 1U 16 PoE 8K NVR
The box that saves everything and runs the app
The cameras× 9
Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic
What goes on the wall
The cameras× 4
Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
What goes on the wall
The hard drive× 2
Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM
Where the footage is kept
The cable× 13
Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 16-channel IP (PoE) CCTV kit built on the Hikvision DS-7616NI-M2/16P + 9× Hikvision DS-2CD1383G2-LIU + 4× Hikvision DS-2CD2T47G2H-LISU/SL. 13 cameras at 4MP + 4K (8MP) — sized for a larger property or yard. The included 2× 14TB hard drives (28TB in total) hold about 29 days of continuous recording — the estimate assumes recording all 13 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 13× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. In the box: 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 9× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic; 4× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera; 2× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 13× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7616NI-M2/16P + 9× Hikvision DS-2CD1383G2-LIU + 4× Hikvision DS-2CD2T47G2H-LISU/SL
- Recorder
- 16-channel Hikvision 16-ch 1U 16 PoE 8K NVR
- Cameras included
- 9× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic; 4× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
- Camera resolution
- 4MP + 4K (8MP)
- Storage
- 2× 14TB (28TB total) HDD — about 29 days of footage, recording all 13 cameras continuously at high quality (H.265) — the load is 9× 8MP + 4× 4MP
- Cables & PSU included
- 13× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 9× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic; 4× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera; 2× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 13× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
