What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
13 cameras included, keeps about 28 days of footage, uses network cameras; check the listed power equipment and cable requirements.
Recorder capacity
13 included cameras use 13 of the recorder’s 16 channels. 3 channels remain for expansion. Before adding cameras, check supported resolution, recording bandwidth and available power or PoE ports.
Recording storage
16TB storage is included. Estimated recording time: about 28 days with continuous H.265 recording. The estimate uses 2 Mbps per camera up to 2MP, 4 Mbps up to 5MP and 8 Mbps above 5MP, summed for mixed camera models. Actual retention depends on settings, scene activity and usable drive capacity; motion-only recording varies with activity.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
Price on request
One part of this kit — the Seagate Exos X16 ST16000NM001G 16TB 3.5" SATA Enterprise HDD 7200RPM — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
1× Prolux PXN-5216-16P-4KS2E 16 Channel 8MP 4K ePoE IP CCTV NVR
The box that saves everything and runs the app
The cameras
13× Dahua IPC-HFW3541E-AS-S2 5MP IP Bullet Camera IR 50m PoE WizSense AI
What goes on the wall
The hard drive
1× Seagate Exos X16 ST16000NM001G 16TB 3.5" SATA Enterprise HDD 7200RPM
Where the footage is kept
The cable
13× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description

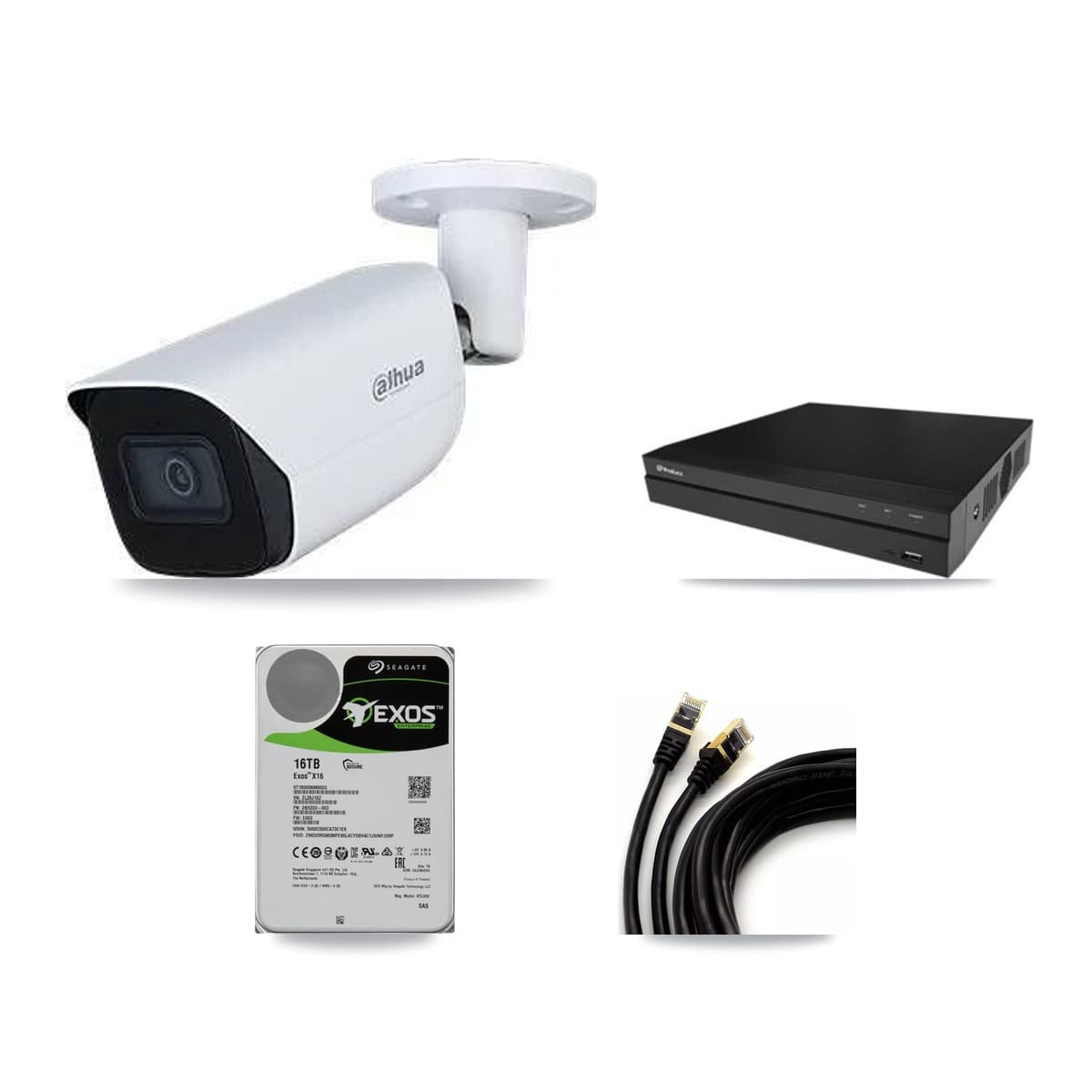

A complete 16-channel IP (PoE) CCTV kit built on the Prolux PXN-5216-16P-4KS2E + 13× Dahua IPC-HFW3541E-5MP-IR50M. 13 cameras at 5MP — sized for a larger property or yard. The included 16TB hard drive holds about 28 days of continuous recording — the estimate assumes recording all 13 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 13× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. In the box: 1× Prolux PXN-5216-16P-4KS2E 16 Channel 8MP 4K ePoE IP CCTV NVR; 13× Dahua IPC-HFW3541E-AS-S2 5MP IP Bullet Camera IR 50m PoE WizSense AI; 1× Seagate Exos X16 ST16000NM001G 16TB 3.5" SATA Enterprise HDD 7200RPM; 13× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable.
Specifications
- System type
- IP (network)
- Built on
- Prolux PXN-5216-16P-4KS2E + 13× Dahua IPC-HFW3541E-5MP-IR50M
- Recorder
- 16-channel Prolux PXN-5216-16P-4KS2E 16 Channel 8MP 4K ePoE IP CCTV NVR
- Cameras included
- 13× Dahua IPC-HFW3541E-AS-S2 5MP IP Bullet Camera IR 50m PoE WizSense AI
- Camera resolution
- 5MP
- Storage
- 16TB HDD — about 28 days of footage, recording all 13 cameras continuously at high quality (H.265)
- Cables & PSU included
- 13× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- What's in the box
- 1× Prolux PXN-5216-16P-4KS2E 16 Channel 8MP 4K ePoE IP CCTV NVR; 13× Dahua IPC-HFW3541E-AS-S2 5MP IP Bullet Camera IR 50m PoE WizSense AI; 1× Seagate Exos X16 ST16000NM001G 16TB 3.5" SATA Enterprise HDD 7200RPM; 13× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
