What's in the box
Full parts list with quantities. Tap a line for its full spec.
12-camera kit · ~7 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
12 included cameras use 12 of the recorder’s 16 channels. 4 channels remain for expansion. Before adding cameras, check supported resolution, recording bandwidth and available power or PoE ports.
Recording storage
4TB storage is included. Estimated recording time: about 7 days with continuous H.265 recording. The estimate uses 2 Mbps per camera up to 2MP, 4 Mbps up to 5MP and 8 Mbps above 5MP, summed for mixed camera models. Actual retention depends on settings, scene activity and usable drive capacity; motion-only recording varies with activity.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
Price on request
The Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM in this kit is a quoted line, so the kit is priced on application rather than with a published total. Remaining parts listed below.
The recorder
1× Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR)
Records every channel and runs the app
The cameras
12× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM
Footage storage
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Single-plug camera power
The cable
12× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Different cameras, a bigger drive or longer runs? Open this kit in the builder and swap any part — each change is re-checked against the rest, so you can't spec parts that don't work together.
Product Description

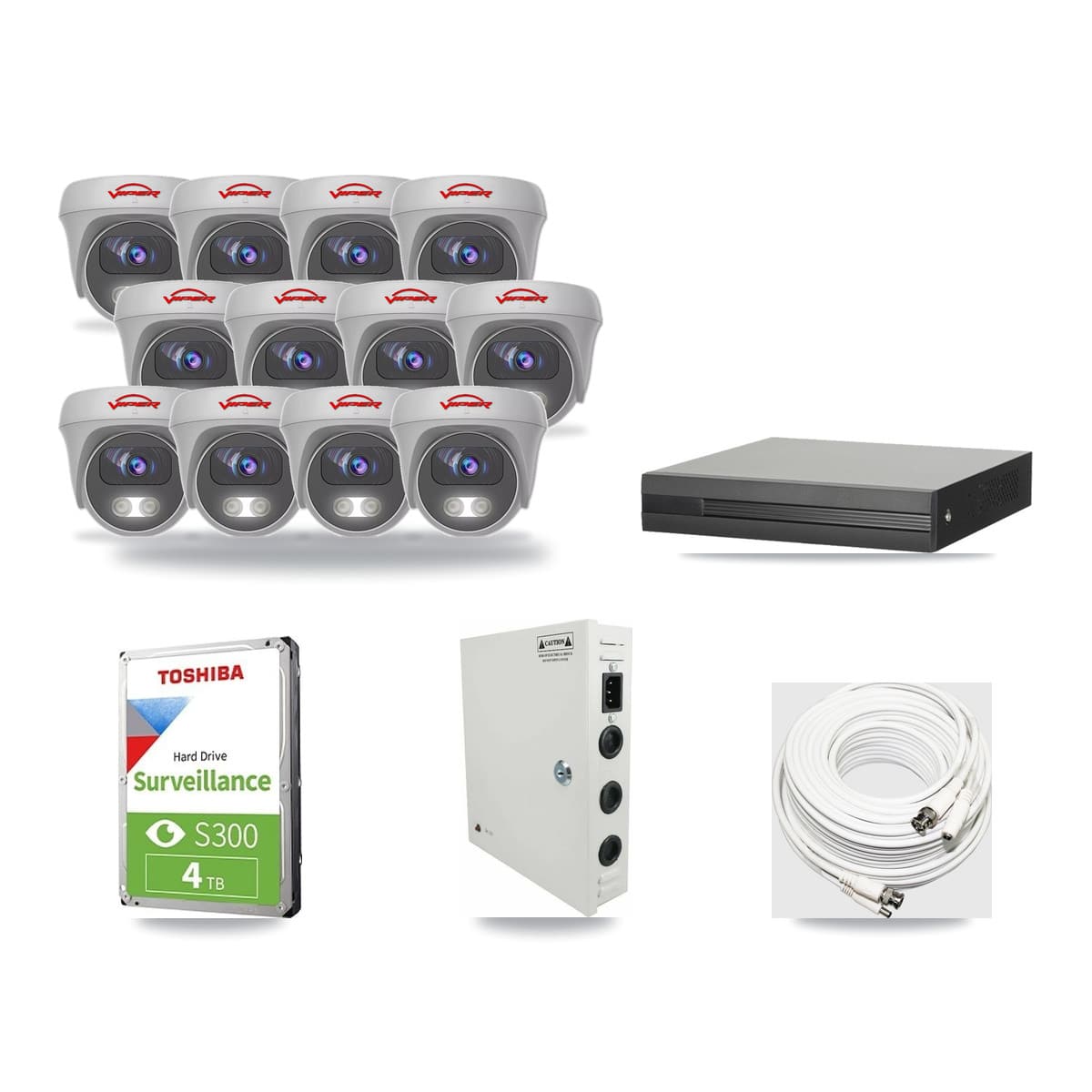

A complete 16-channel HD-over-coax CCTV kit built on the XVR-3116HS-5MP-LITE + 12× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 12 cameras at 5MP — sized for a larger property or yard. The included 4TB surveillance hard drive holds about 7 days of continuous recording — the estimate assumes recording all 12 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 12× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR); 12× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 12× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- XVR-3116HS-5MP-LITE + 12× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 16-channel Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR)
- Cameras included
- 12× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 4TB surveillance HDD — about 7 days of footage, recording all 12 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 12× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR); 12× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 12× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
