What's in the box
Full parts list with quantities. Tap a line for its full spec.
10-camera kit · ~46 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
10 cameras supplied, taking 10 of 16 recorder channels. 6 channels spare for expansion. Adding cameras? Confirm the recorder takes their resolution, has the bandwidth to record them and has power/PoE ports free.
Recording storage
10TB storage supplied. Retention: around 46 days on continuous H.265. Based on 1 Mbps to 2MP, 2 Mbps to 5MP and 4 Mbps over 5MP — per camera, summed across mixed models. On site, retention moves with recorder settings, scene activity and usable HDD capacity; with motion-only recording, expect it to vary with activity.
Before installation
Check the box list for supplied cables, PSUs and mounting accessories. Size cable runs and camera positions to the site — camera count alone doesn't establish coverage. Per position: lens field of view, lighting, weather protection — confirm all three.
Price on request
The Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM in this kit is a quoted line, so the kit is priced on application rather than with a published total. Remaining parts listed below.
The recorder
1× Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR)
Records every channel and runs the app
The cameras
10× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Footage storage
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Single-plug camera power
The cable
10× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Need other cameras, a larger HDD or longer cable runs? Open the kit in the builder to swap parts as required — every swap gets re-checked against the full spec, so you can't build a parts list that won't work together.
Product Description

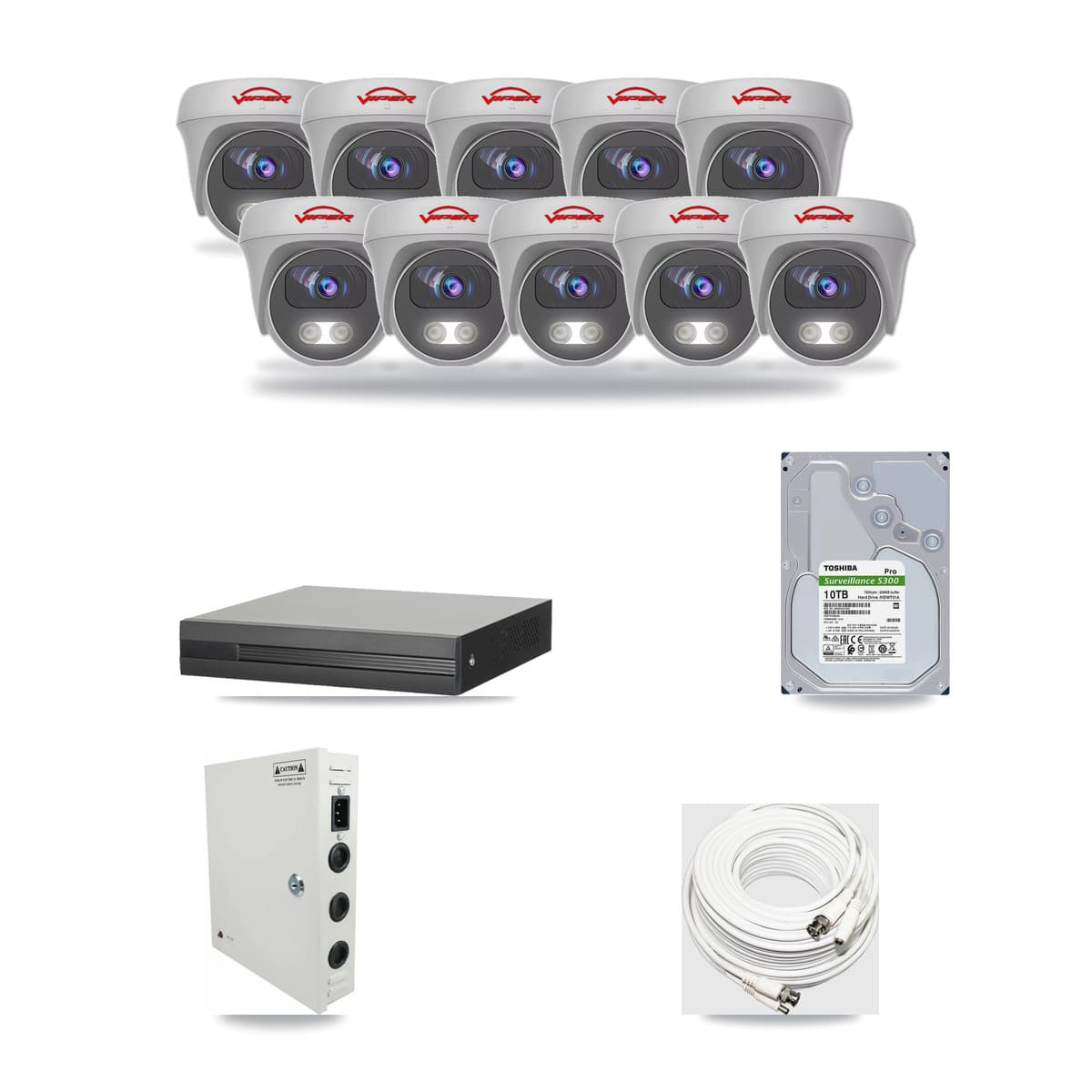

Trade-ready 16ch HD analogue kit — XVR-3116HS-5MP-LITE DVR with 10 off Viper VIPER-5MP-3K-AOC-WHITE-2.8MM cameras. 5MP on the cameras, Smart Light for colour at night. 10TB surveillance HDD supplied: approx 46 days' retention with all 10 channels on continuous H.265, then it overwrites the oldest. PSU/cabling in the kit — 10 off Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1 off 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Complete kit, nothing extra to bring to site. Suits large-site installs. Kit list: 1 off Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR); 10 off VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1 off Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 10 off Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1 off 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- XVR-3116HS-5MP-LITE + 10× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 16-channel Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR)
- Cameras included
- 10× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 10TB surveillance HDD — about 46 days of footage, recording all 10 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 10× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR); 10× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 10× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
