What's in the box
Full parts list with quantities. Tap a line for its full spec.
4-camera kit · ~28 days recording · IP cameras — check the listed power equipment and cabling.
Recorder capacity
4 included cameras use 4 of the recorder’s 4 channels. All stated channels are occupied. A larger system needs a recorder with additional capacity.
Recording storage
5TB storage is included. Estimated recording time: about 28 days with continuous H.265 recording. The estimate uses 2 Mbps per camera up to 2MP, 4 Mbps up to 5MP and 8 Mbps above 5MP, summed for mixed camera models. Actual retention depends on settings, scene activity and usable drive capacity; motion-only recording varies with activity.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
Price on request
The Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954 in this kit is a quoted line, so the kit is priced on application rather than with a published total. Remaining parts listed below.
The recorder
1× Tiandy TC-R3104 4 Channel NVR 6MP PoE H.265 4-Port Network Video Recorder
Records every channel and runs the app
The cameras
4× 5MP AI IP Dome Camera PoE Face Detection IR Night Vision 256GB SD ONVIF IP67
The units that go on the wall
The hard drive
1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954
Footage storage
The cable
4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Camera-to-recorder runs
Different cameras, a bigger drive or longer runs? Open this kit in the builder and swap any part — each change is re-checked against the rest, so you can't spec parts that don't work together.
Product Description

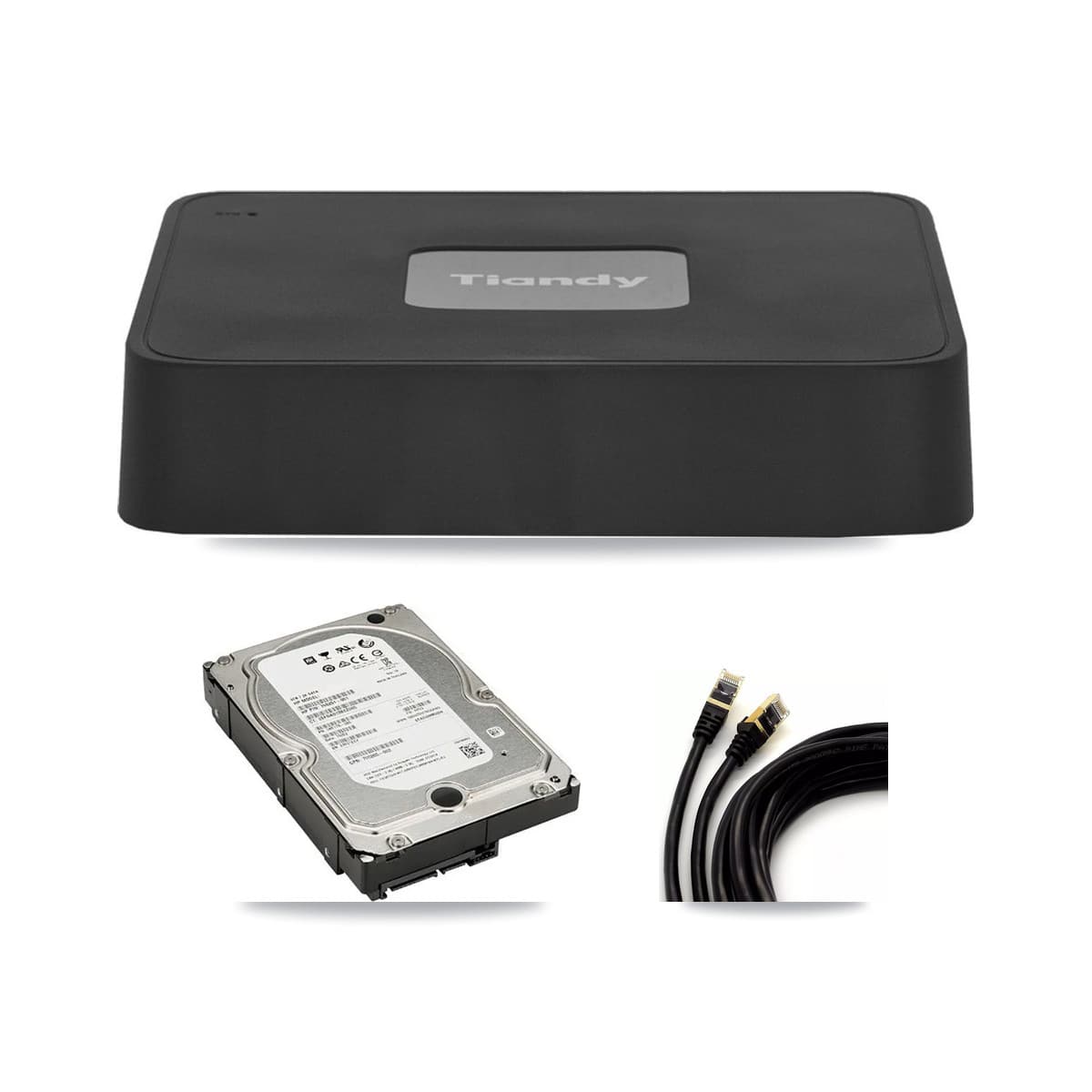

A complete 4-channel IP (PoE) CCTV kit built on the Tiandy TC-R3104-4CH-6MP-POE + 4× LWA28PW-C3. 4 cameras at 5MP — sized for a house or flat. The included 5TB hard drive holds about 28 days of continuous recording — the estimate assumes recording all 4 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. In the box: 1× Tiandy TC-R3104 4 Channel NVR 6MP PoE H.265 4-Port Network Video Recorder; 4× 5MP AI IP Dome Camera PoE Face Detection IR Night Vision 256GB SD ONVIF IP67; 1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable.
Specifications
- System type
- IP (network)
- Built on
- Tiandy TC-R3104-4CH-6MP-POE + 4× LWA28PW-C3
- Recorder
- 4-channel Tiandy TC-R3104 4 Channel NVR 6MP PoE H.265 4-Port Network Video Recorder
- Cameras included
- 4× 5MP AI IP Dome Camera PoE Face Detection IR Night Vision 256GB SD ONVIF IP67
- Camera resolution
- 5MP
- Storage
- 5TB HDD — about 28 days of footage, recording all 4 cameras continuously at high quality (H.265)
- Cables & PSU included
- 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- What's in the box
- 1× Tiandy TC-R3104 4 Channel NVR 6MP PoE H.265 4-Port Network Video Recorder; 4× 5MP AI IP Dome Camera PoE Face Detection IR Night Vision 256GB SD ONVIF IP67; 1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
