Product Description

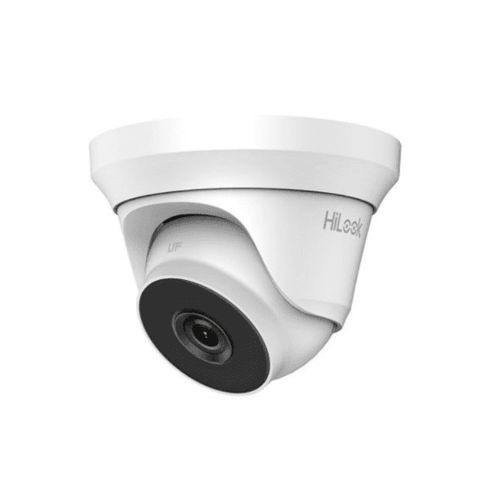

The HiLook THC-T240-M-R 4MP Turret Camera is a fixed-lens Turbo HD unit recording at 2560 × 1440, with a switchable output so it can feed a compatible DVR in whichever of four formats the recorder takes.
Spec sheet
- Resolution: 4 MP, 2560 × 1440
- Video output: switchable TVI, AHD, CVI and CVBS
- Night vision: EXIR 2.0 with Smart IR, up to 40 metres
- Day/night: colour by day, infrared black-and-white in darkness
- Housing: metal, IP66 weather-resistant
- Power: 12V DC
- Lens: 2.8 mm, 3.6 mm or 6 mm fixed, depending on the variant supplied
- Form factor: turret, for indoor and outdoor installations
On site
Match the lens to the coverage you need before ordering, as the focal length is fixed. Because the output is switchable between the four formats, check the format your DVR is set to when commissioning.
Infrared LEDs draw more current at night, so a long 12V DC run or an underrated adapter can show up as flickering or a black picture after dark. Check adapter rating and cable length first if that happens.
Typical applications are homes, shops, offices and building entrances.
Specifications
- Brand
- Hilook
- Model
- THC-T240
- Camera Type
- Analog Camera
- Resolution
- 4MP
- Built-in Microphone
- Yes
- Built-in Speaker
- No
- Two-Way Audio
- No
- Motion Detection
- Basic
- Human Detection
- Yes
- Connection Type
- Analogue
- PoE Support
- No
- Power Supply
- 12V DC
- IP Rating
- IP66
- Video Compression
- H.265
- SD Card Slot
- No
- App Compatibility
- iVMS
- NVR Compatibility
- Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any other NVR that supports ONVIF.
Technical Specifications
Frequently Asked Questions
What video formats does the THC-T240-M-R output?
The output is switchable between TVI, AHD, CVI and CVBS, for connection to a compatible DVR.
What is the night vision range?
EXIR 2.0 with Smart IR gives night vision up to 40 metres, with the camera switching to infrared black-and-white in darkness.
What supply voltage does it need?
It runs on 12V DC.
Which lens sizes are available?
Fixed 2.8 mm, 3.6 mm or 6 mm lenses, depending on the variant supplied.
