Product Description

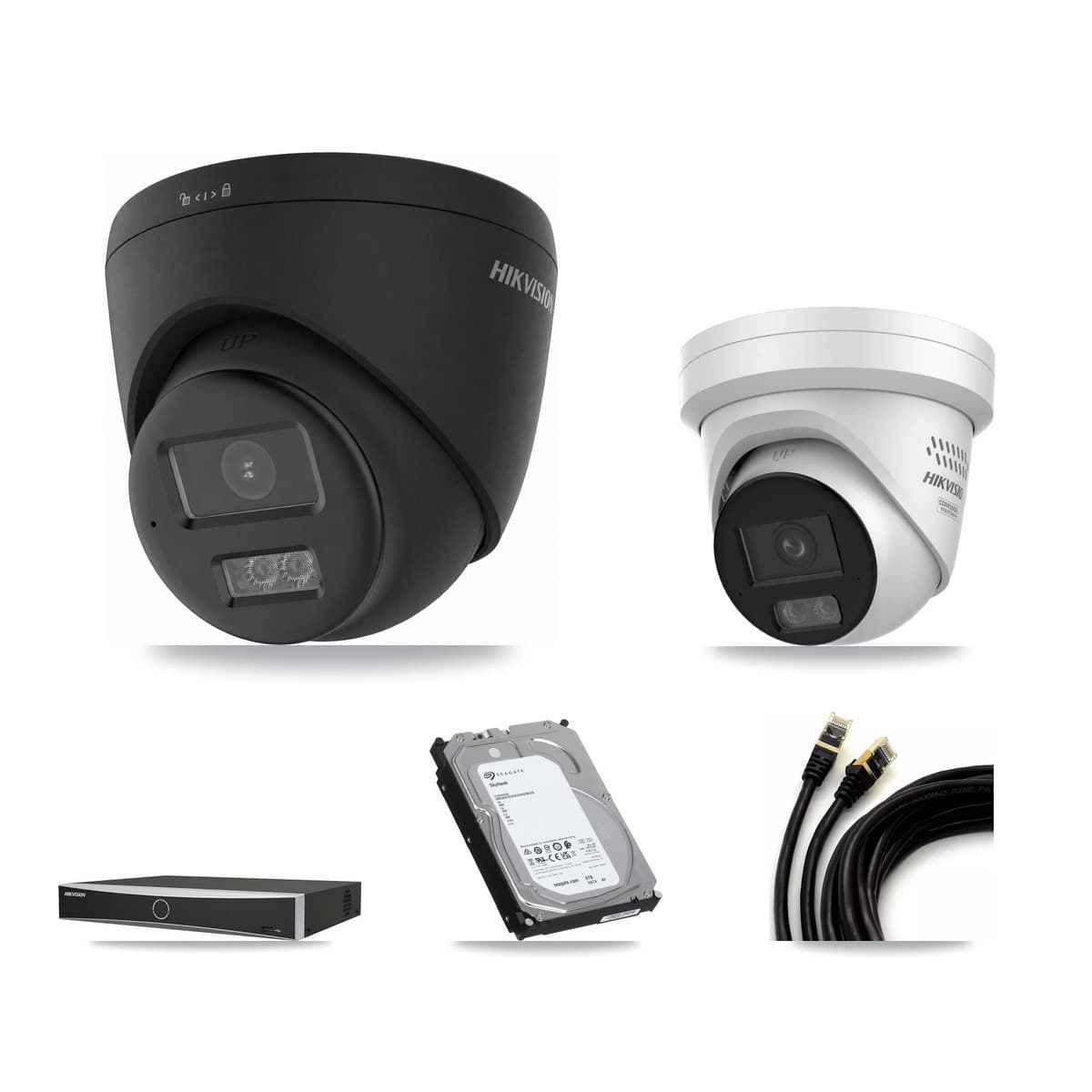

DS-2CD2347G3-LIS2UY/SL is Hikvision's 4MP Smart Hybrid Light Turret Camera | ColorVu, built around a 1/1.8" progressive scan CMOS sensor at 2688 × 1520. Fixed 2.8 mm lens (M16 mount, F1.0 fixed iris) gives 111.1° horizontal / 57.6° vertical / 138.5° diagonal FOV, with DORI figures of D:61 m, O:24 m, R:12 m, I:6 m. Angle adjustment covers pan 0°–360°, tilt 0°–75° and rotate 0°–360°, useful when planning mounting position on site.
Illumination and image processing
ColorVu delivers colour imaging down to 0.0001 Lux (F1.0, AGC on), 0 Lux with supplement light active. Smart Hybrid Light combines IR and white LEDs across three lighting modes, with supplement light range up to 30 m. IR wavelength is 850 nm, with IR cut filter day/night switching. HikAI-ISP handles noise reduction and scene-adaptive WDR balances high-contrast scenes. Deep-learning analytics classify person and vehicle detections, cutting false triggers from irrelevant motion.
Video and network
Main stream runs up to 25 fps at 50 Hz or 30 fps at 60 Hz across 2688 × 1520, 1920 × 1080 and 1280 × 720, with H.265/H.264/H.264+/H.265+ compression. A third stream is supported under certain settings. Bit rate spans 32 Kbps to 8 Mbps, with CBR/VBR control and SVC on both H.264 and H.265. ONVIF Profile S, G and T are supported, alongside ISAPI, SDK and ISUP integration. Simultaneous live view covers up to 6 channels, with up to 32 users across three access levels. The camera works with iVMS-4200, Hik-Connect and HikCentral clients, and supports plug-in-free live view in Chrome 80+, Firefox 80+ and Edge 89+. Network storage covers NAS (NFS, SMB/CIFS) with Auto Network Replenishment (ANR) for gap-filling after connection loss.
Audio and power
Built-in arrayed dual-microphone plus two-way audio, with G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC compression options. An active strobe light and audio alarm can be triggered for on-site deterrence, alongside a dedicated audio and alarm interface. Power is 12 VDC ±25% or PoE. The unit carries an IP67 rating for water and dust resistance, plus an anti-corrosion design rated to NEMA4X.
Specifications
- Max Resolution
- 2688 × 1520
- Minimum Illumination
- Colour: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light
- Shutter Time
- 1 s to 1/100,000 s
- Day & Night
- IR cut filter
- Angle Adjustment
- Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens Type
- Fixed focal lens, 2.8 and 4 mm optional
- Lens Mount
- M16
- Iris Type
- Fixed
- Aperture
- F1.0
- Supplement Light Type
- White Light, IR
- Supplement Light Range
- Up to 30 m
- Smart Supplement Light
- Yes
- IR Wavelength
- 850 nm
- Third Stream
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Bit Rate
- 32 Kbps to 8 Mbps
- H.264 Type
- Baseline Profile, Main Profile, High Profile
- H.265 Type
- Main Profile
- Bit Rate Control
- CBR, VBR
- Scalable Video Coding (SVC)
- H.264 and H.265 encoding
- Region of Interest (ROI)
- 1 fixed region for main stream
- Audio Type
- Mono sound
- Audio Compression
- G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Sampling Rate
- 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering
- Yes
- Protocol
- SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,
Technical Specifications
Frequently Asked Questions
What resolution and lens does the DS-2CD2347G3-LIS2UY/SL run?
It records at 4 MP (2688 × 1520) via a 1/1.8" CMOS sensor with a fixed 2.8 mm lens giving a 111.1° horizontal field of view.
How is the camera powered?
It accepts 12 VDC ±25% or PoE.
