What's in the box
Full parts list with quantities. Tap a line for its full spec.
8-camera kit · ~40 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
8 included cameras use 8 of the recorder’s 8 channels. All stated channels are occupied. A larger system needs a recorder with additional capacity.
Recording storage
14TB storage is included. Estimated recording time: about 40 days with continuous H.265 recording. The estimate uses 2 Mbps per camera up to 2MP, 4 Mbps up to 5MP and 8 Mbps above 5MP, summed for mixed camera models. Actual retention depends on settings, scene activity and usable drive capacity; motion-only recording varies with activity.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
The recorder
1× PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR
Records every channel and runs the app
The cameras
8× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
1× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM
Footage storage
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Single-plug camera power
The cable
8× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Different cameras, a bigger drive or longer runs? Open this kit in the builder and swap any part — each change is re-checked against the rest, so you can't spec parts that don't work together.
Product Description

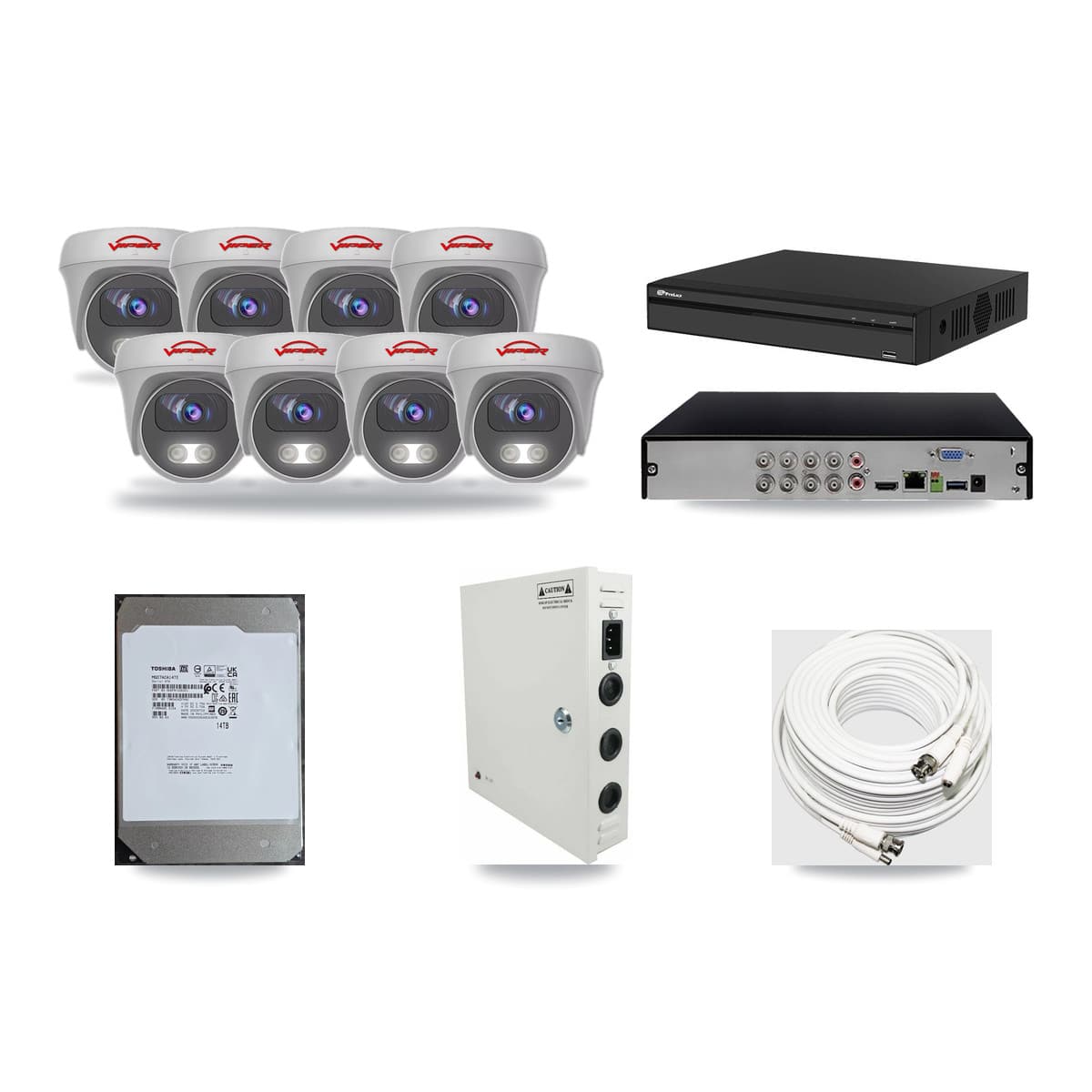

A complete 8-channel HD-over-coax CCTV kit built on the Prolux PXD-5108HS-4K/X1 + 8× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 8 cameras at 5MP — sized for a shop or small office. The included 14TB hard drive holds about 40 days of continuous recording — the estimate assumes recording all 8 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 8× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR; 8× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 8× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5108HS-4K/X1 + 8× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR
- Cameras included
- 8× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 14TB HDD — about 40 days of footage, recording all 8 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 8× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- What's in the box
- 1× PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR; 8× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 8× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
