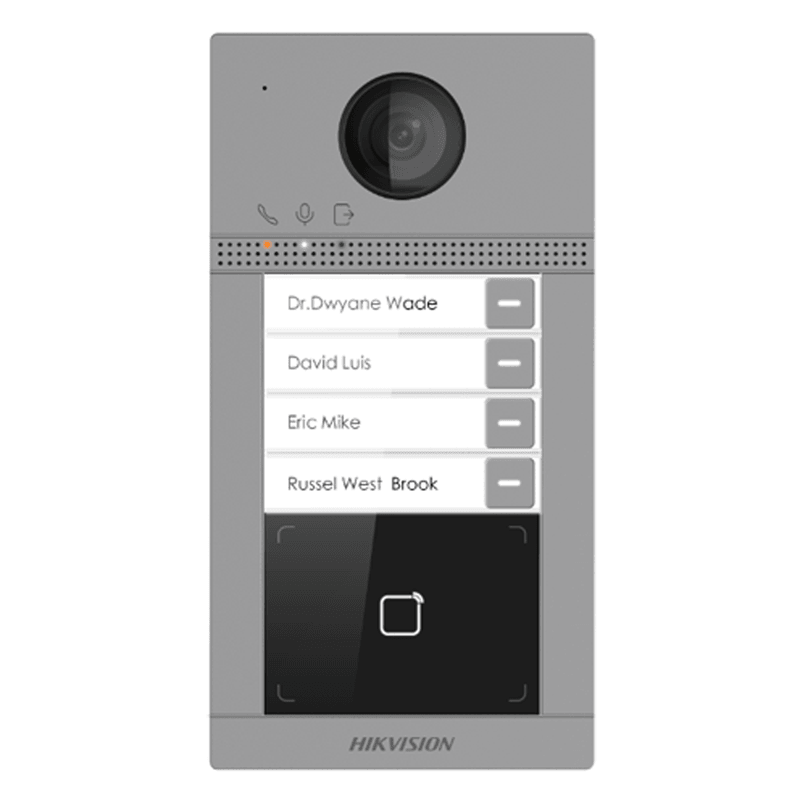

Hikvision DS-KV8413-WME1 4 Button IP Video Intercom Door Station
SKU: DS-KV8413-WME1Copied!
• 4 button IP villa door station for multi user entry • Built-in WiFi for convenient installation • 2MP HD camera with IR illumination • Integrated Mifare card reader for access control • Supports up to 4 indoor stations • Aluminium alloy housing with IP65 and IK08 rating • Supports PoE or 12V DC power supply • Noise suppression and echo cancellation audio
Low Stock
Only 1 left - order soon!
Documents & Manuals
Product Description
DS-KV8413-WME1 is a 4-button IP villa door station built for multi-tenant entrances, supporting up to 4 indoor stations from a single unit.
Key specs
- Camera: 2MP HD with IR illumination for day/night visitor ID
- Access control: integrated Mifare card reader, up to 4 users
- Power: PoE or 12V DC — spec to installer preference
- Connectivity: built-in WiFi plus web configuration for remote setup
- Housing: aluminium alloy, IP65 weatherproof, IK08 impact-rated
- Audio: noise suppression and echo cancellation for clear two-way calls
Deployment notes
Four call buttons map directly to four indoor stations, so this unit suits shared entrances — small blocks, villas with staff quarters, or multi-tenant conversions — rather than single-dwelling installs.
PoE support simplifies cable runs on jobs where a single Cat5e/6 drop is preferable to running separate 12V DC; both options are supported on the same unit, so the choice is down to existing site infrastructure rather than a hardware limitation.
IP65 and IK08 ratings make it viable for exposed external mounting positions, including sites prone to knocks or attempted tampering.
Also listed under part number DS-KV8413-WME1(C) — treat as the same physical unit for spec and compatibility purposes.
Compatibility
Designed to integrate with Hikvision indoor station ranges as part of a wider video intercom system; confirm indoor station model compatibility before specifying a full system.
Technical Specifications
Frequently Asked Questions
How many indoor stations can the DS-KV8413-WME1 support?
Up to 4 indoor stations, matching its 4 call buttons for multi-tenant or shared-entrance setups.
Does it need PoE or a separate power supply?
Either — the unit supports both Power over Ethernet and 12V DC, so you can spec to whichever is already run to the door position.
Is the DS-KV8413-WME1(C) a different product?
No, it's listed as the same unit under an alternative part number and should be treated identically for specification purposes.
Is it suitable for outdoor mounting?
Yes, the aluminium alloy housing carries IP65 weatherproofing and IK08 impact resistance for external door positions.
