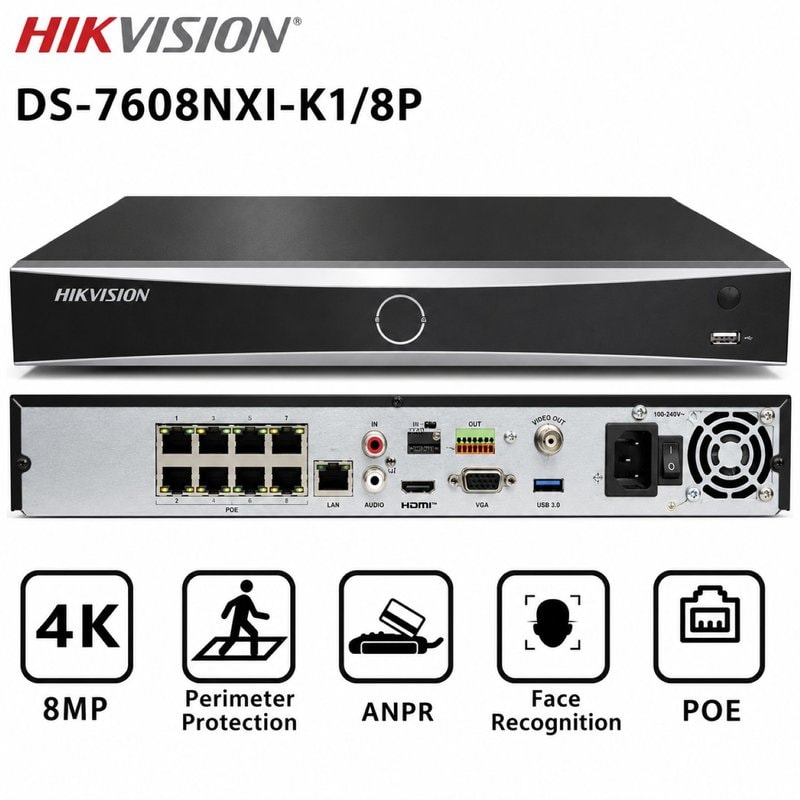

Hikvision 8-ch PoE 1U K Series AcuSense 4K NVR

Key Features

8 Channels with PoE: Supports up to 8 IP cameras with built-in Power over Ethernet (PoE) ports for easy installation.

High-Resolution Recording: Records video at resolutions up to 12 MP for detailed image capture.

AcuSense Technology: Utilizes AI-powered human and vehicle detection to minimize false alarms.

Advanced Video Compression: Supports H.265+/H.265/H.264+/H.264 video formats for efficient storage.

4K HDMI Output: Provides high-definition video output via HDMI for clear display.

Synchronous Playback: Allows for 8-channel simultaneous playback for efficient video review.

Facial Recognition: Supports facial detection and analytics for enhanced security.

Audio Support: Features 1-channel RCA audio output and 2-way audio capability.

The Hikvision DS-7608NXI-K1/8P is ideal for:

Residential Security: Protecting homes with high-resolution video surveillance.

Commercial Properties: Monitoring offices, retail spaces, and warehouses.

Industrial Sites: Enhancing security in factories and manufacturing facilities.

Public Spaces: Surveilling parking lots, streets, and public areas.

Intelligent Analytics
AI by Device
perimeter protection, motion detection 2.0;Facial recognition, perimeter protection, motion detection 2.0
AI by Camera
perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA;Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
Facial Detection and Analytics
Face picture comparison, human face capture, face picture search;NA
Face Picture Library
Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance
1-ch, 8 MP
Face Picture Comparison
4-ch
Motion Detection 2.0
By Device
1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm;All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By Camera
All channels
Perimeter Protection
By Device
1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By Camera
All channels
Throwing Objects from Building
By Camera
All channels
Video and Audio
IP Video Input
8-ch
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
80 Mbps
HDMI Output
1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode
HDMI/VGA simultaneous output;HDMI/VGA independent output
CVBS Output
N/A
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format
H.265/H.265+/H.264+/H.264
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
8-ch
Decoding Capability
AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection
128
API
ONVIF (profile S/G); SDK; ISAPI
Compatible Browser
IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface;1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 75 W
Standard
IEEE 802.3af/at
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 10 TB capacity for each HDD
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out
4/1;N/A;N/A ;N/A (4/1 is optional)
General
GUI Language
English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply
48 VDC, 1.875 A
Consumption
≤ 10 W (without HDD, and PoE off)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")
≤ 1 kg (without HDD, 2.2 lb.)
Certification
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
