Hikvision 32-Channel 5MP CCTV Kit — 29 Turret Cameras + 4× 14TB Recording
SKU: KIT-IP32-DS7732NIM424-DS2CD3356G2IX29-4X14TB-187AECopied!
Built on: Hikvision DS-7732NI-M4/24P + 29× Hikvision DS-2CD3356G2-ISU. Keeps about 44 days of continuous footage on the included 4× 14TB hard drives (56TB in total).
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
How long should it keep footage?
When the drive fills, the recorder writes over the oldest day.
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.

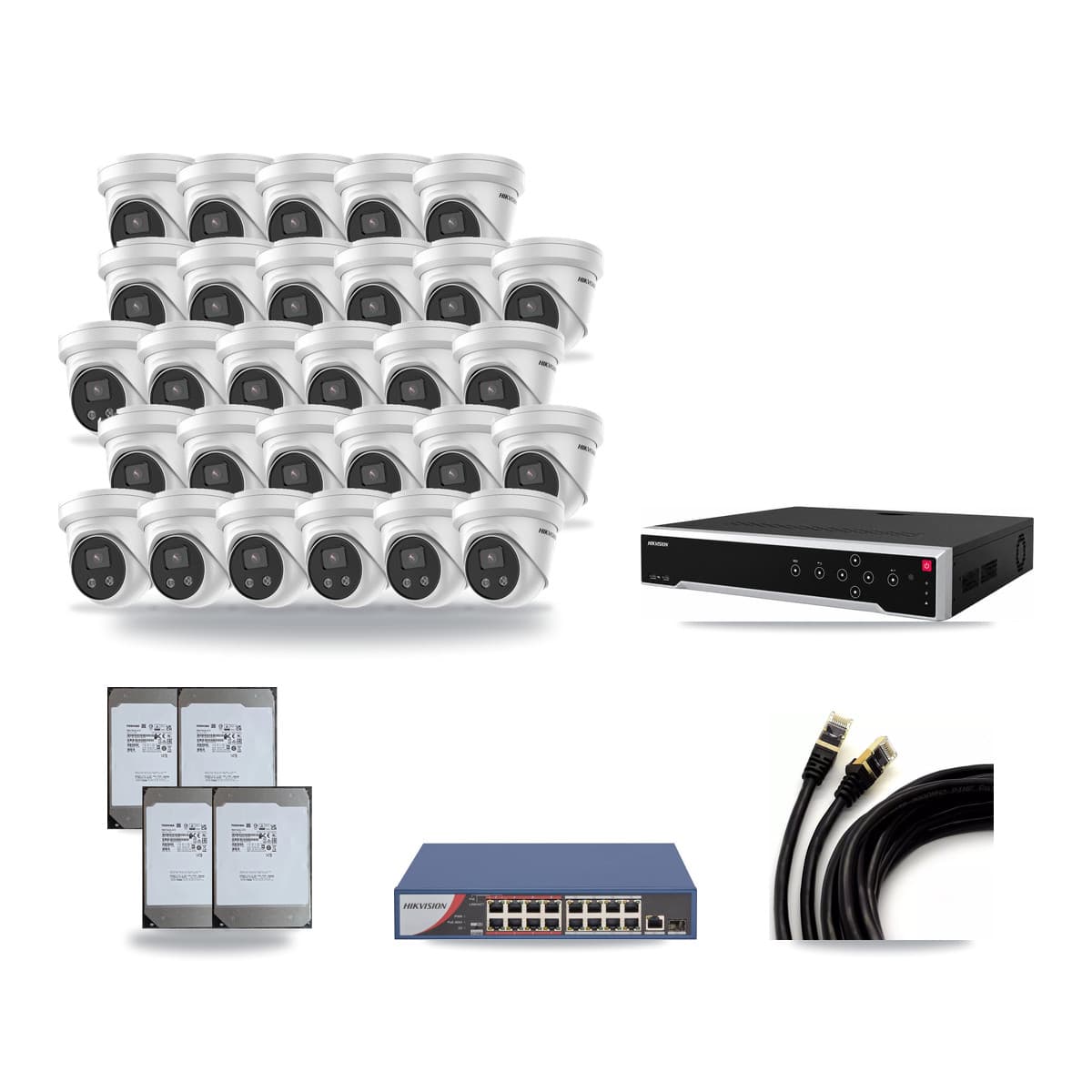

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a commercial site — 29 cameras, keeps about 44 days of footage, one network cable per camera carries the picture and the power.
The recorder
Hikvision 32-ch 1.5U 24 PoE 8K NVR
The box that saves everything and runs the app
The cameras× 29
Hikvision DS-2CD3356G2-ISU 5MP AcuSense IR PoE Turret Camera 2.8mm
What goes on the wall
The hard drive× 4
Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM
Where the footage is kept
The cable× 29
Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Included extra× 2
Hikvision DS-3E0318P-E/M(B) 16-Port PoE Unmanaged Network Switch
Part of the kit at no extra cost
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 32-channel IP (PoE) CCTV kit built on the Hikvision DS-7732NI-M4/24P + 29× Hikvision DS-2CD3356G2-ISU. 29 cameras at 5MP — sized for a commercial site. The included 4× 14TB hard drives (56TB in total) hold about 44 days of continuous recording — the estimate assumes recording all 29 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 29× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable, 2× Hikvision DS-3E0318P-E/M(B) 16-Port PoE Unmanaged Network Switch. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 1.5U 24 PoE 8K NVR; 29× Hikvision DS-2CD3356G2-ISU 5MP AcuSense IR PoE Turret Camera 2.8mm; 4× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 29× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable; 2× Hikvision DS-3E0318P-E/M(B) 16-Port PoE Unmanaged Network Switch. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7732NI-M4/24P + 29× Hikvision DS-2CD3356G2-ISU
- Recorder
- 32-channel Hikvision 32-ch 1.5U 24 PoE 8K NVR
- Cameras included
- 29× Hikvision DS-2CD3356G2-ISU 5MP AcuSense IR PoE Turret Camera 2.8mm
- Camera resolution
- 5MP
- Storage
- 4× 14TB (56TB total) HDD — about 44 days of footage, recording all 29 cameras continuously at high quality (H.265)
- Cables & PSU included
- 29× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable; 2× Hikvision DS-3E0318P-E/M(B) 16-Port PoE Unmanaged Network Switch
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 1.5U 24 PoE 8K NVR; 29× Hikvision DS-2CD3356G2-ISU 5MP AcuSense IR PoE Turret Camera 2.8mm; 4× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 29× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable; 2× Hikvision DS-3E0318P-E/M(B) 16-Port PoE Unmanaged Network Switch
