Hikvision 16-Channel 2MP – 4MP CCTV Kit — 5 2MP Turret + 2 4MP Bullet Cameras + 6TB Recording (DS-7616NI-M2 Recorder)
SKU: KIT-IP16-DS7616NIM216-DS2CD1327G2LX07-6TB-MDUEYCopied!
Built on: Hikvision DS-7616NI-M2/16P + 5× Hikvision DS-2CD1327G2-LUF + 2× Hikvision DS-2CD2T47G2H-LISU/SL. Keeps about 30 days of continuous footage on the included 6TB surveillance hard drive.
Low Stock
Only 2 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

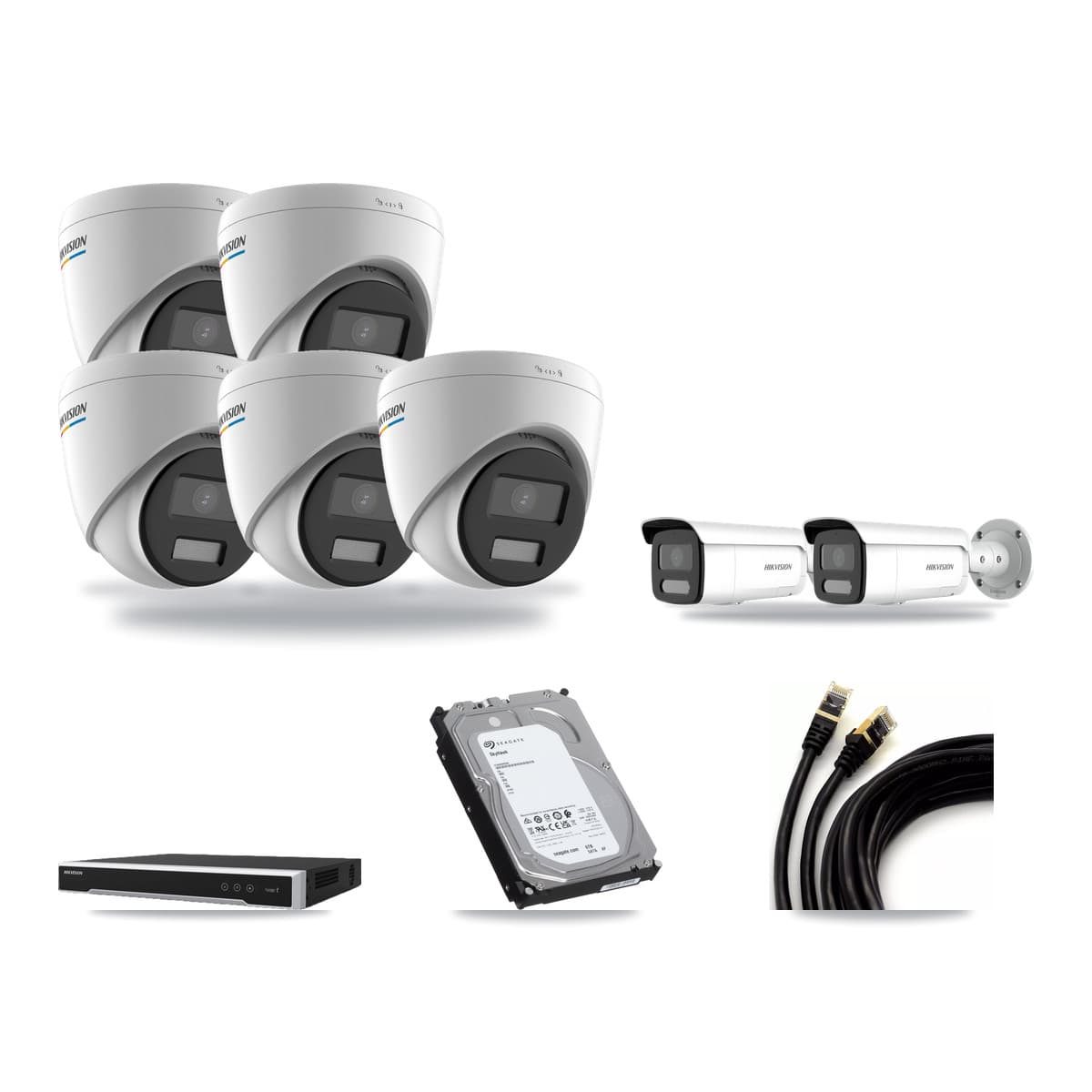

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a shop or small business — 7 cameras, keeps about 30 days of footage, one network cable per camera carries the picture and the power.
The recorder
Hikvision 16-ch 1U 16 PoE 8K NVR
The box that saves everything and runs the app
The cameras× 5
Hikvision DS-2CD1327G2-LUF 2MP ColorVu PoE IP Turret Camera Mic IP67
What goes on the wall
The cameras× 2
Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
What goes on the wall
The hard drive
Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Where the footage is kept
The cable× 7
Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 16-channel IP (PoE) CCTV kit built on the Hikvision DS-7616NI-M2/16P + 5× Hikvision DS-2CD1327G2-LUF + 2× Hikvision DS-2CD2T47G2H-LISU/SL. 7 cameras at 2MP + 4MP — sized for a shop or small office. The included 6TB surveillance hard drive holds about 30 days of continuous recording — the estimate assumes recording all 7 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 7× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. In the box: 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 5× Hikvision DS-2CD1327G2-LUF 2MP ColorVu PoE IP Turret Camera Mic IP67; 2× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 7× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7616NI-M2/16P + 5× Hikvision DS-2CD1327G2-LUF + 2× Hikvision DS-2CD2T47G2H-LISU/SL
- Recorder
- 16-channel Hikvision 16-ch 1U 16 PoE 8K NVR
- Cameras included
- 5× Hikvision DS-2CD1327G2-LUF 2MP ColorVu PoE IP Turret Camera Mic IP67; 2× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
- Camera resolution
- 2MP + 4MP
- Storage
- 6TB surveillance HDD — about 30 days of footage, recording all 7 cameras continuously at high quality (H.265) — the load is 5× 2MP + 2× 4MP
- Cables & PSU included
- 7× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 5× Hikvision DS-2CD1327G2-LUF 2MP ColorVu PoE IP Turret Camera Mic IP67; 2× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 7× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
