Product Description
Key specs

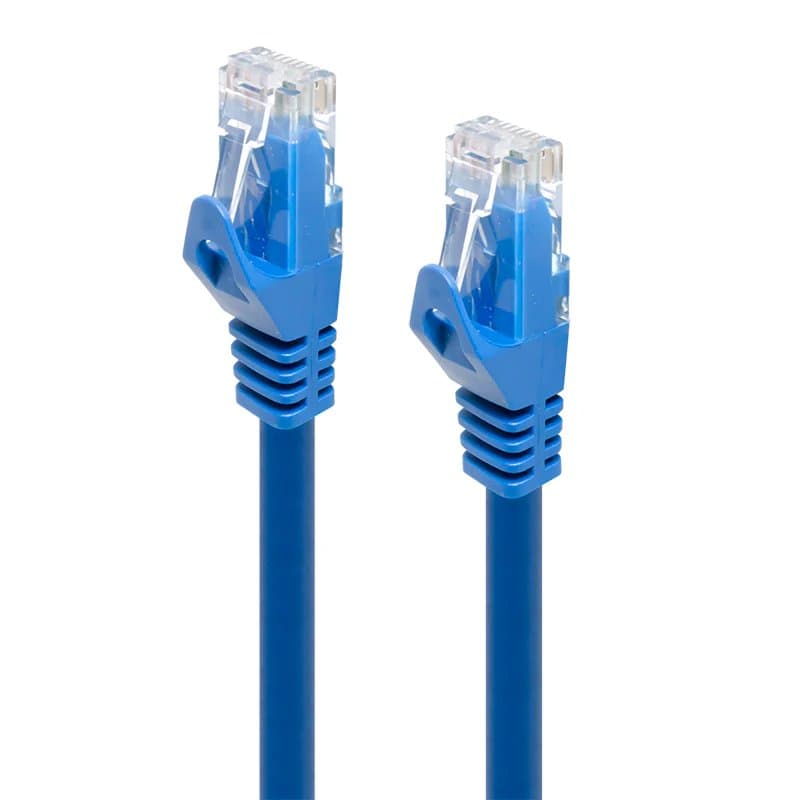

A 1m Cat.6 U/UTP patch lead, RJ45 male to RJ45 male, for short cabinet or desk runs between switch, NVR, PoE injector and wall port.
- Bandwidth: 250MHz supported
- Attenuation: 32.8dB/100m @250MHz
- Conductor: 24AWG copper, U/UTP (unshielded twisted pair)
- Connector pins: copper alloy, gold plated
- Housing: polycarbonate, jacket in PVC, 5.8mm diameter
- Minimum bend radius: 69mm
- Operating temperature: -10°C to 60°C
- Storage temperature: -20°C to 75°C
- Colour: blue
Where it fits on a job
This is a patch lead, not bulk cable — use it for the last-metre link inside a rack or cabinet, not for pulling through walls or ceiling voids. The 250MHz bandwidth headroom covers a single camera stream comfortably, useful if the run later carries higher-bitrate traffic on the same segment.
Unshielded (U/UTP) construction keeps the lead compact and flexible for tight cabinet routing, but it has no shielding, so don't run it parallel to mains cable over any distance. Respect the 69mm minimum bend radius when dressing cable in a full cabinet to avoid attenuation loss at the bend point.
Compatibility
RJ45 male connectors terminate directly into switch ports, NVR LAN ports, and PoE injector data ports — no adapters required for standard Cat6/Cat5e infrastructure.
Specifications
- Cable Category
- CAT6
- Length
- 1m
- Colour
- Blue
- Connector Type
- RJ45
- Material
- Polycarbonate
Frequently Asked Questions
What bandwidth does this lead support?
It supports 250MHz, in line with Cat.6 U/UTP specification.
Is this lead shielded?
No, it's U/UTP (unshielded twisted pair), so keep it clear of mains cable runs.
What's the minimum bend radius?
69mm — keep to this when dressing cable in a cabinet to avoid signal loss.
What connectors does it use?
RJ45 male at both ends, with gold-plated copper alloy pins.
