Product Description
Point-to-point HDMI KVM extension over a single run of Cat5e or Cat6, built for control-room and server-room installs where the source and the operator sit apart.
Key specs
- 4K HDMI video with audio, carried over one Cat5e/Cat6 cable
- Up to 60m (200ft) reach, TX to RX
- USB keyboard/mouse pass-through for full KVM control of the remote source
- Plug-and-play — no drivers or software to install
- Point-to-point only — no network switch between transmitter and receiver
The transmitter connects to the HDMI source (PC, DVR, NVR, media player); the receiver connects to the display. Built-in USB ports on the receiver end let the operator run keyboard and mouse as if sat at the source.
For the full 60m distance, the manufacturer recommends pure-copper Cat6 cable rather than CCA. Because the link is point-to-point, it cannot be run through a network switch — plan cable routes as a direct run between TX and RX.
Suited to CCTV control rooms, server rooms, industrial monitoring stations, digital signage and pro AV installs where equipment needs to be sited away from the operator position.
In the box

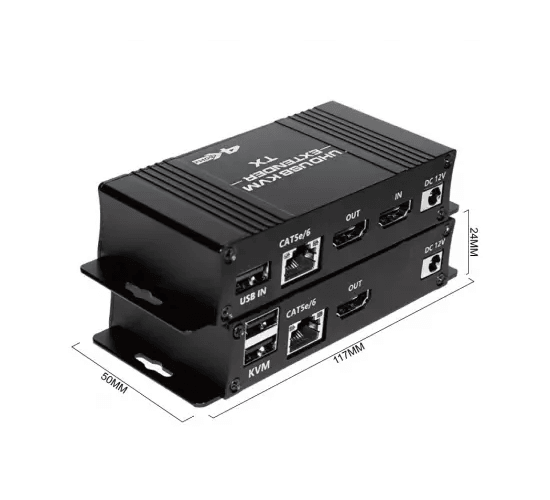

HDMI-to-RJ45 transmitter, RJ45-to-HDMI receiver, two power adapters, user manual.
Technical Specifications
Frequently Asked Questions
What cable does it need for the full 60m run?
Pure-copper Cat6 cable is recommended to achieve the full 60 metres; using CCA or lower-grade cable may reduce the reliable distance.
Can I run this through a network switch?
No — it's a point-to-point link between the transmitter and receiver, with no switch in between.
Does it support keyboard and mouse control of the remote PC?
Yes, built-in USB ports on the receiver pass through keyboard and mouse for full KVM control of the source.
Does audio come through with the video?
Yes, audio is carried alongside the 4K HDMI video over the same Cat5e/Cat6 cable.
