Product Description
Overview

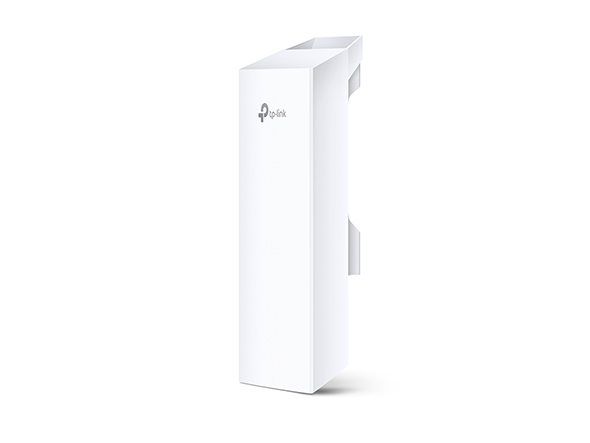

The TP-Link CPE510 is a 5GHz outdoor CPE for long-range PTP and PTMP wireless bridging, spec'd for transmission distances over 15km with system-level optimisations. It ships with a built-in 13dBi 2x2 dual-polarised directional MIMO antenna, giving stable gain at range without a separate dish.
Key specs
- Band/speed: 5GHz, up to 300Mbps
- Antenna: 13dBi 2x2 dual-polarised directional MIMO, integrated
- Range: over 15km with system-level optimisation
- TX power: adjustable 0–26dBm (up to 200mW)
- PoE: Passive PoE, power and data over a single Ethernet run up to 60m (200ft)
- Modes: Access Point, Client, AP Router, AP Client Router (WISP)
MAXtream TDMA and management
Pharos MAXtream TDMA is TP-Link's proprietary protocol for this line, aimed at improving throughput, capacity and latency in multi-point deployments versus standard CSMA. Fleets of CPE510 units can be monitored and configured centrally through Pharos Control, useful when a job involves several links or a PTMP hub-and-spoke layout.
Deployment notes
For installers, the adjustable 0–26dBm TX power lets you tune link budget per hop rather than running fixed output across every site — useful where PTMP cells overlap. Remote reset is supported, which cuts truck rolls when a unit needs a config recovery on a mast or pole. Passive PoE keeps the run simple, but note the 60m PoE cable limit when planning cable routes to roof or tower-mounted units.
Specifications
- Brand
- TP-Link
- Frequency Band
- 5GHz
- Data Rate
- 300 Mbps
Technical Specifications
Frequently Asked Questions
What range can the CPE510 achieve?
With system-level optimisations it's rated for transmission distances of over 15km, suited to point-to-point and point-to-multipoint links.
Does the CPE510 support PoE, and over what distance?
Yes, it uses Passive PoE, carrying power and data over a single Ethernet cable up to 60 metres (200 feet).
What operation modes are available?
Access Point, Client, AP Router, and AP Client Router (WISP), so it can serve as either end of a bridge or a routed WISP link.
Can multiple CPE510 units be managed centrally?
Yes, the CPE510 supports TP-Link's Pharos Control system for centralised monitoring and configuration of multiple devices.
