Product Description

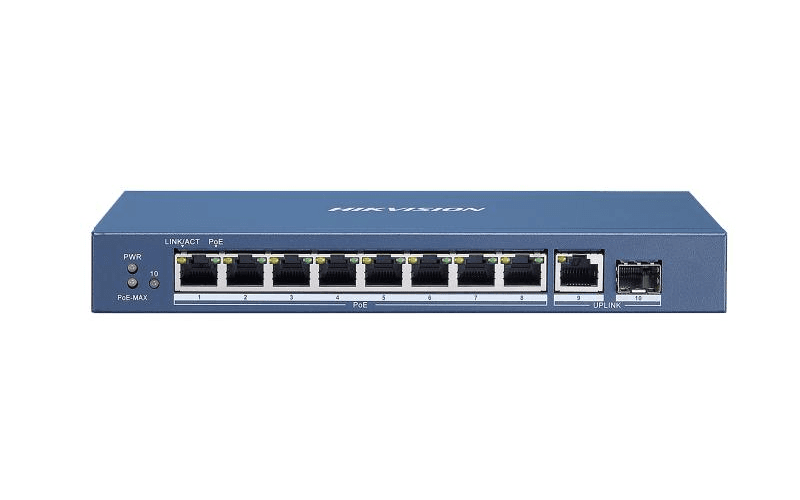

DS-3E0510P-E: 8-port Gigabit unmanaged PoE switch, 110 W budget, RJ45 + SFP uplink. Layer-2, fan-free, metal-cased — a standard spec for camera runs where a managed switch isn't justified on the job.
Key specs
- 8 × Gigabit PoE ports (RJ45), IEEE 802.3af/at
- 1 × Gigabit RJ45 uplink + 1 × Gigabit SFP fibre uplink
- Max 30 W per PoE port, ~110 W total PoE budget
- 20 Gbps switching capacity, 14.88 Mpps forwarding rate
- 4K MAC address table, store-and-forward architecture
- 6 kV surge protection on PoE ports
- Fan-free metal enclosure, desktop or wall mount
PoE budget planning
With an ~110 W pool across 8 ports, do the maths per install: eight cameras at 30 W each would exceed budget, so total draw across connected devices — not just per-port max — is the figure to check against on multi-camera runs, particularly PTZ or heated housings pulling 802.3at levels.
Uplink flexibility
The combination of a Gigabit RJ45 uplink and a Gigabit SFP port means the switch can hand off to copper backbone or fibre without an external media converter, useful where a run to the NVR or core switch exceeds copper distance limits.
No configuration is required — it's plug-and-play, Layer-2 unmanaged, suited to small-to-medium IP camera deployments, network cabinets and CCTV control rooms rather than segmented or VLAN-managed networks.
Specifications
- Shell
- Metal material, fan-free design
- Net Weight
- 0.6 kg (1.32 lb)
- Gross Weight
- 1.4 kg (3.09 lb)
- Dimensions (W × H × D)
- 217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')
- Operating Temperature
- 0 °C to 40 °C (32 °F to 104 °F)
- Power Supply
- 48 VDC, 2.5 A
- Max Power Consumption
- 120 W
- Power Consumption in Idle
- 10 W
- Installation Mode
- Desk-Mounted,Wall-Mounted;
- Ports
- 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fibre optical port
- MAC Address Table
- 4 K
- Switching Capacity
- 20 Gbps
- Packet Forwarding Rate
- 14.88 Mpps
- PoE Standard
- IEEE 802.3af,IEEE 802.3at
- PoE Power Pin
- End-span: 1/2(+), 3/6(-)
- PoE Ports
- PoE: Ports 1 to 8
- Max. Port Power
- 30 W
Technical Specifications
Frequently Asked Questions
What is the total PoE power budget on the DS-3E0510P-E?
Approximately 110 W across all 8 PoE ports, with a maximum of 30 W available on any single port under IEEE 802.3at.
Does it have a fibre uplink option?
Yes — alongside the Gigabit RJ45 uplink there is one Gigabit SFP fibre uplink port for backbone connections.
Is this switch managed or unmanaged?
It's a Layer-2 unmanaged switch — plug-and-play with no configuration interface, using store-and-forward switching and a 4K MAC address table.
What PoE standards does it support?
IEEE 802.3af and IEEE 802.3at, covering standard and high-power PoE devices such as IP cameras and access points.
