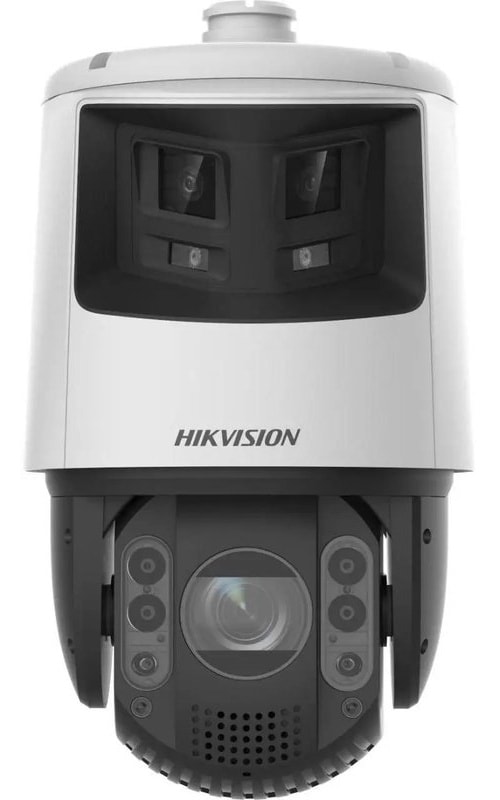

TandemVu 6+4 MP 32X ColorVu & IR Acusense Panoramic Network Speed Dome

Camera
Image Sensor
[Panoramic channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS
Max. Resolution
[Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440
Min. Illumination
[PTZ channel] Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed
1 s to 1/30,000 s
Day & Night
IR cut filter
Zoom
32 × optical,16 × digital
Slow Shutter
yes
HLC
yes
3D DNR
yes
Lens
Focal Length
[Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm
FOV
[Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5°

[PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°

Focus
Auto,semi-auto,manual
Aperture
[Panoramic channel] F1.0, [PTZ channel] Max. F1.5
Zoom Speed
[Panoramic channel] No, [PTZ channel] approx. 5.6 s
Illuminator
Supplement Light Range
IR distance: up to 200 m
White Light Distance
Panoramic channel: 30 m
PTZ
Movement Range (Pan)
360°
Movement Range (Tilt)
-15° to 90°
Pan Speed
Pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed
Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan
Yes
Presets
300
Preset Freezing
Yes
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Park Action
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Scheduled Task
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,aux output,dome adjust
Power-off Memory
Yes
Video
Main Stream
[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[Panoramic channel] 50 Hz: 25 fps (3632 × 1632, 3680 × 1656), 60 Hz: 30 fps (3632 × 1632, 3680 × 1656)
Sub-Stream
[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240),[Panoramic channel] 50 Hz: 25 fps (1200 × 536, 960 × 432), 60 Hz: 30 fps (1200 × 536, 960 × 432)
Third Stream
[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264/MJPEG

Video Bit Rate
32 Kbps to 16384 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
yes
Region of Interest (ROI)
fixed region
Audio
Audio Compression
G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Audio Bit Rate
32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
Audio Sampling Rate
8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering
yes
Network
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets,SRTP
Simultaneous Live View
20
API
ISUP,SDK,ISAPI,Open Network Video Interface (Profile S, Profile G, Profile T)
User/Host
32
Security
Password protection,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),IP address filter
Network Storage
NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Client
iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser
IE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge79.0.309.65+
Image Parameters Switch
Yes
Image Settings
saturation, brightness, contrast, sharpness
Day/Night Switch
Day,night,auto,schedule
Wide Dynamic Range (WDR)
[Panoramic channel] Digital WDR, [PTZ channel] 120 dB
SNR
＞52dB
Defog
yes
Image Stabilization
yes
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus
yes
Regional Exposure
yes
Interface
Ethernet Interface
1 RJ45 10/100M self-adaptive Ethernet port
On-board Storage
Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,

1 output (line out), line level, output impedance: 600 Ω

Alarm
2 input(s), 1 output(s)
Reset
Yes
Event
Basic Event
Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)
Smart Event
Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan),audible warning,white light flashing
Smart Tracking
Manual tracking,auto-tracking
Smart Linkage
panorama linkage, tracking takeover, track in turn
Deep Learning Function
Face Capture
Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
Regional People Counting
Yes
General
Power
24 VAC, Max. 60 W, Hi-PoE
Dimension
Ø222.3 mm × 387.2 mm (Ø8.75" × 15.2")
Approx. 6 kg (13.23 lb.)
Material
ADC12,Plastic,PC+10%GF
Operating Condition
-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Function
mirror,watermark,password protection,IP address filter
Demist
Yes
Approval
Protection
IP66 (IEC 60529-2013)
