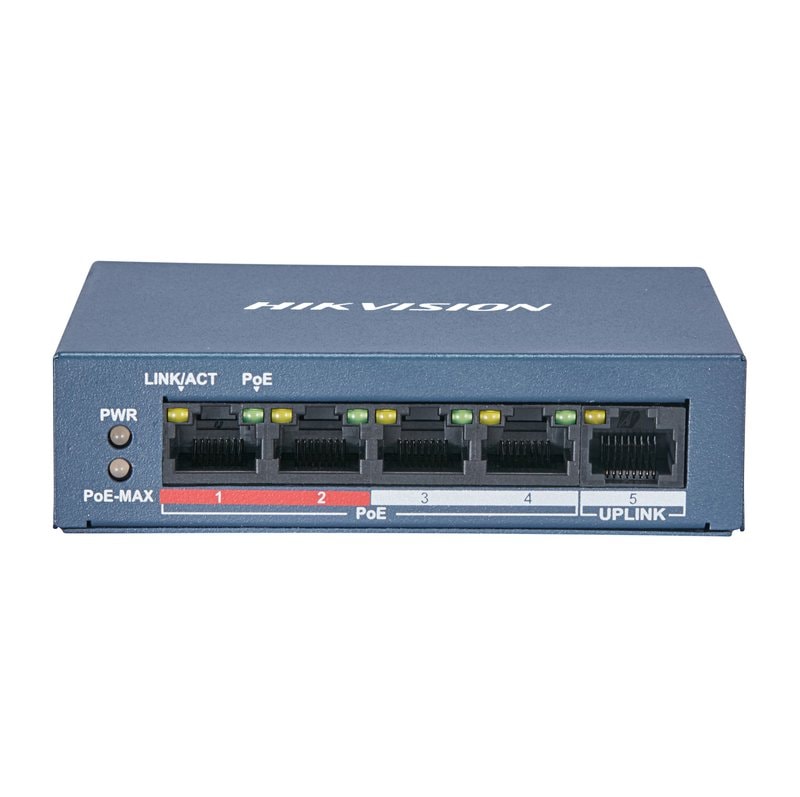

Hikvision DS-3E0105P-E/M(B) 5-Port Fast Ethernet PoE Switch 300m Long Range

Key specs

• 5 ports total: 4 × 10/100Mbps PoE + 1 × 10/100Mbps uplink
• PoE standards: IEEE 802.3af / 802.3at
• Per-port power: up to 30W; total PoE budget: approx. 35W
• Extend mode range: up to 300m PoE transmission
• Switching capacity: 1Gbps; forwarding rate: 0.74 Mpps
• Surge protection: 6kV
• Mounting: desktop or wall-mount

On the job

This is an unmanaged, plug-and-play Fast Ethernet switch for small CCTV drops. Four PoE ports power IP cameras directly; the uplink port runs back to an NVR, router, or core switch. No configuration is required — devices are detected automatically on connection.

The 300m extend mode is the headline figure for installers running cable further than standard 100m Ethernet limits allow — useful on perimeter runs, warehouses, and car parks where the cabinet sits well away from the camera. Note that extend mode drops link speed to 10Mbps per port, which is generally sufficient for single IP camera streams but worth factoring into bandwidth planning on multi-camera runs.

With a 35W total PoE budget across four ports, this isn't intended for four cameras simultaneously drawing full 30W each — plan camera load against the shared budget rather than per-port maximums alone.

6kV surge protection and a fan-free metal enclosure suit outdoor-adjacent installs and unstable power environments. Also listed under part number DS-3E0105P-E/M(B) — same unit, same spec sheet.
