What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
1 camera included, uses analogue cameras; check existing coax cable condition and compatibility before reuse.
Recorder capacity
1 included camera use 1 of the recorder’s 4 channels. 3 channels remain for expansion. Before adding cameras, check supported resolution, recording bandwidth and available power or PoE ports.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
The recorder
Hikvision 4-ch 5mp 1U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras
Hikvision 3K Two Way Audio Fixed Turret
What goes on the wall
Free extras included

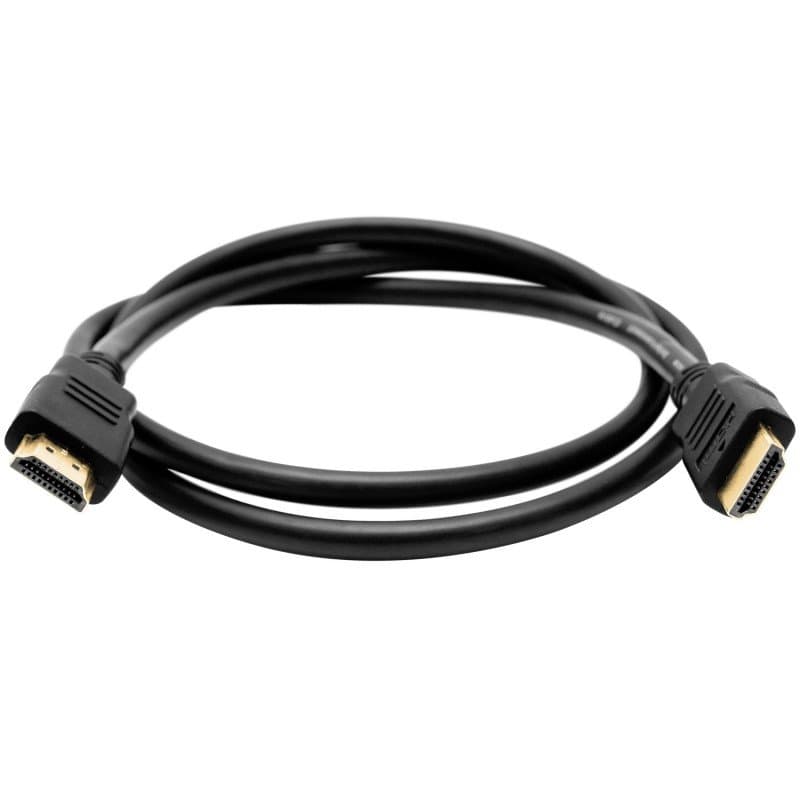

HDMI Cable High Speed 1.5m 4K 60Hz Ethernet HDMI-A Male to Male Black
FREE with this kit
PSU-12V-1A-UK-BOX
FREE with this kit
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
FREE with this kit
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
Recorder
The IDS-7204HQHI-M1/XT is a 4-channel, 5MP, 1U, H.265 AcuSense DVR — a single-camera deployment leaves 3 channels free for expansion without a recorder swap.
Camera
Pairs with 1× DS-2CE78K0T-LPTS, a Hikvision 3K fixed turret with two-way audio, fixed-mount only.
What's included
- iDS-7204HQHI-M1/XT DVR — 4ch, 5MP, 1U, H.265, AcuSense
- DS-2CE78K0T-LPTS 3K fixed turret camera, two-way audio
- HDMI cable, 1.5m, rated 4K 60Hz, HDMI-A male to male
- PSU-12V-1A-UK-BOX power supply
- RG59 BNC/DC shotgun lead, 20m, combined video and power run from camera to DVR
Cabling and expansion notes
The 20m RG59 shotgun lead carries both video and DC power in a single run, cutting down on second cable pulls for the initial camera. Because the DVR ships as a 4-channel unit populated with only one camera, the remaining 3 channels are available for future additions on the same recorder — useful where an install starts at one covered point (till, door, gate) and may grow.
If night-time footage flickers or drops out after installation, check the power run first: IR LEDs draw more current after dark, and a long or under-rated cable run can cause voltage drop on that camera feed.
Specifications
- System type
- Analog (HD over coax)
- Recorder
- 4-channel Hikvision 4-ch 5mp 1U H.265 AcuSense DVR
- Cameras included
- 1× Hikvision 3K Two Way Audio Fixed Turret
- Camera resolution
- 3K (5MP)
- Free extras
- 1× HDMI Cable High Speed 1.5m 4K 60Hz Ethernet HDMI-A Male to Male Black; 1× PSU-12V-1A-UK-BOX; 1× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What's in the box
- 1× Hikvision 4-ch 5mp 1U H.265 AcuSense DVR; 1× Hikvision 3K Two Way Audio Fixed Turret; 1× HDMI Cable High Speed 1.5m 4K 60Hz Ethernet HDMI-A Male to Male Black (free); 1× PSU-12V-1A-UK-BOX (free); 1× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR (free)
Frequently Asked Questions
How many camera channels does the recorder support?
The iDS-7204HQHI-M1/XT is a 4-channel DVR, so 3 channels remain free when only the supplied single camera is connected.
Does the camera support audio?
Yes — the included DS-2CE78K0T-LPTS is a fixed turret camera with two-way audio.
What cabling is included for the camera run?
A 20m RG59 BNC/DC shotgun lead is included, carrying both video and power from camera to DVR in one cable.
Why might the camera image flicker at night?
Flickering or dropout at night is often linked to insufficient power at the camera — check the PSU rating and cable run length if this occurs.
