Product Description

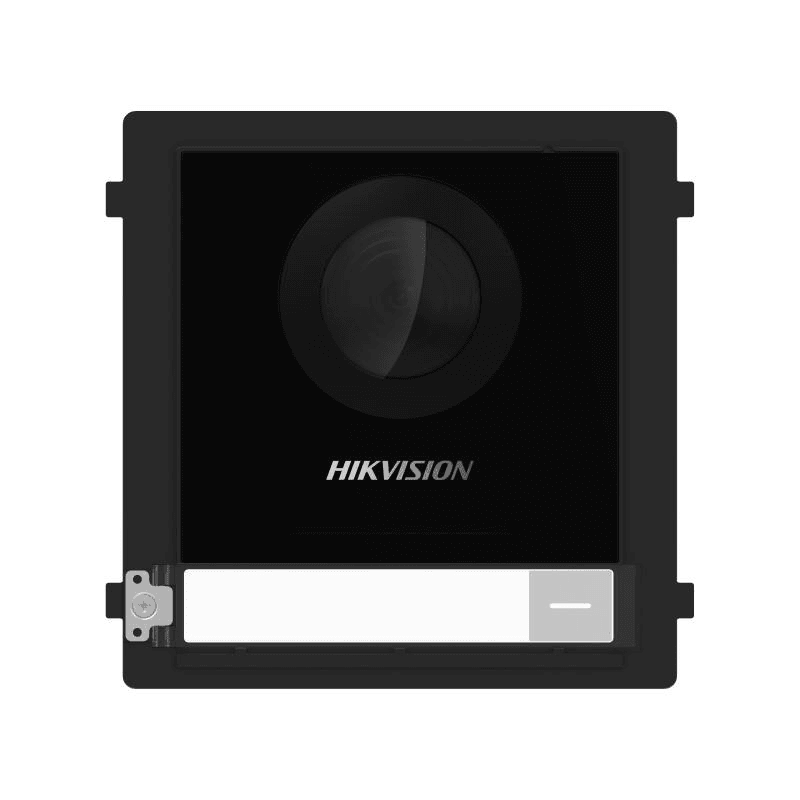

The DS-KD8003-IME1(B) is the camera/main-door module for Hikvision's KD-series modular IP intercom platform — spec it where you need a 2MP entry station with card access on a single Ethernet drop.
Key specs
- Camera: 2MP HD, wide-angle lens for full-frame visitor capture at the door
- Access control: integrated Mifare 13.56 MHz RFID reader for contactless credential unlock
- Audio: two-way mic/speaker with echo cancellation and noise suppression
- Night performance: built-in IR illumination for low-light/night identification
- Network: TCP/IP Ethernet — integrates with Hikvision indoor stations, mobile apps and centralised access control
- Form factor: modular main unit, fits Hikvision flush or surface-mount frames
Modular system notes
This is the camera/main module only — it's designed to sit alongside other KD-series modules (keypad, display, additional card readers) within the same frame, so specify the frame and any extra modules separately when quoting a full door station.
Where it fits
Use on residential entrances, apartment communal doors, office reception points or commercial access control installs where IP-based video intercom with card credentials is required, rather than analogue or standalone door-phone equipment.
Compatibility
Confirmed compatible with Hikvision KD series modular intercom systems — check frame and companion module part numbers before ordering to ensure a matched set.
Specifications
- Brand
- Hikvision
- Camera Type
- Built-in HD Camera
- Card Reader
- Mifare 13.56 MHz
- Audio Support
- Built-in Microphone and Speaker
- Night Vision
- IR Illumination
- Network Interface
- TCP/IP Ethernet
- Compatibility
- Hikvision KD Series Modular Intercom
- Installation Type
- Modular Frame Mount
- Application
- Video Intercom and Access Control
- Installation Location
- Indoor and Outdoor
- Colour
- Grey/Black
Technical Specifications
Frequently Asked Questions
Is the DS-KD8003-IME1(B) a complete door station on its own?
It's the camera/main module of the KD-series modular system. It fits Hikvision flush or surface-mount frames and can be paired with additional modules such as keypads or display units for a full installation.
Does it support access control without a separate card reader?
Yes, it has an integrated Mifare 13.56 MHz RFID card reader for contactless credential unlock, so no separate reader module is needed for basic card access.
How does it connect to indoor stations or apps?
It connects via TCP/IP Ethernet, allowing integration with Hikvision indoor monitors, mobile applications and centralised access control systems.
Can it operate at night or in low light?
Yes, it has built-in infrared illumination for reliable visitor identification in low-light and night-time conditions.
