Hikvision 8-Channel 2MP CCTV Kit — 7 DS-2AE5225TI PTZ Cameras + 5TB Recording (IDS-7208HQHI Recorder)
SKU: KIT-HD8-IDS7208HQHIM-DS2AE5225TIAX07-5TB-1LC93Copied!
Built on: Hikvision IDS-7208HQHI-M1/XT + 7× Hikvision DS-2AE5225TI-A-E. Keeps about 33 days of continuous footage on the included 5TB hard drive.
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.

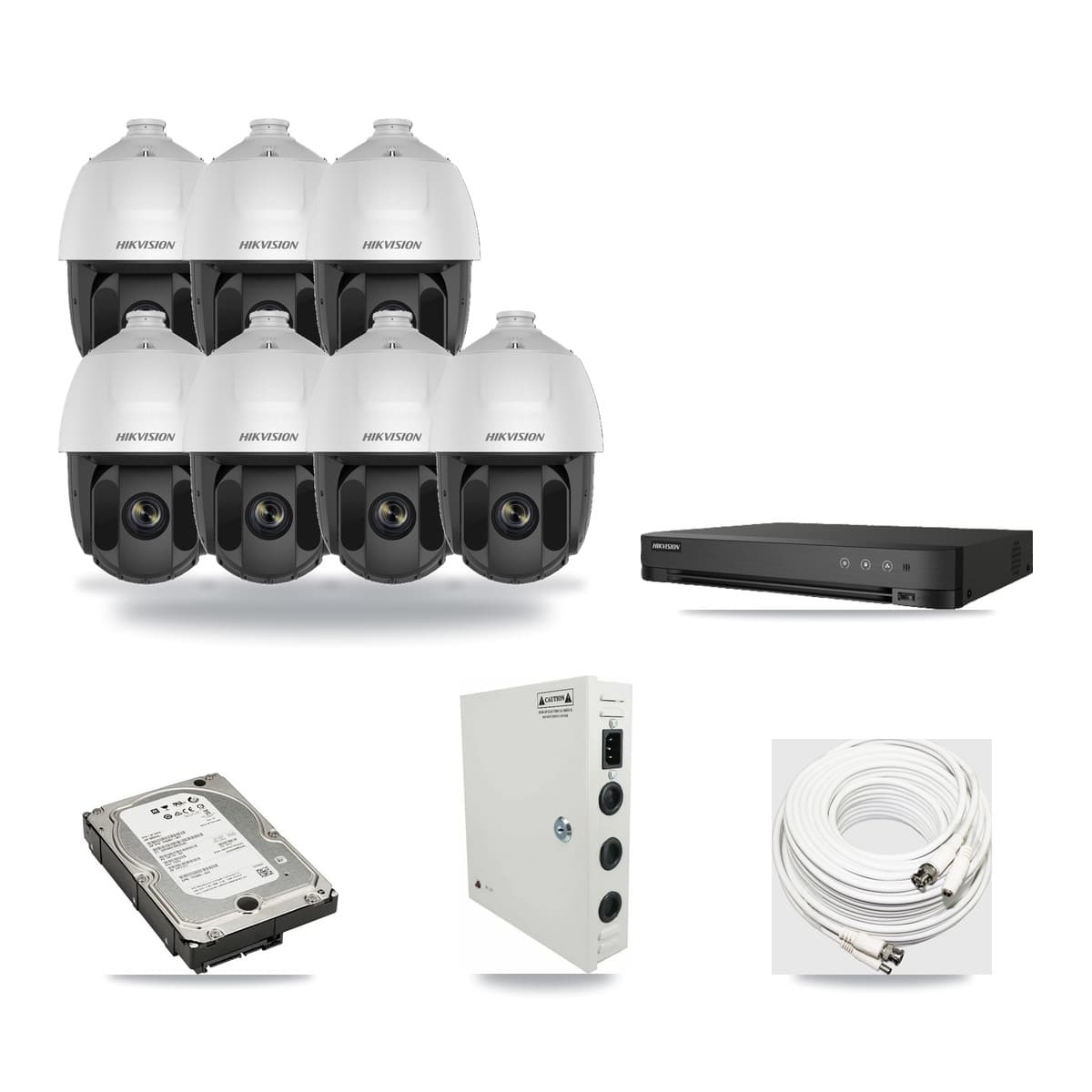

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a shop or small business — 7 cameras, keeps about 33 days of footage, it reuses the round coax cable an older system left behind.
Price on request
One part of this kit — the Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954 — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
Hikvision 8-ch 5MP 1U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 7
Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera
What goes on the wall
The hard drive
Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable× 7
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 8-channel HD-over-coax CCTV kit built on the Hikvision IDS-7208HQHI-M1/XT + 7× Hikvision DS-2AE5225TI-A-E. 7 cameras at 2MP — sized for a shop or small office. The included 5TB hard drive holds about 33 days of continuous recording — the estimate assumes recording all 7 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 7× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 8-ch 5MP 1U H.265 AcuSense DVR; 7× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 7× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision IDS-7208HQHI-M1/XT + 7× Hikvision DS-2AE5225TI-A-E
- Recorder
- 8-channel Hikvision 8-ch 5MP 1U H.265 AcuSense DVR
- Cameras included
- 7× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera
- Camera resolution
- 2MP
- Storage
- 5TB HDD — about 33 days of footage, recording all 7 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 7× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 8-ch 5MP 1U H.265 AcuSense DVR; 7× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 7× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
