Product Description
DS-2CE71H0T-PIRLO — spec summary for installers

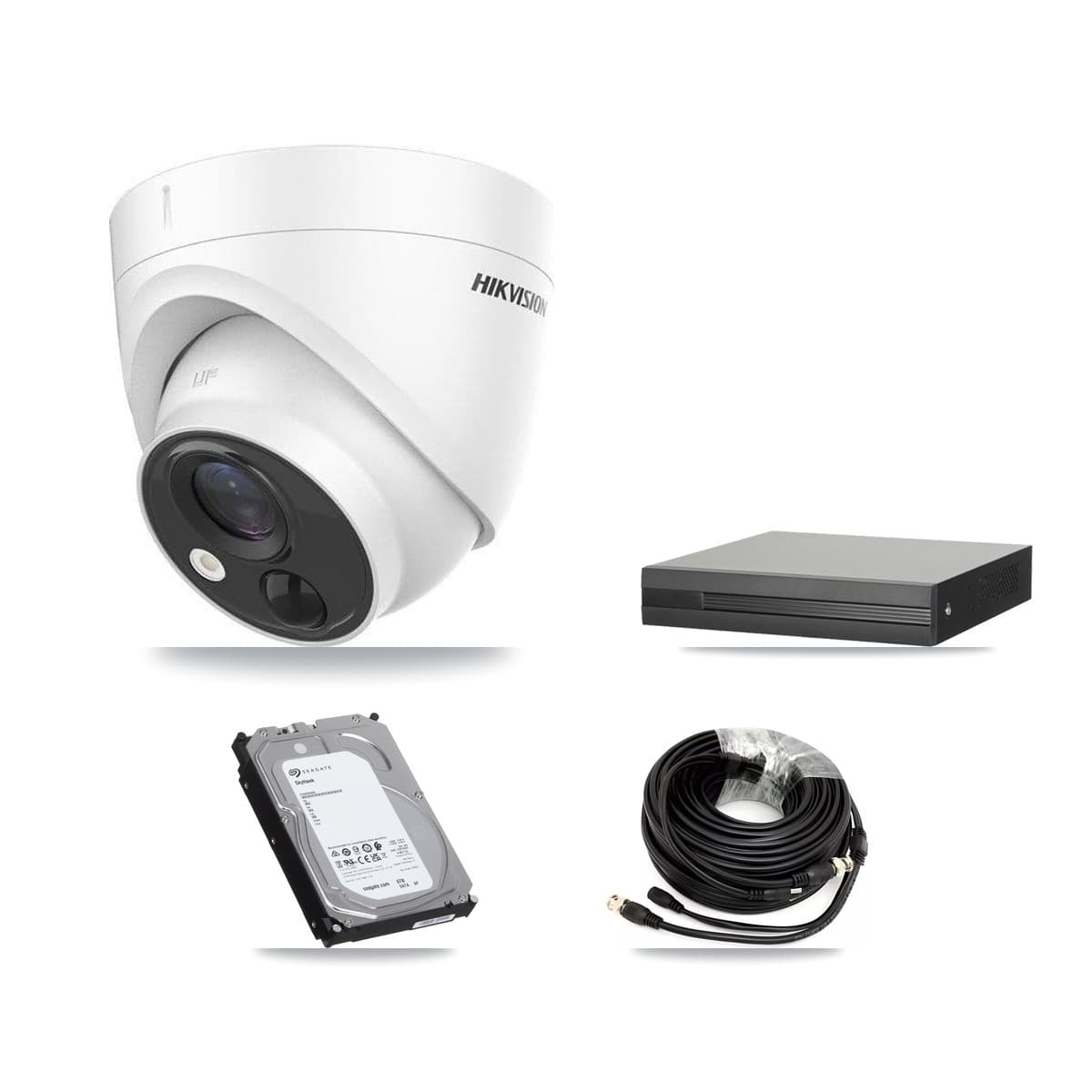

Hikvision's DS-2CE71H0T-PIRLO is a 5MP HD-TVI turret with an integrated PIR sensor, built for indoor jobs where motion-triggered alarm output is part of the spec, not an afterthought.
Key specs
- Resolution: up to 2560 × 1944 (5MP) — sharper than 1080p analogue when paired with a compatible Hikvision DVR
- Lens: fixed 2.8mm, wide field of view for entrances, corridors, offices, retail floors
- PIR detection: heat-signature based, reducing false triggers from lighting changes or shadow movement compared with image-analysis motion detection
- Alarm response: PIR event can drive a strobe light and alarm output when connected to a compatible Hikvision DVR — active deterrent, not just a recorded clip
- IR illumination: EXIR 2.0, up to 20m range, with IR-cut filter for automatic day/night switching
- Enclosure: IP67-rated, water and dust resistant
- Video output: HD-TVI, AHD, CVI and CVBS — drops into existing coax runs across DVR generations without recabling
Deployment notes
Rated for indoor use. The wide 2.8mm lens favours smaller rooms and doorways over long corridors where a narrower lens would hold detail further out. Multi-format output (TVI/AHD/CVI/CVBS) means it's a straightforward swap-in on mixed-vendor analogue systems already running coax, useful when upgrading a site incrementally rather than replacing the whole head-end.
PIR-triggered alarm output and strobe activation both require a compatible Hikvision DVR — confirm your recorder supports these alarm I/O functions before specifying for a job.
Specifications
- Brand
- Hikvision
- Image Sensor
- 5 MP CMOS image sensor
- Max Resolution
- 2560 (H) × 1944 (V)
- Day & Night
- ICR
- Angle Adjustment
- Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
- Light Alarm
- Yes
- Lens Type
- 2.8 mm, fixed lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.8°, diagonal FOV: 110.7°
- Lens Mount
- M12
- Image Settings
- Brightness, Sharpness, DNR , Mirror, Smart IR
- Frame Rate
- TVI: 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080P@25fps, 1080P@30fps
- Day/Night Mode
- Auto/Colour/BW (Black and White)
- White Balance
- Auto/Manual
- White Light
- AUTO/OFF
- Video Outputs
- 1 HD analog output
- Material
- Enclosure: Plastic Main body: Metal
- Dimensions
- Φ 109.8 mm × 89.75 mm (Φ 4.32" × 3.53")
- Power Supply
- 12 VDC ± 25%
- IR Range
- Up to 20 m
- Protection
- IP67
- Brackets
- DS-1281ZJ-S, DS-1280ZJ-TR13, DS-1280ZJ-S, DS-1272ZJ-110-TRS, DS-1276ZJ-SUS, DS-1275ZJ-SUS
Technical Specifications
Frequently Asked Questions
What resolution does the DS-2CE71H0T-PIRLO output?
Up to 2560 × 1944 (5MP), giving sharper detail than standard 1080p analogue when connected to a compatible Hikvision DVR.
Does the PIR sensor trigger an alarm automatically?
PIR motion can drive a strobe light and alarm output, but this alarm response requires the camera to be connected to a compatible Hikvision DVR.
Is this camera suitable for outdoor installation?
It's designed for indoor surveillance applications; the IP67 rating gives water and dust resistance but the product is specified for indoor use.
Will it work with existing analogue coax cabling?
Yes — it supports HD-TVI, AHD, CVI and CVBS output, so it can typically be fitted onto existing coax runs when upgrading a mixed-vendor analogue system.
