Product Description

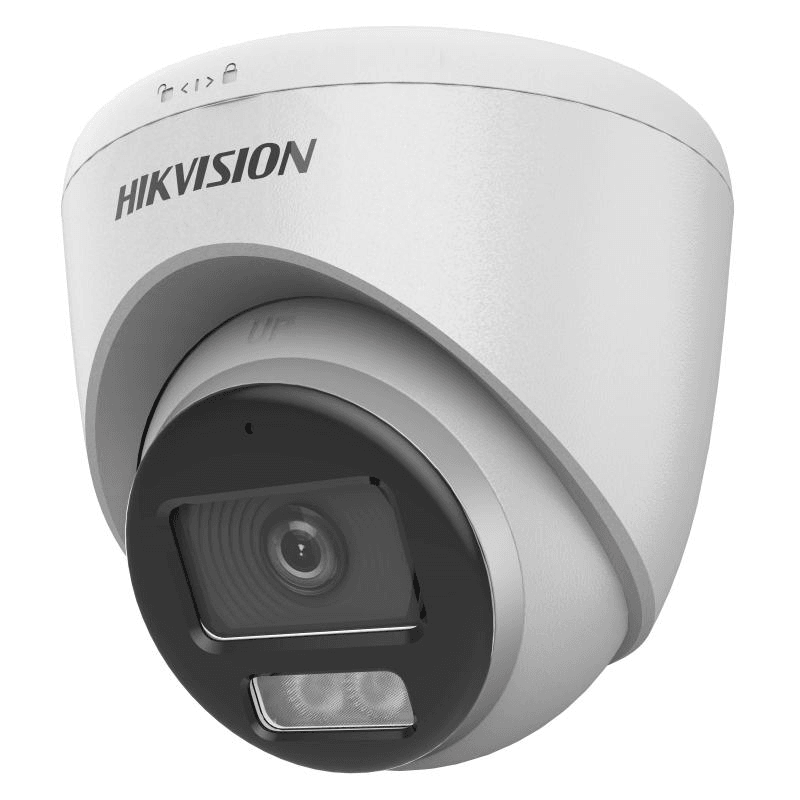

DS-2CE72KF0T-LFS is a 3K HD-TVI turret camera built for analogue installs where full-colour imaging and audio-over-coax are on the spec sheet. Maximum resolution is 2960 × 1665, a step up in detail over 1080p analogue when paired with a compatible Hikvision DVR.
Key specs
- Resolution: 2960 × 1665 (3K)
- Lens: 2.8 mm fixed
- Aperture: F1.0, enabling 24/7 colour imaging
- IR range: up to 40 m
- White light range: up to 40 m (Smart Hybrid Light)
- Audio: built-in mic, audio transmitted over coaxial cable to compatible Hikvision DVRs
- Video outputs: switchable TVI/AHD/CVI/CVBS from a single port
- Ingress protection: IP67
Why it matters on site
ColorVu's white-light illumination keeps full-colour detail at night instead of dropping to monochrome IR-only footage, which helps with identifying faces, vehicles and clothing on playback. The switchable TVI/AHD/CVI/CVBS output means this turret drops into most existing analogue DVR setups without recabling — useful on upgrade jobs where the coax run is already in place.
Audio over coax removes the need for a separate audio cable run, provided the connected DVR supports Hikvision's audio-over-coax feature. The 2.8 mm fixed lens gives a wide field of view suited to entrances, perimeters and retail floors, and the turret body works on both wall and ceiling fixings. IP67 housing covers outdoor and exposed mounting positions.
Note: full-colour and audio-over-coax functions depend on using a compatible Hikvision DVR recorder.
Specifications
- Image Sensor
- 3K CMOS
- Resolution
- 2960 (H) × 1665 (V)
- Frame Rate
- TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC
- Lens
- 2.8 mm, fixed focal lens
- Lens Mount
- M12
- Light Alarm
- Solid Light Alarm (White Light)
- Day & Night
- ICR
- WDR (Wide Dynamic Range)
- Digital WDR
- Angle Adjustment
- Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Supplement Light Type
- Smart, IR, White Light
- Supplement Light Range
- IR: Up to 40 m,White Light: Up to 40 m
- Noise Reduction
- 2D DNR
- Function
- Smart IR;Brightness;Sharpness;AGC;Anti-Banding
- Video Outputs
- Switchable TVI/AHD/CVI/CVBS
- Audio In
- Built-in mic
- Power
- 12 VDC ± 25%, max.5.2 W,*You are recommended to use one power adapter to supply the power for one camera.
- Protection Level
- IP67
- Dimensions
- Ø109.98 mm × 98.27 mm (Ø4.33" × 3.87")
- Weight
- Approx. 320 g (0.71 lb.)
- Brackets
- DS-1280ZJ-S, DS-1281ZJ-S, DS-1272ZJ-110-TRS
Technical Specifications
Frequently Asked Questions
Does this camera need a specific DVR to work with full-colour and audio features?
Yes — full-colour ColorVu imaging and audio-over-coax both require a compatible Hikvision DVR recorder to function as described.
What video formats does the DS-2CE72KF0T-LFS support?
It outputs switchable TVI, AHD, CVI or CVBS signals from a single port, so it can be matched to most existing analogue DVR systems.
What is the maximum IR and white light range?
Both the IR illumination and the Smart Hybrid white light reach up to 40 m for night imaging.
Is the camera suitable for outdoor mounting?
Yes, the housing is IP67-rated for protection against dust and water ingress, supporting outdoor and exposed installation positions.
